Walksnail Ascent VRX with Lite VTX Kit

Name: Walksnail Ascent VRX with Lite VTX Kit
Brand: CADDXFPV
SKU: C0CA-TZ106
Price: 134.99 USD
Availability: InStock

SKU: C0CA-TZ106

$134.99

Frequently Bought Together

Walksnail Ascent Lite Kit

$35.99 USD

Safe & Secure

Pay with Ease

Trusted Delivery

Fast, Free Shipping

30-Day Money-Back Guarantee

Hassle-Free Warranty

Lifetime Customer Support

Walksnail Ascent VRX with Lite VTX Kit

$134.99

Visuals & Core Performance

HD Video Decoding

Low Latency

2W Power

HD Decoding, Pure Flow

Equipped with a powerful core, the VRX supports 1080P/60fps HD decoding and high-frame-rate 720P/120fps fast decoding. It ensures a clear, smooth, lag-free image, maintaining your absolute edge in high-speed and competitive flight.

Clean Signal, Low Latency

Dual circular polarization and a low VSWR ≤ 1.3 help reduce signal loss and multipath interference for a cleaner RF link. Combined with end-to-end latency as low as 35ms, the VRX delivers fast, responsive video even in complex RF environments.

Extreme Long-Range Ready

Pairs with Ascent VTX systems. Higher output power helps extend range and maintain a stable, clear video feed.

Dual Antennas, Rock-Solid Connection

Signal drops are a thing of the past. Equipped with Dual Circular Polarized Antennas (≥97% efficiency), the Ascent VRX delivers a stable, unwavering link up to 6km away. Fly further, fly bolder, fly worry-free.

Compatibility & Control

HDMI

Easy OSD Setup

Multiple Channels

Universal Compatibility, Plug and Play

Compatible with any FPV goggles, monitors, or TVs with an HDMI port. True plug-and-play support makes multi-screen viewing easy for training, sharing, or race broadcasting.

Your World, Customized

Supports Canvas Mode for seamless OSD integration with mainstream flight controllers like Betaflight and INAV, giving you easy access to personalized settings and a tailored FPV interface.

Adaptive Frequency Hopping

Runs on 3 standard channels, with up to 8 channels in Debug mode. Frequency Hopping automatically scans and switches to the cleanest channel for stable, uninterrupted video.

Portability & Reliability

MicroSD Card Storage

Wide Voltage

Easy to Carry

Efficient Storage, Relive the Rush

Features a built-in SD card slot supporting up to 256GB of storage. Record HD flight footage with a single click, capturing every detail of your flights and making content creation effortless.

Wide Voltage, All-Weather Stable

Designed for reliable operation across a wide 7.4~25.2V input range. Helps maintain stable performance and effective thermal management during extended outdoor use.

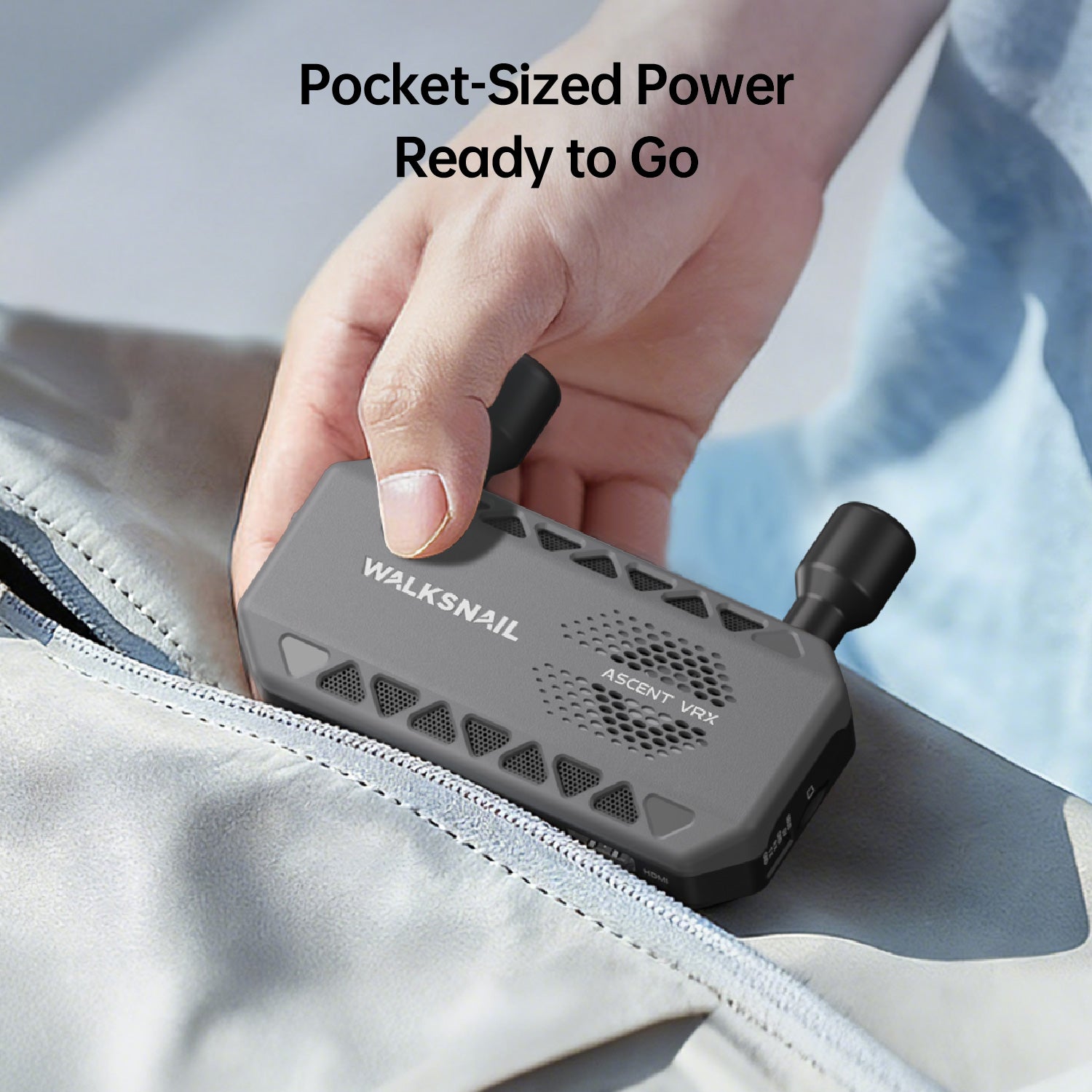

Pocket-Sized, Ultra-Portable

Pro-grade performance that fits in your palm. Weighing just 118g with a sleek, ultra-thin profile, the Ascent VRX is the ultimate travel companion for every pilot. Pack light, fly heavy.

In the Box

Ascent VRX

X 1

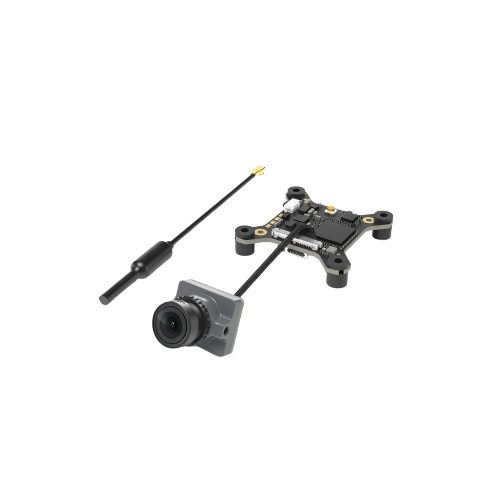

Ascent Lite VTX Kit

X 1

FAQ

Is Ascent VRX compatible with other digital VTX systems?

No. This VRX is designed exclusively for the Ascent series VTX to ensure optimal performance and stability.

Is the Ascent VRX available now?

The Ascent VRX is currently in pre-order status. Orders are expected to ship within approximately one month.

Can I use Ascent VRX with my FPV goggles or monitor?

Ascent VRX is compatible with FPV goggles, monitors, and displays that feature an HDMI input. Simply connect via HDMI for plug-and-play use.

How much latency should I expect during flight?

End-to-end latency can be as low as 35ms, measured in open, interference-free environments. Actual latency may vary depending on RF conditions and system configuration.

Can I record flight footage directly on the VRX?

Yes. Ascent VRX features a built-in SD card slot supporting up to 256GB, allowing one-click recording without the need for an external DVR.

Can I view flight data and OSD information?

Yes. Ascent VRX supports Canvas mode, allowing seamless integration with Betaflight OSD for real-time flight data display and parameter adjustments.
