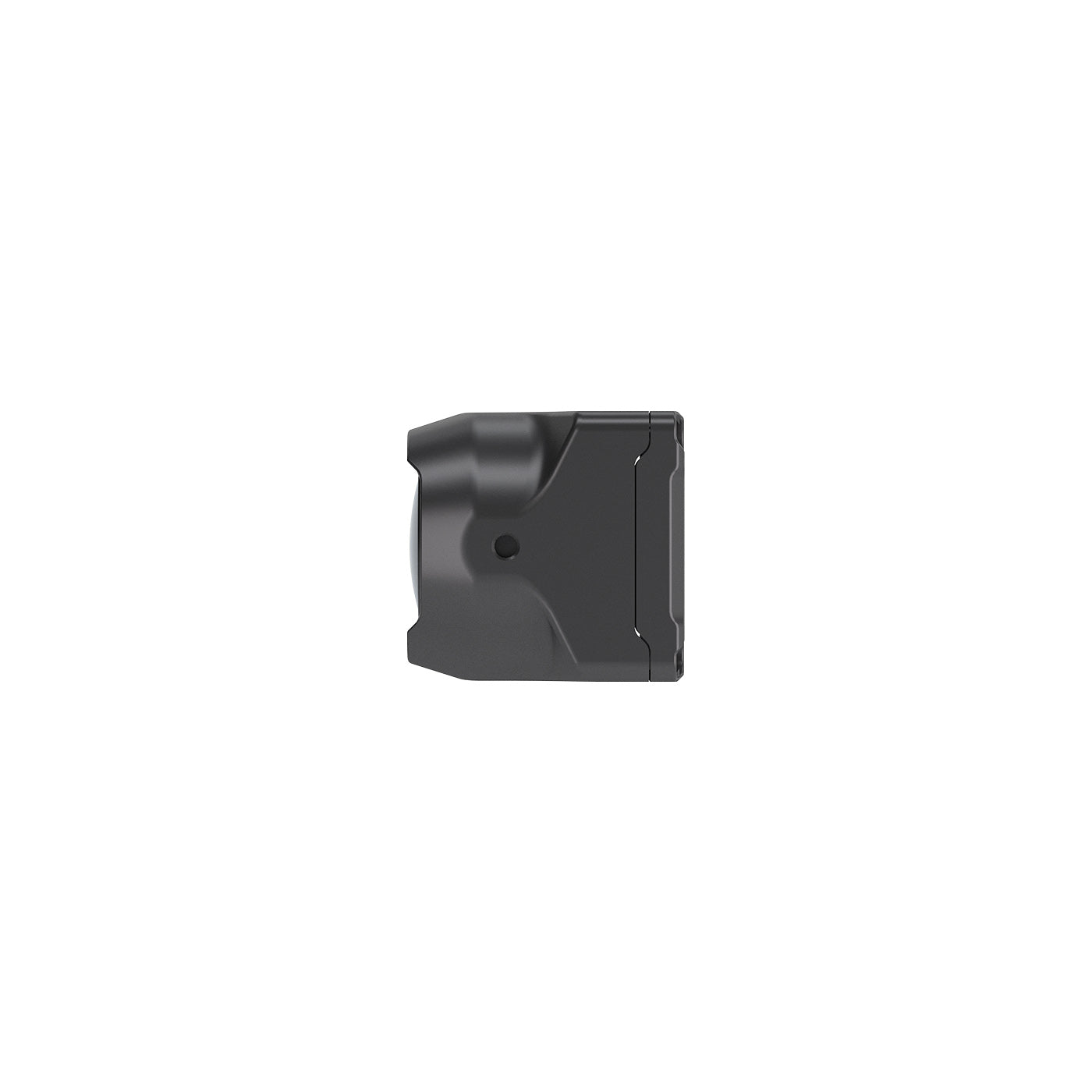

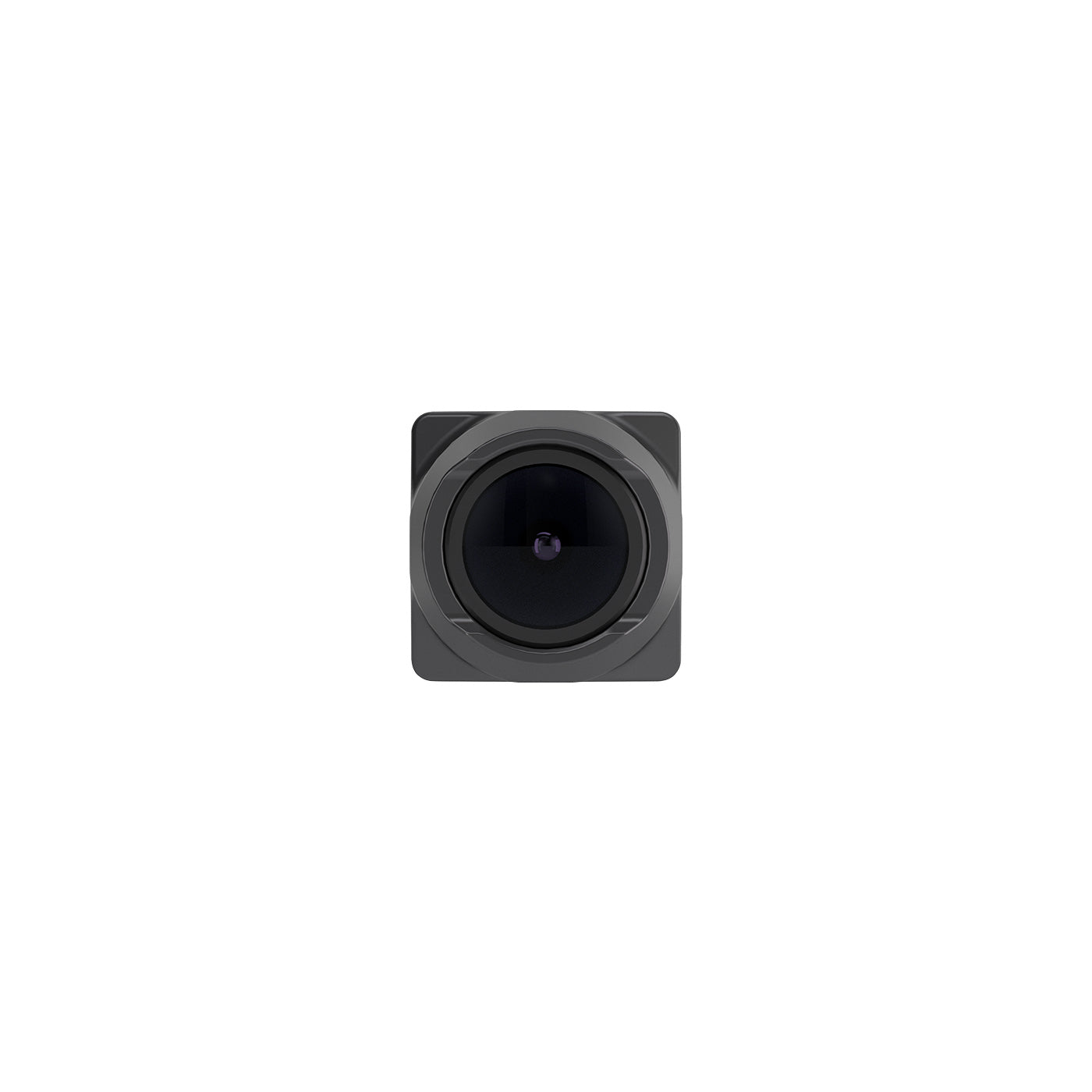

CaddxFPV Farsight Analog Camera
- 8× Fast Zoom with Instant Clarity: Quickly zoom in with up to 8× magnification to capture fine details and close-ups without losing image sharpness.
- Quick PWM Control with Reset Function: Easily control zoom through your flight controller. Instantly reset to 1× with customizable IO switches.
- Large 1/2-Inch Sensor with 4:3 Output: Equipped with a 1/2-inch sensor and 122.5° FOV, it delivers sharp, vivid, wide-angle views with excellent light sensitivity.
- Compact Size with Analog System Support: Measuring just 19×19mm, it supports CVBS output and works with most analog setups for flexible integration.
- Smart AI Zoom for Precision FPV: Enjoy crystal-clear image control with smooth, real-time AI-assisted zoom—ideal for racing, scouting, and professional use.
Industry-Leading Smart Zoom For FPV
Take your FPV flying to the next level with smart zoom. Get crystal-clear, precise zoom adjustments—Whether you're racing or zooming in on faraway shots. AI-powered for smooth, real-time action.
8x Fast Zoom
Zoom in fast with 8x magnification for super sharp details and instant clarity. Perfect for fast action and getting clear, close-up shots in the moment.
Quick PWM Control
Use flight control to output PWM signal to achieve zoom operation Reset control: High magnification quickly switches to 1x magnification, and resets through IO defined switches.
Uses 1/2 Inch Image Sensor
1/2 inch image sensor improves light sensitivity for sharper, vibrant visuals. With 122.5° FOV and 4:3 output, enjoy a wide, clear, distortion-free view.
Compact and Light
Only 19mm×19mm, No compromise on performance despite its compact form.
Supports Analog Output Function
With CVBS output, it works seamlessly with the majority of analog systems available.
Applicable Scenarios
The Farsight analog camera excels in complex environments, delivering clear and stable visuals for FPV flights, wildlife observation, industrial inspection, and emergency search and rescue missions.
| Specifications | |
| Model | Caddx Farsight |
| Image Sensor | 1/2 inch |
| Illuminance | 0.01Lux |
| Focal Length | 2.2mm |
| FOV | 122.5°(H) x 92.2°(V) x 155°(D) |
| Horizontal Resolution | 1500TVL |
| Aspect Ratio | 4:3 |
| Zoom Ratio | 1-8X |
| Zoom Mode | Connect to FC, PWM Control |
| Video Interface | CVBS |
| Power Supply Range | 9~24V |
| Power Consumption | <2w |
| Operating Temperature | -20℃~60℃ |
| Dimensions |
Camera: 19x19x19.5mm AI Box: 33.5x33.5x12.35mm |
FAQ
When will the product be shipped?
It will be shipped within 48 hours after the order is placed.
How fast is the zoom process?
During the zooming process, it is quick and smooth, without the need to wait for the focus and zooming process as with traditional zoom lenes.

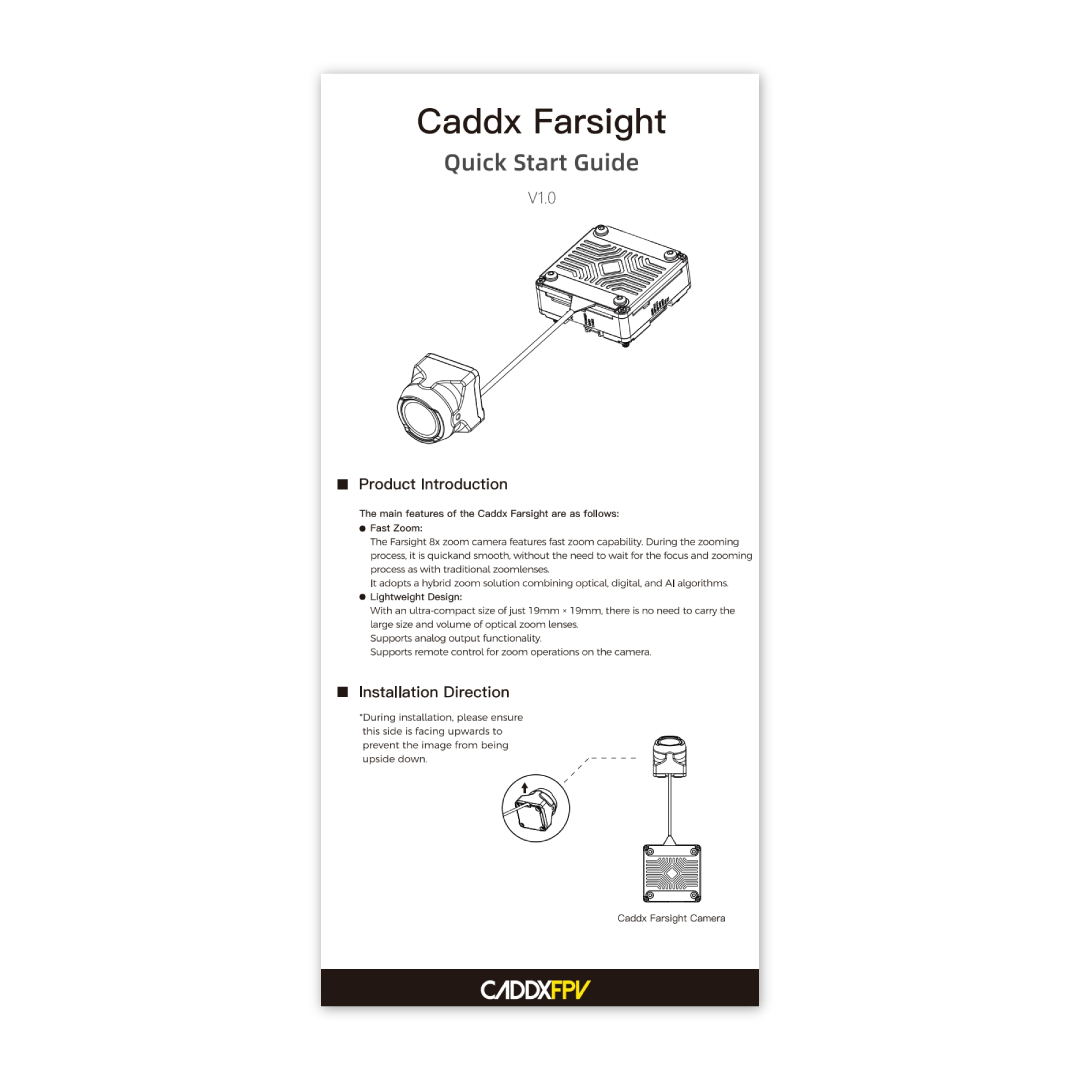

Are there any installation precautions?
During installation, please position the coaxial cable interface facing upwards to prevent the image from being upside down.
How do I use the zoom function?
The zoom operation is controlled via PWM signals output by the flight controller.
Is the VTX included?

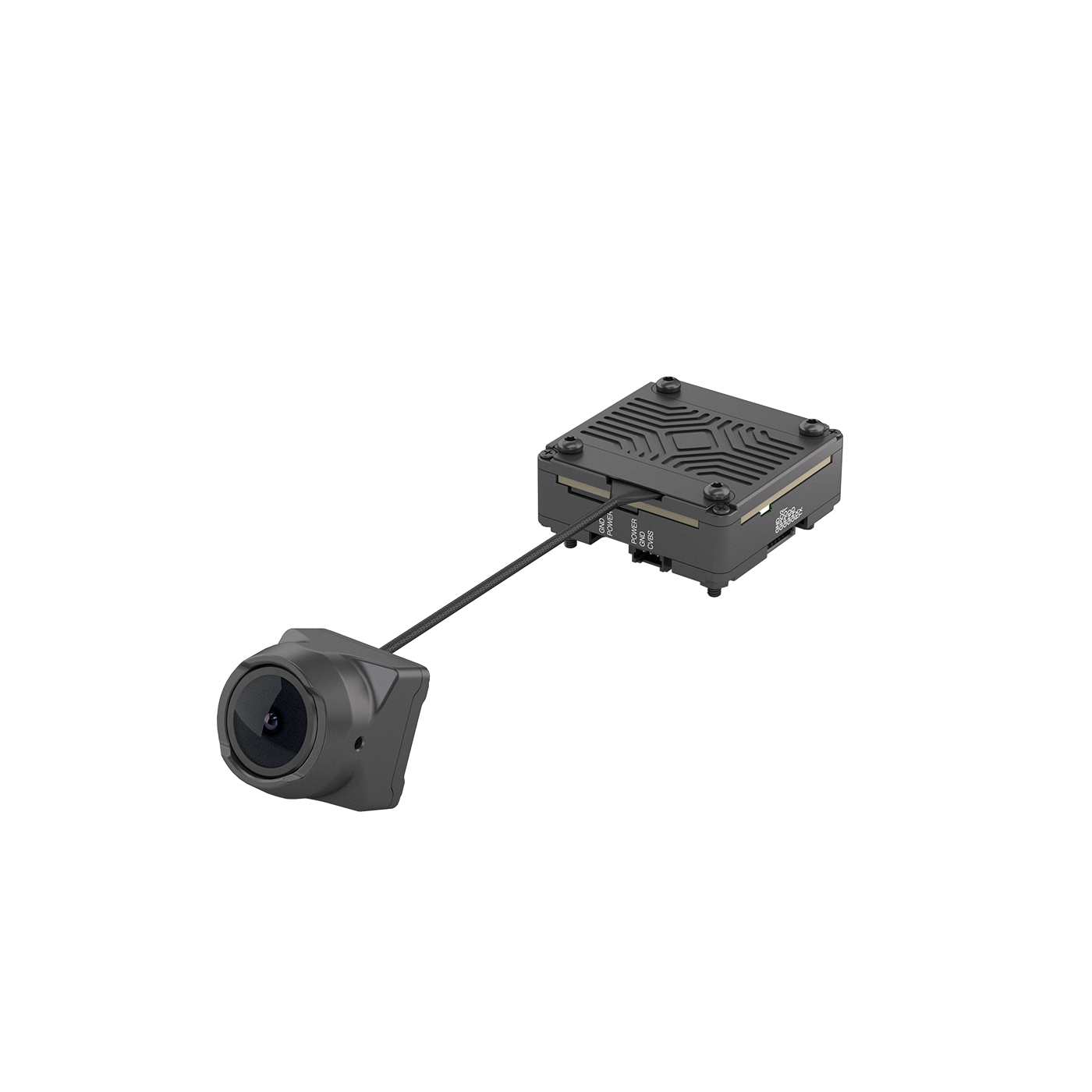

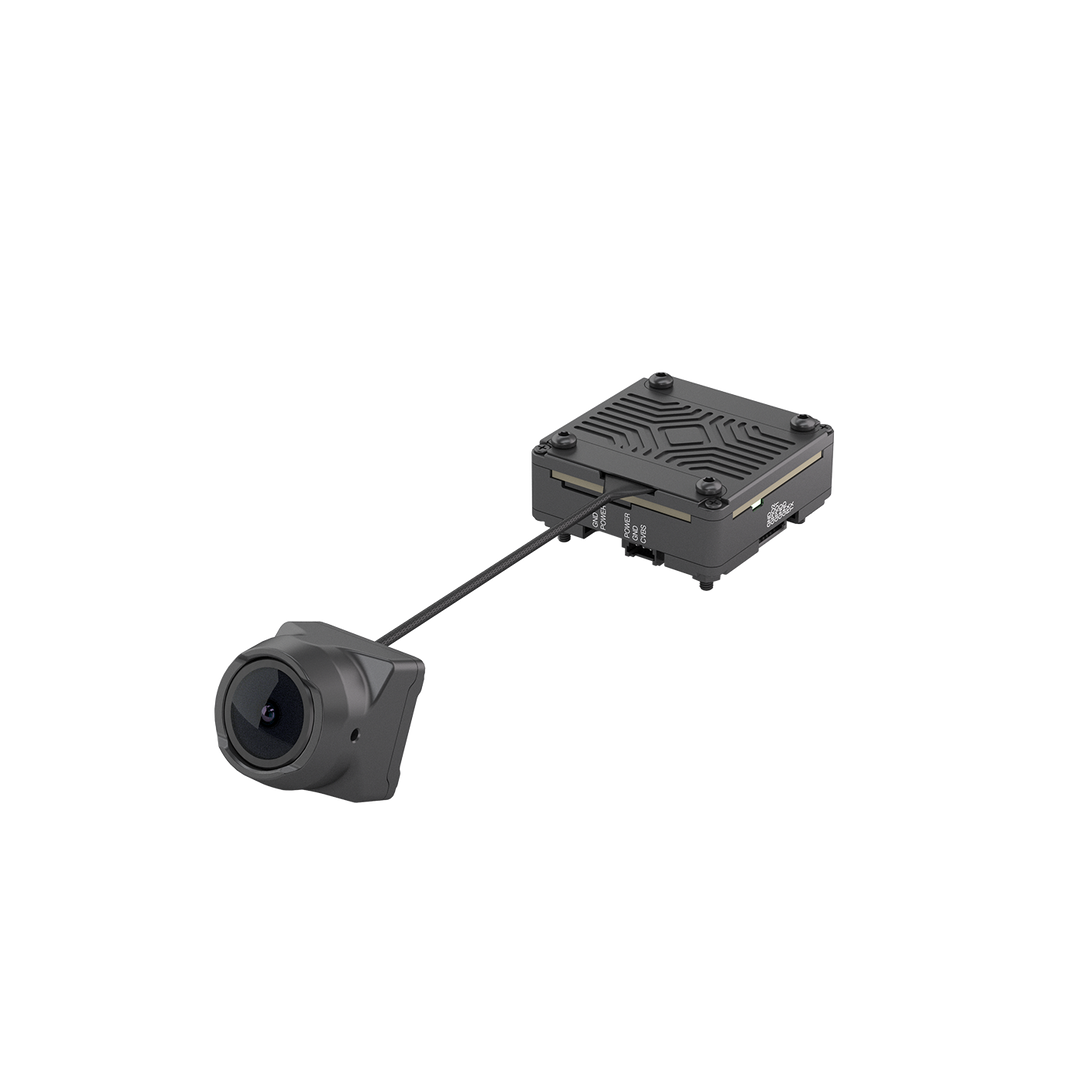

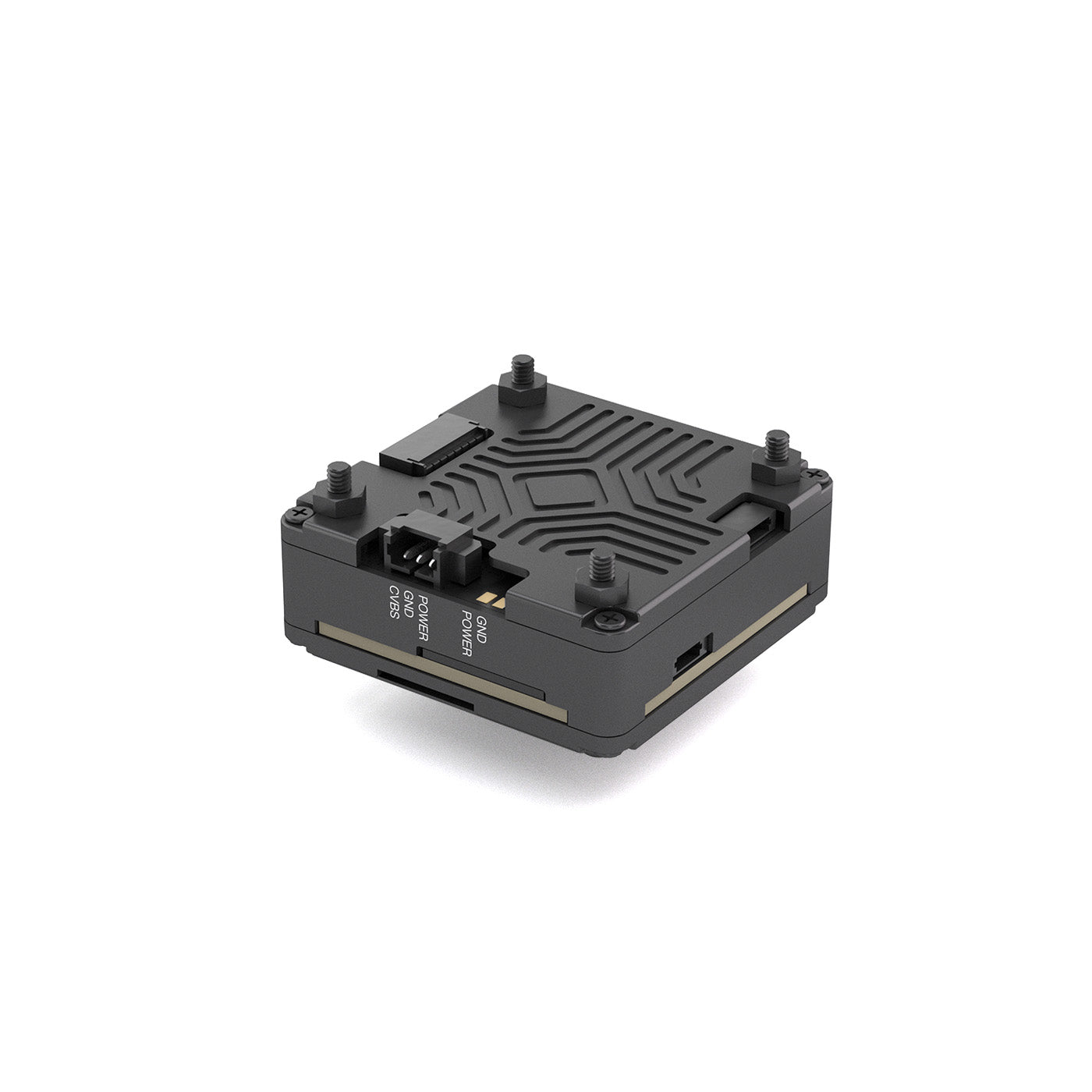

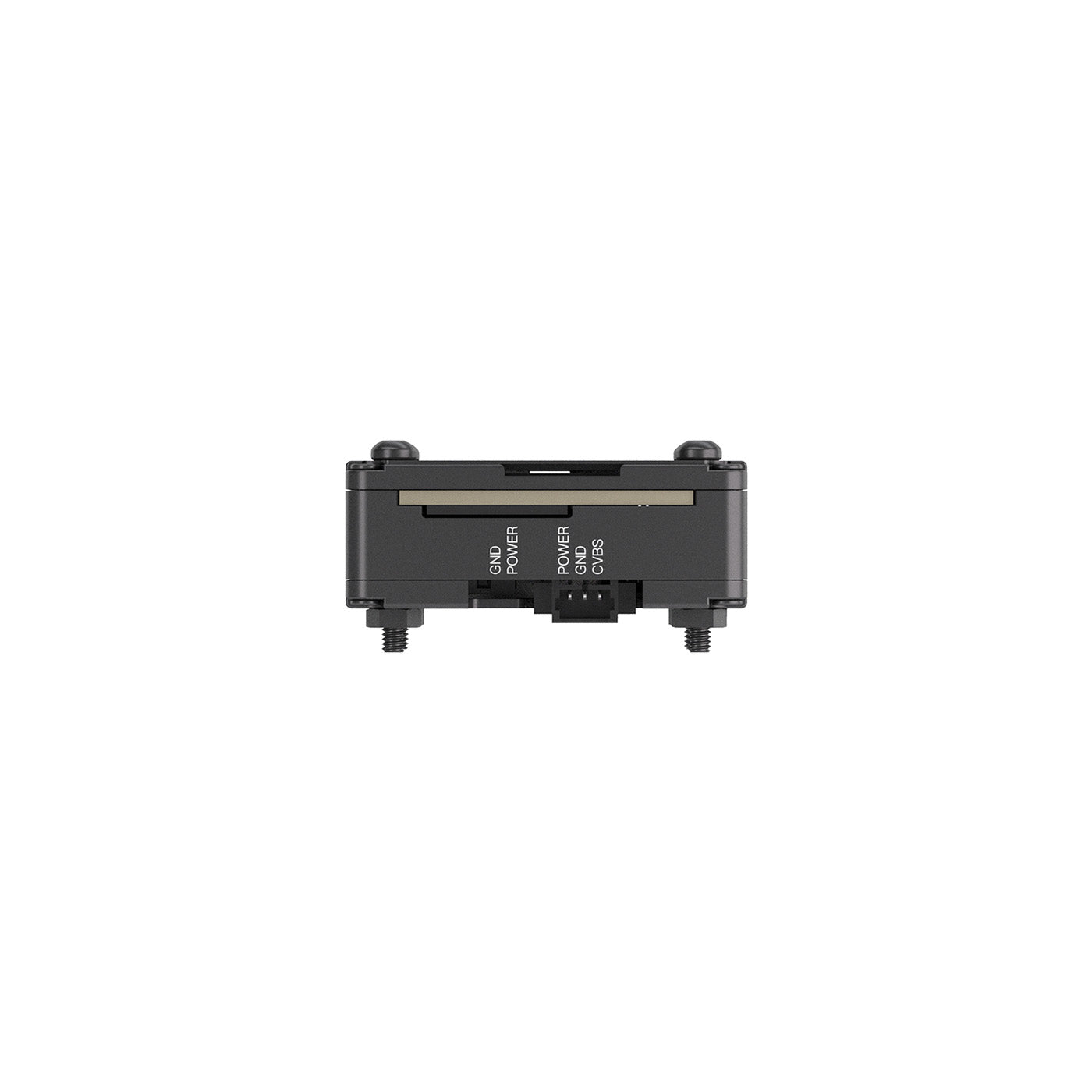

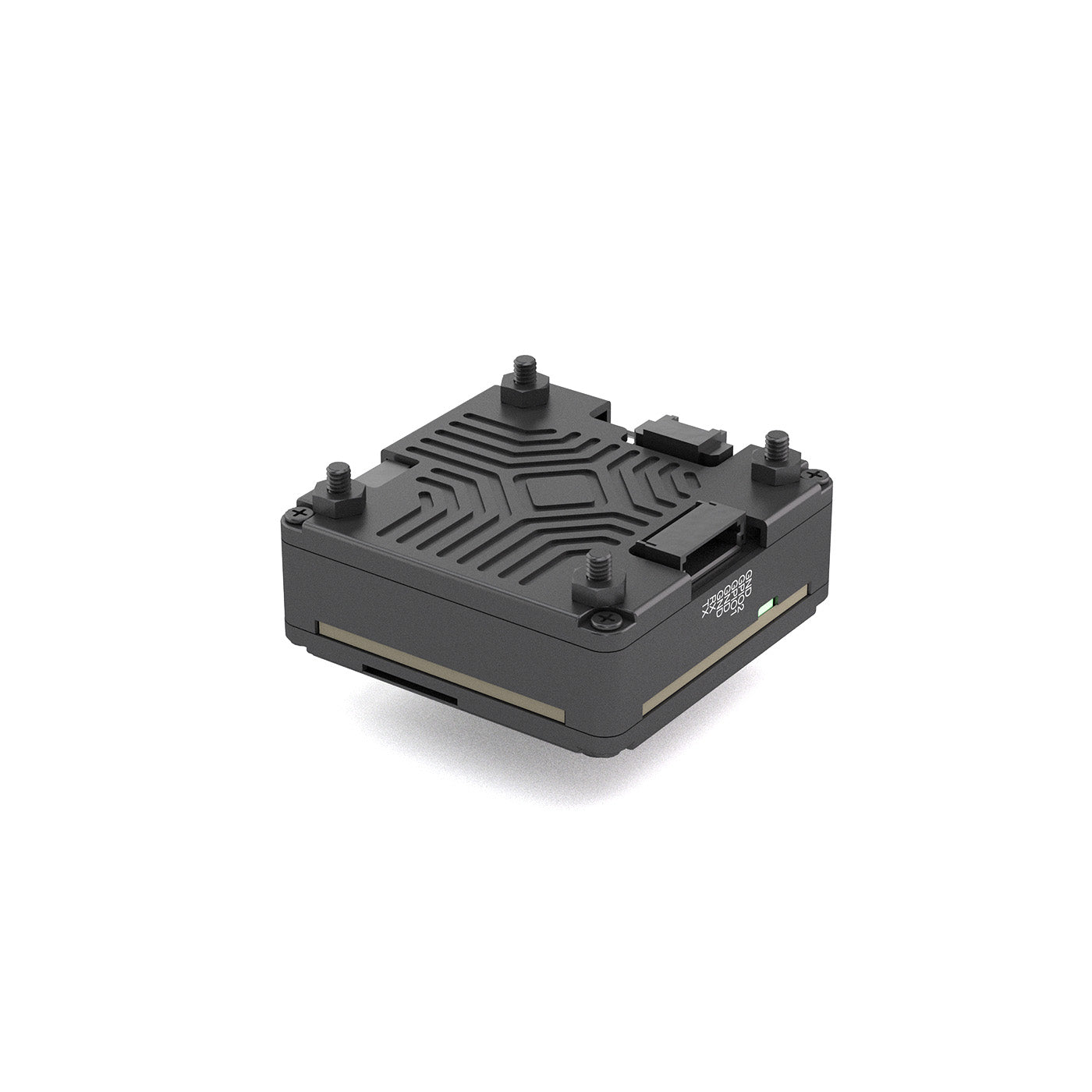

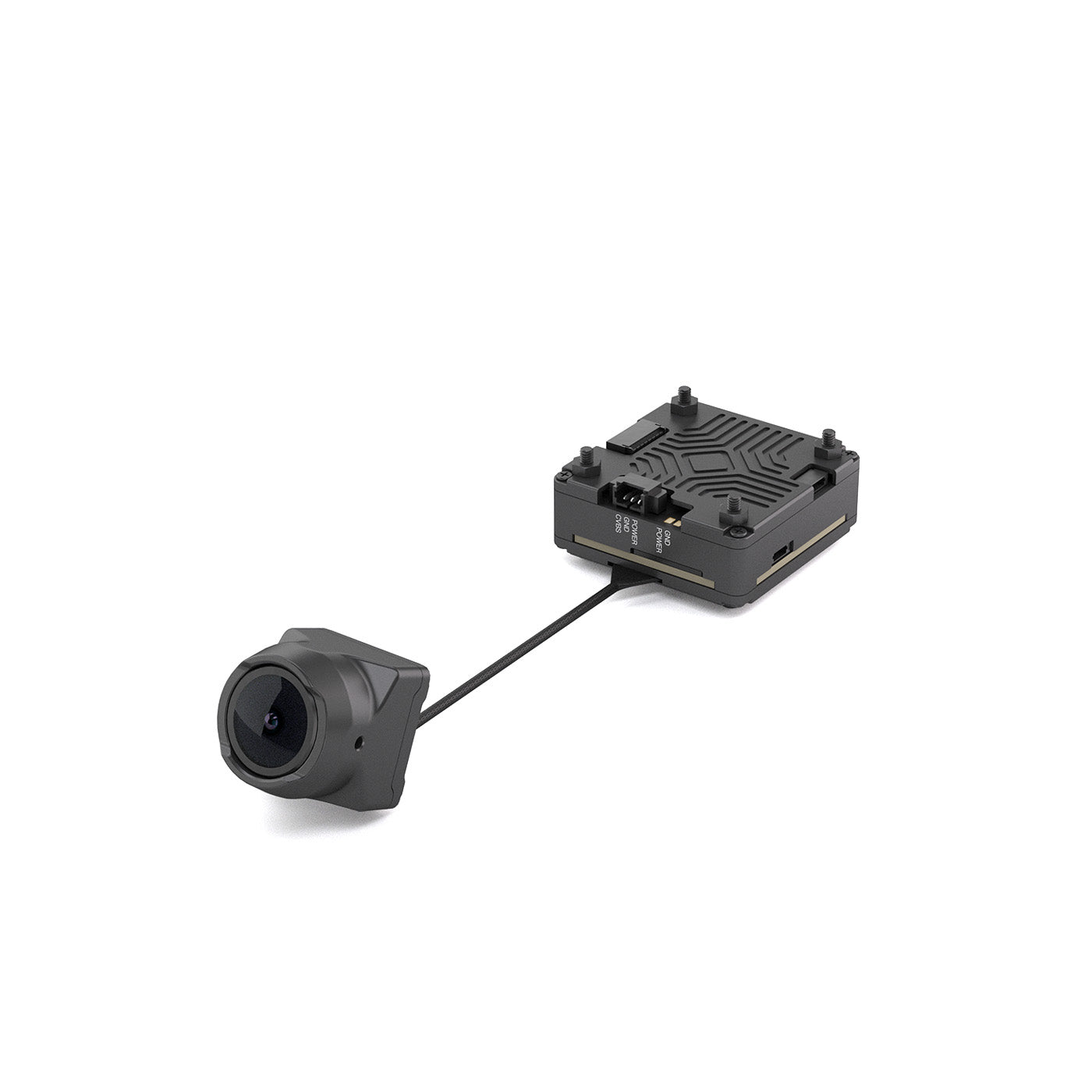

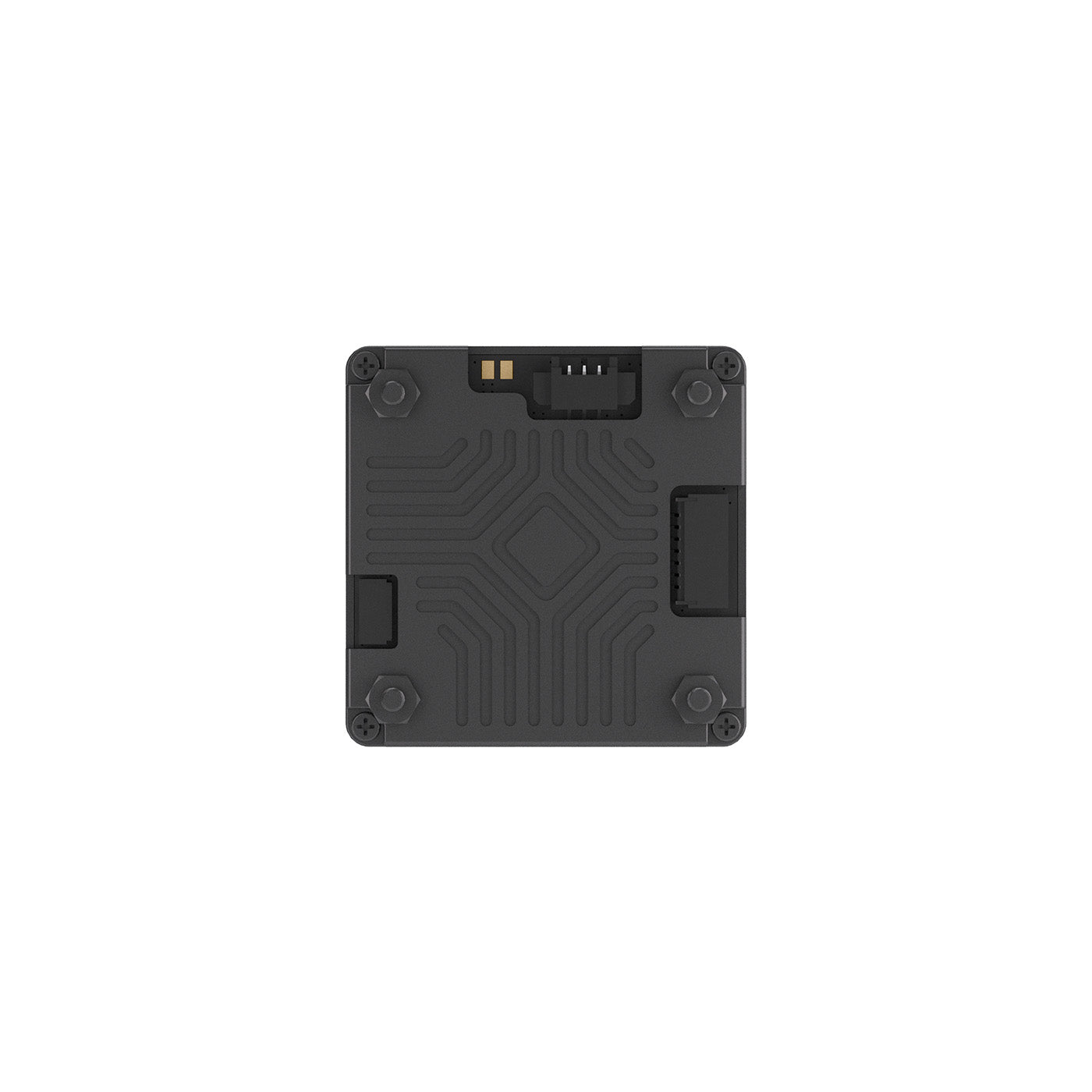

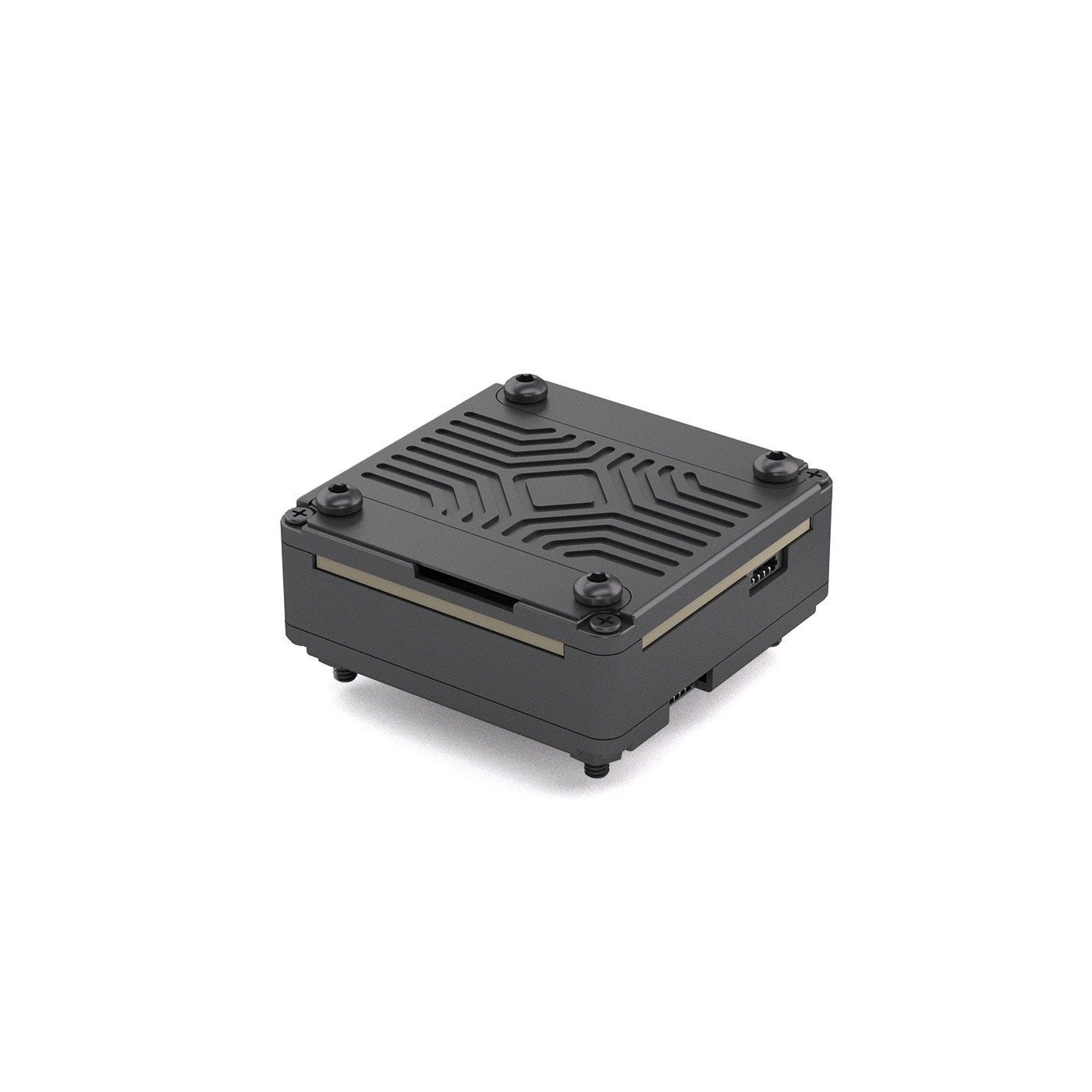

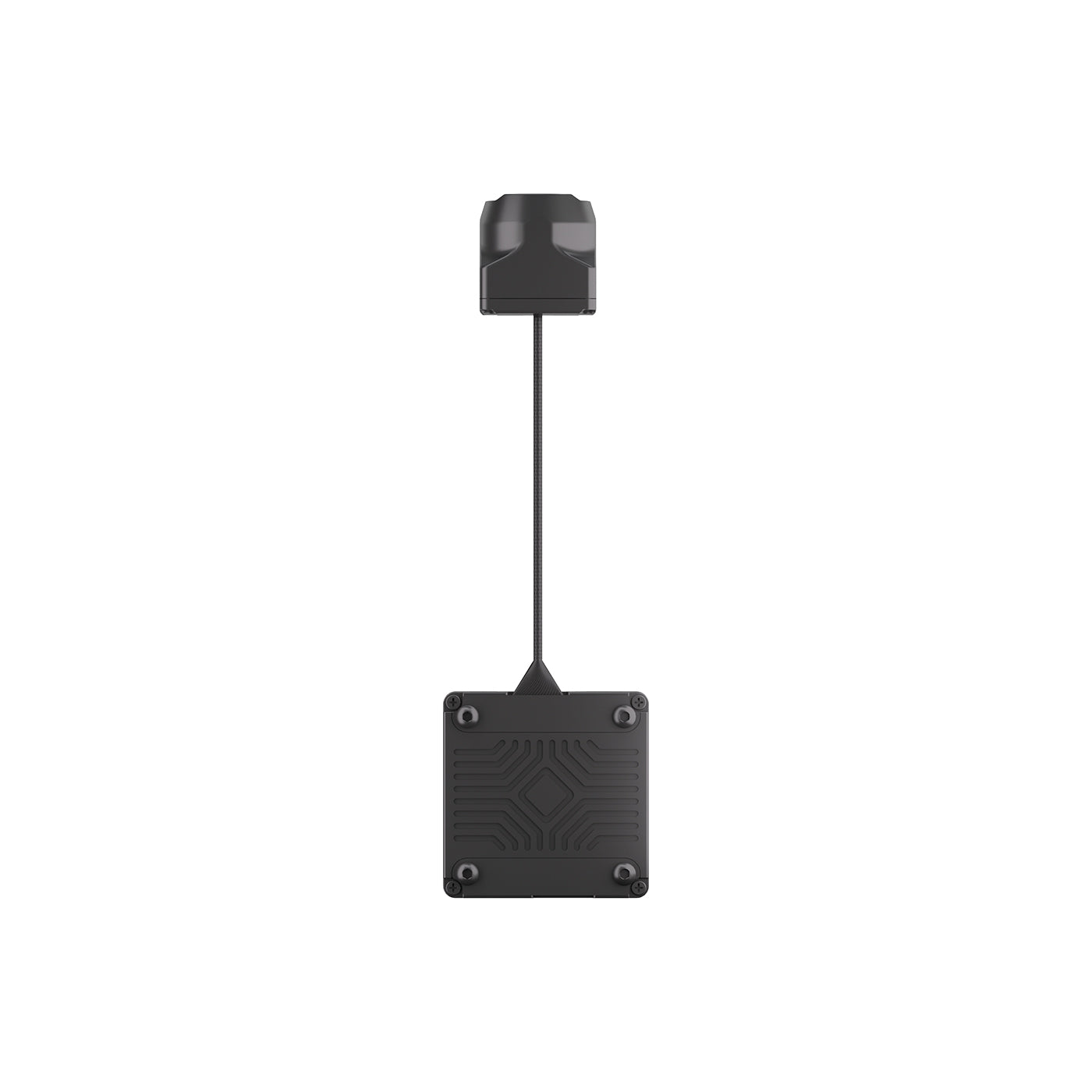

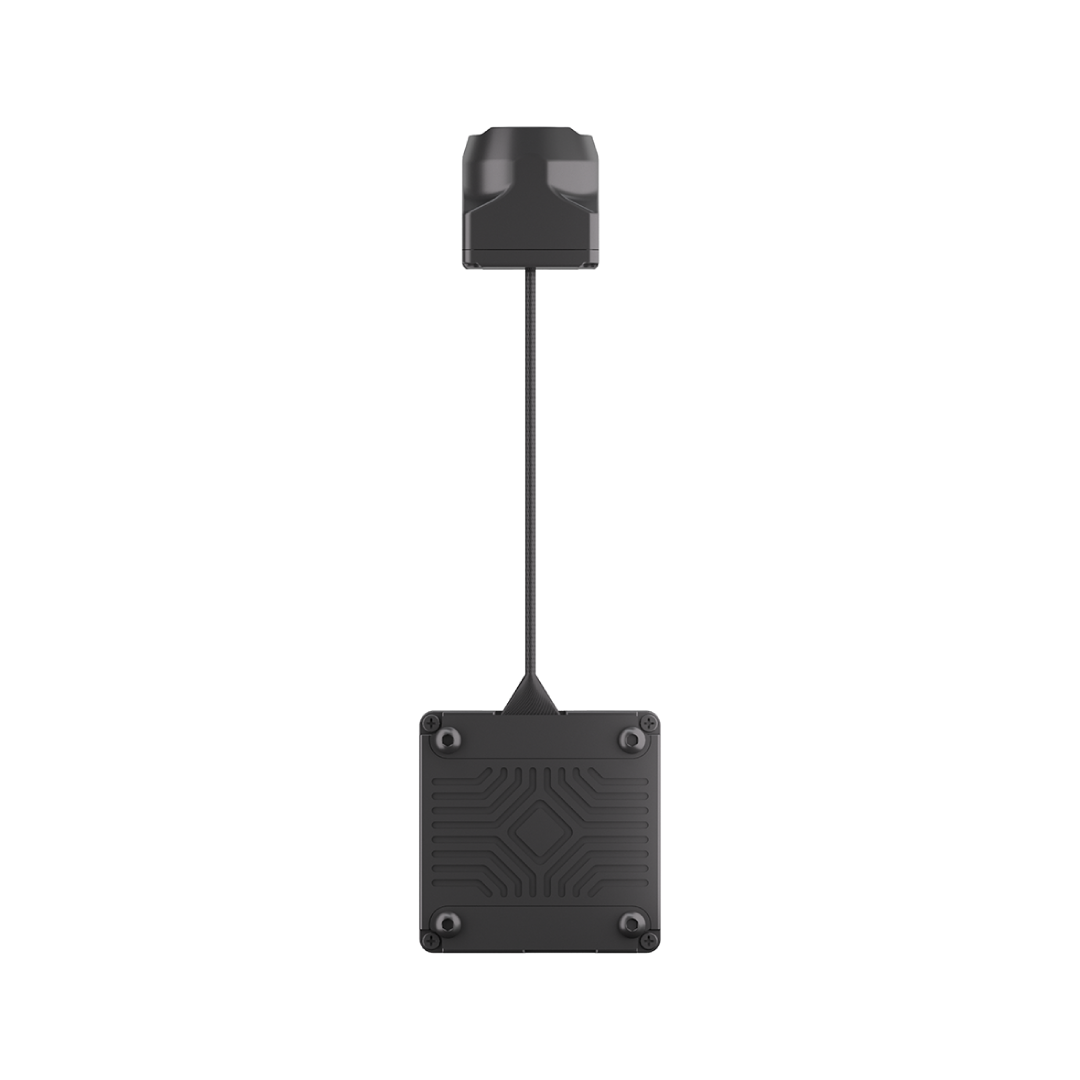

The square box shown in the picture is the AI box, which automatically adjusts image clarity based on lighting conditions.
