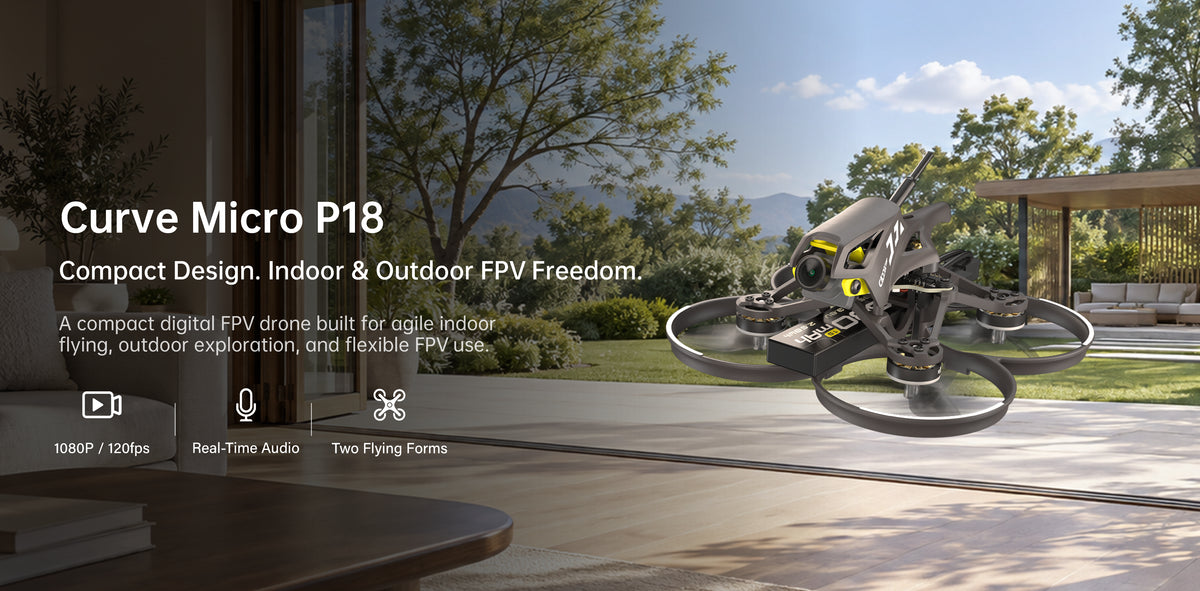

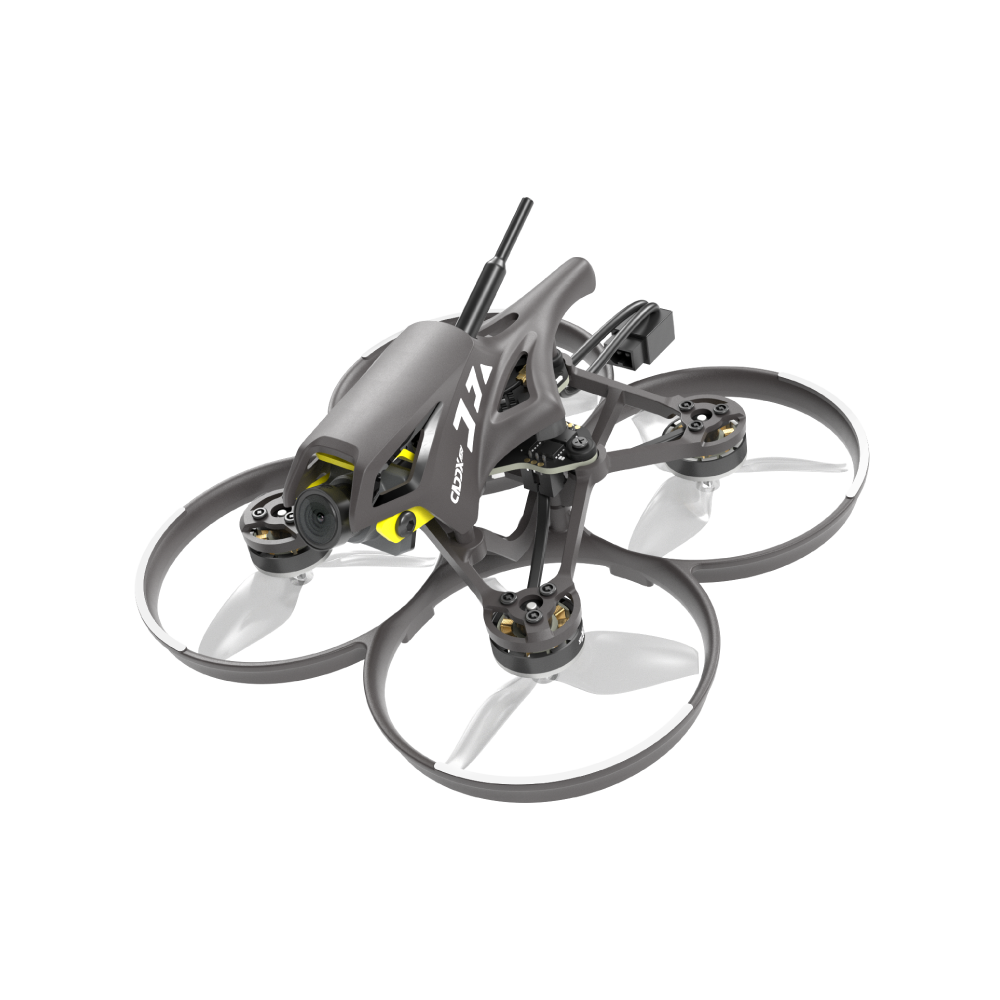

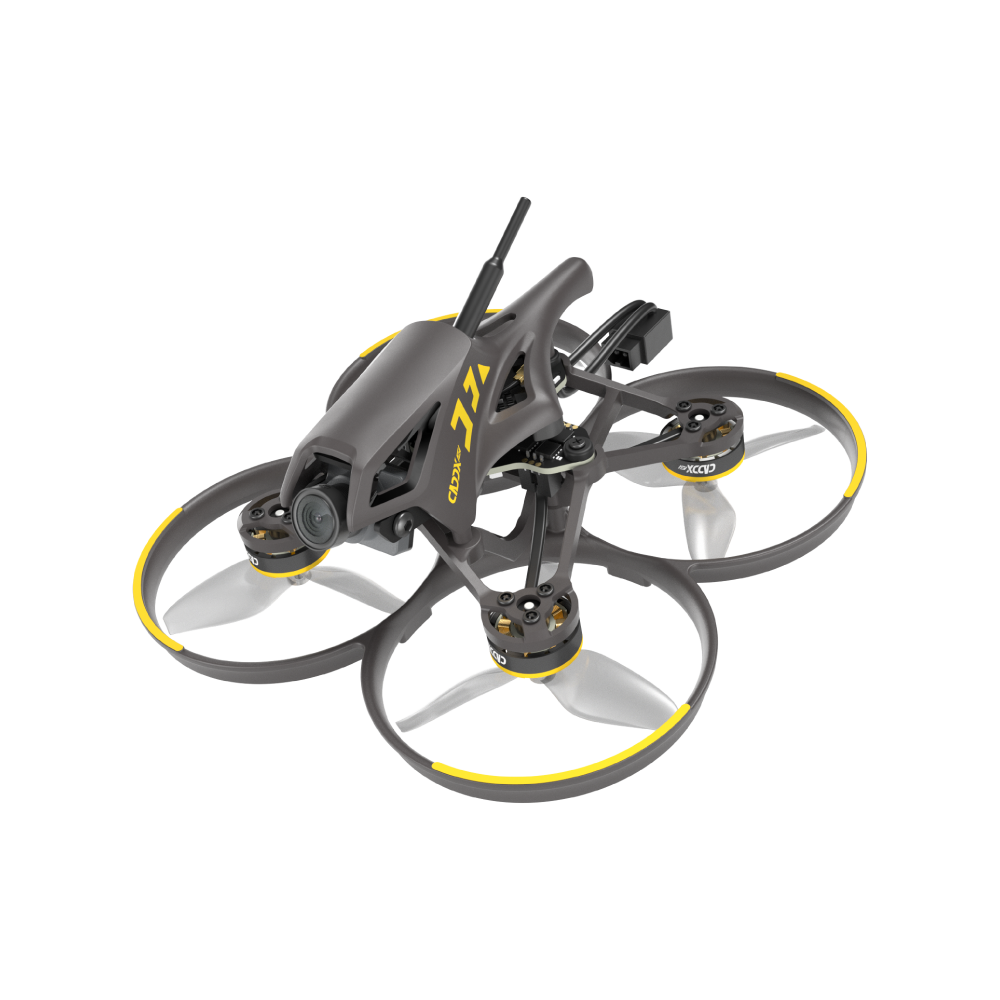

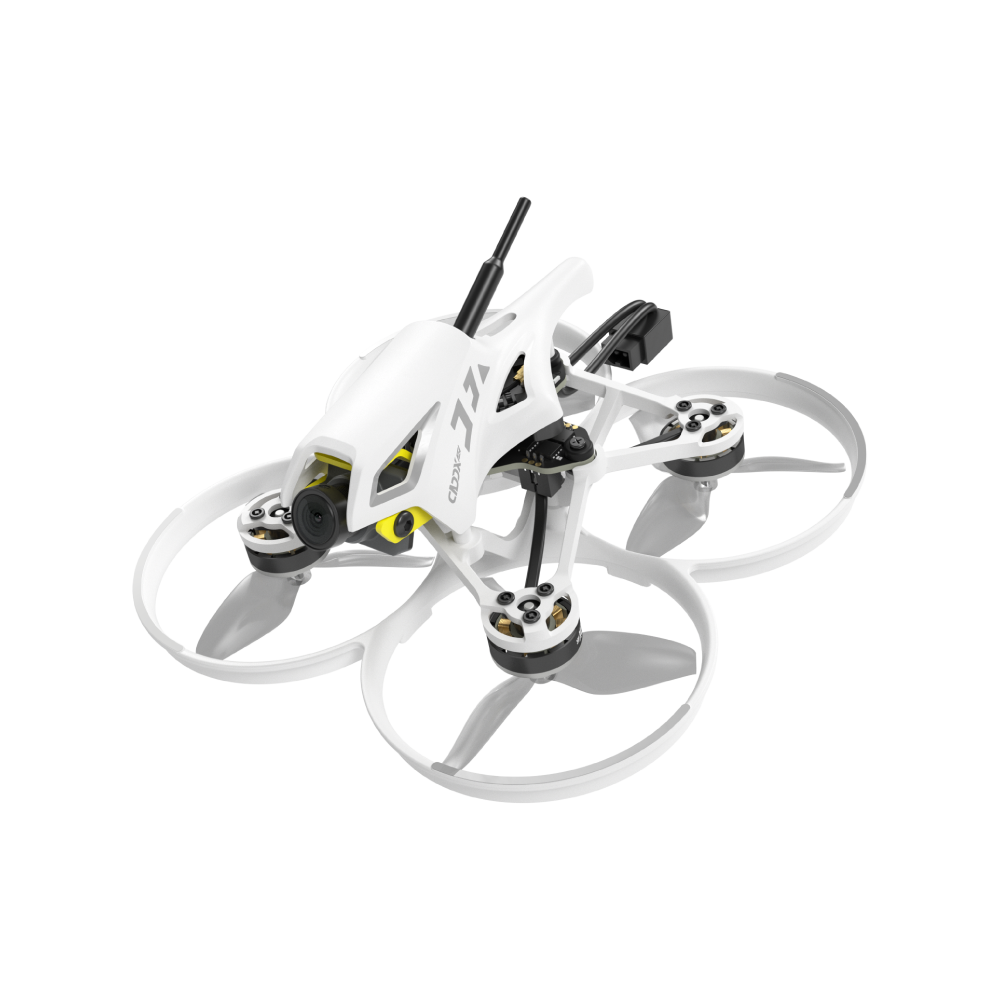

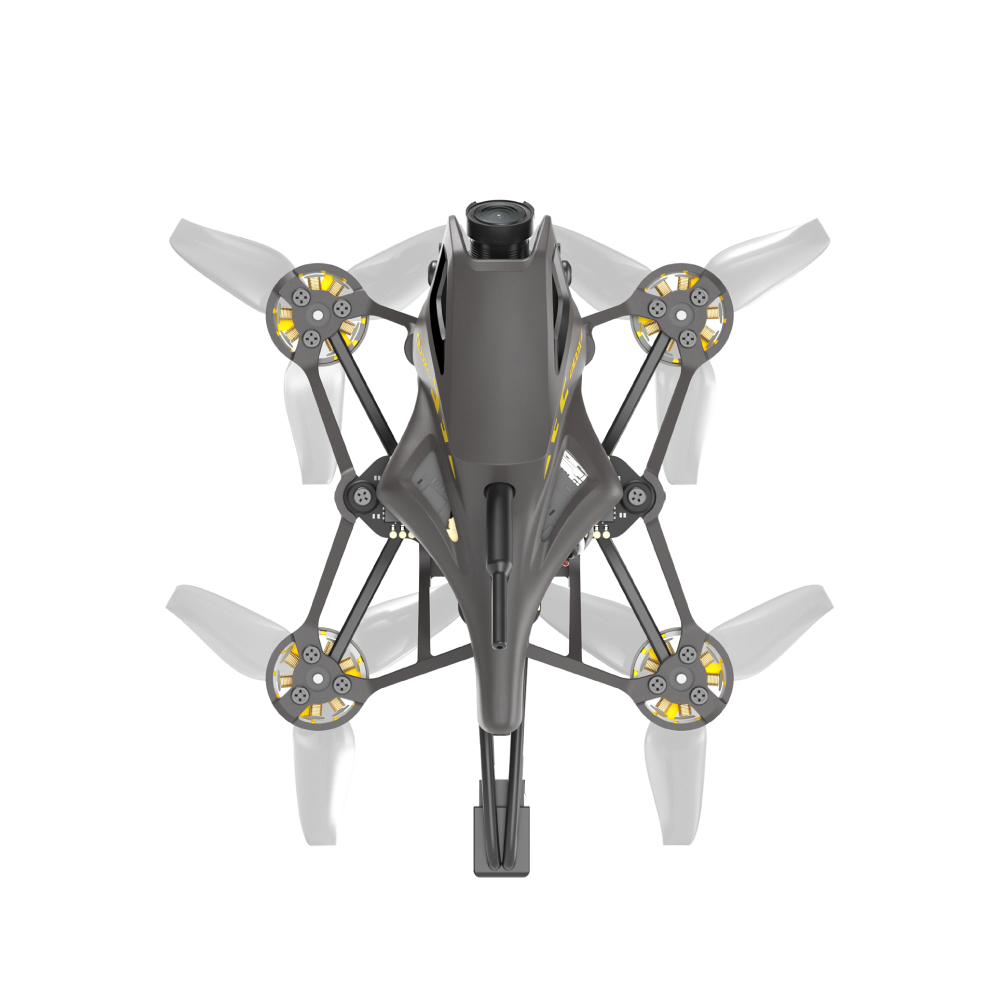

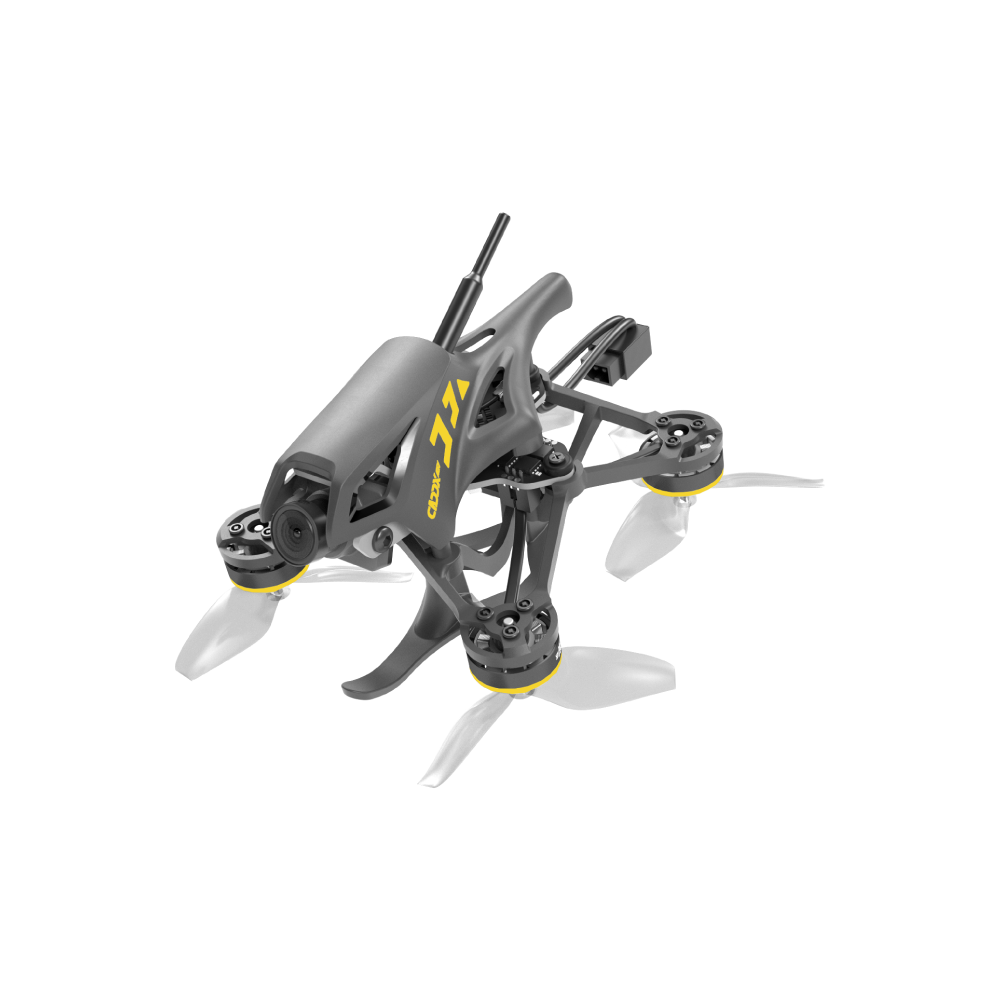

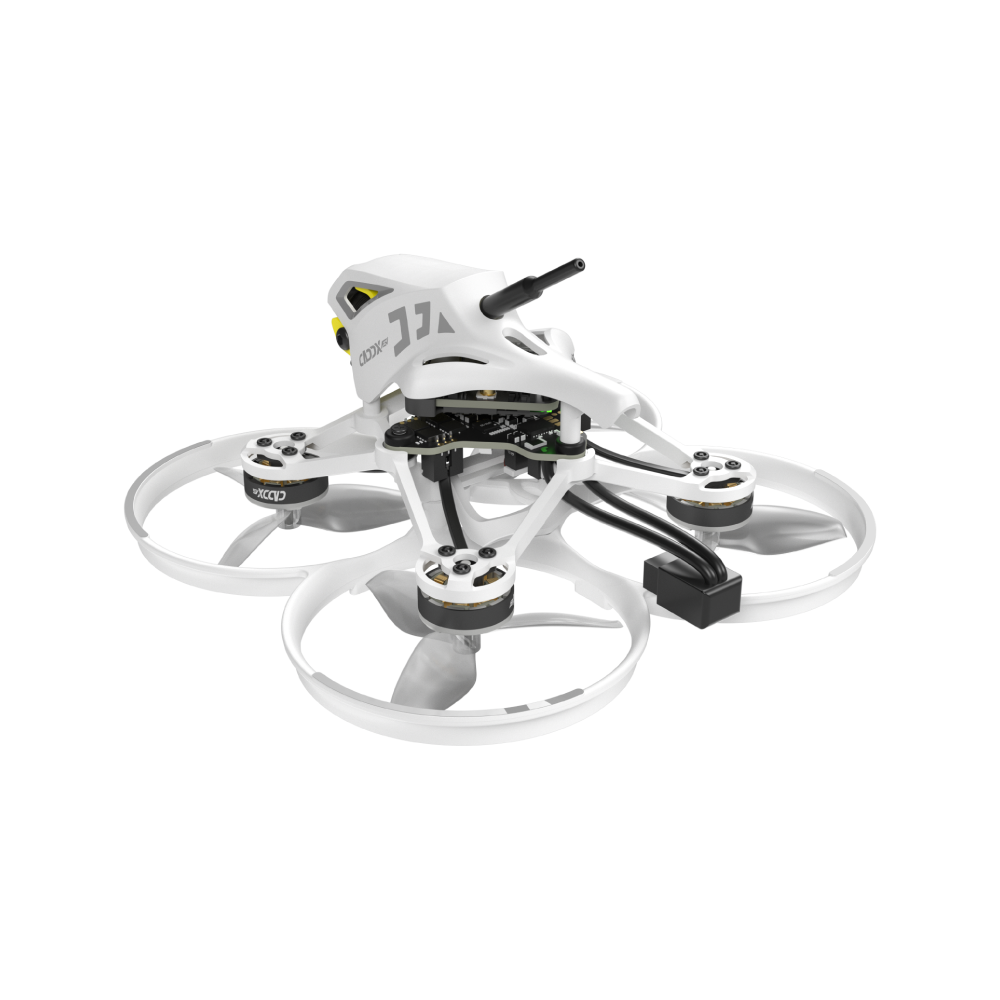

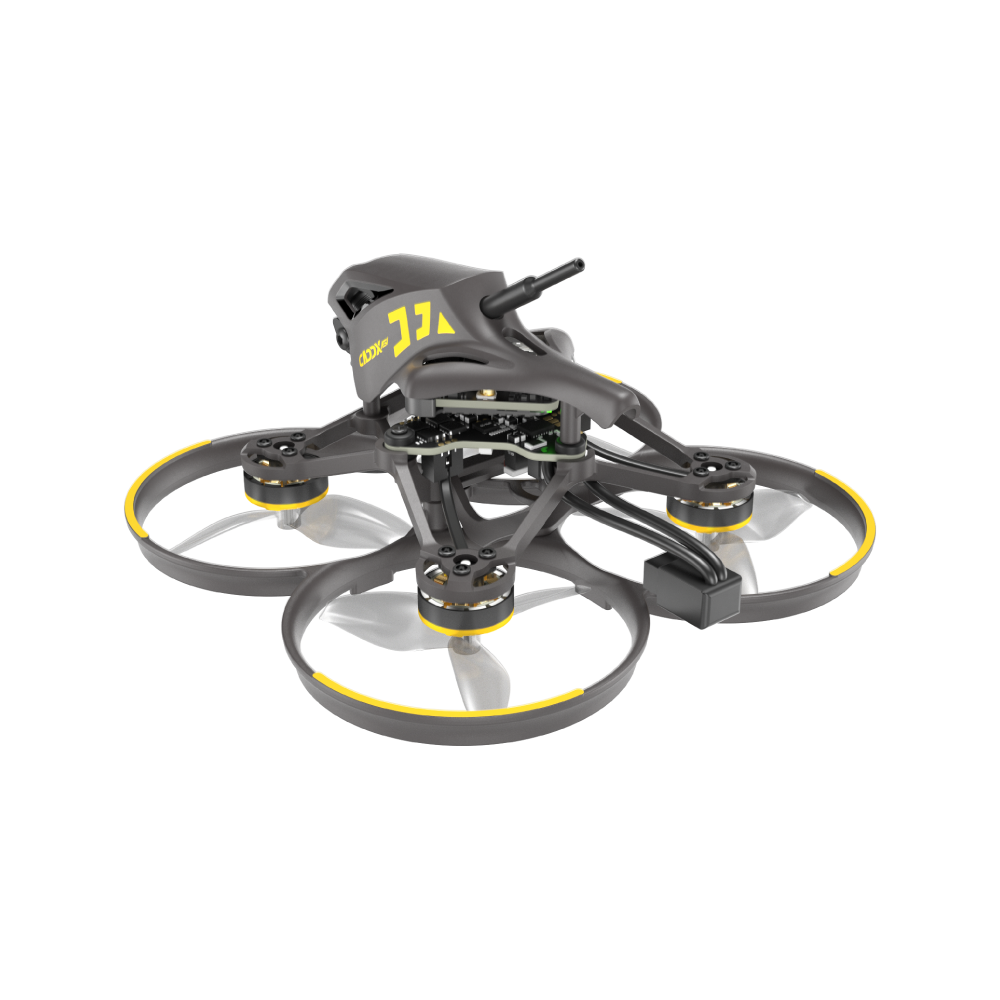

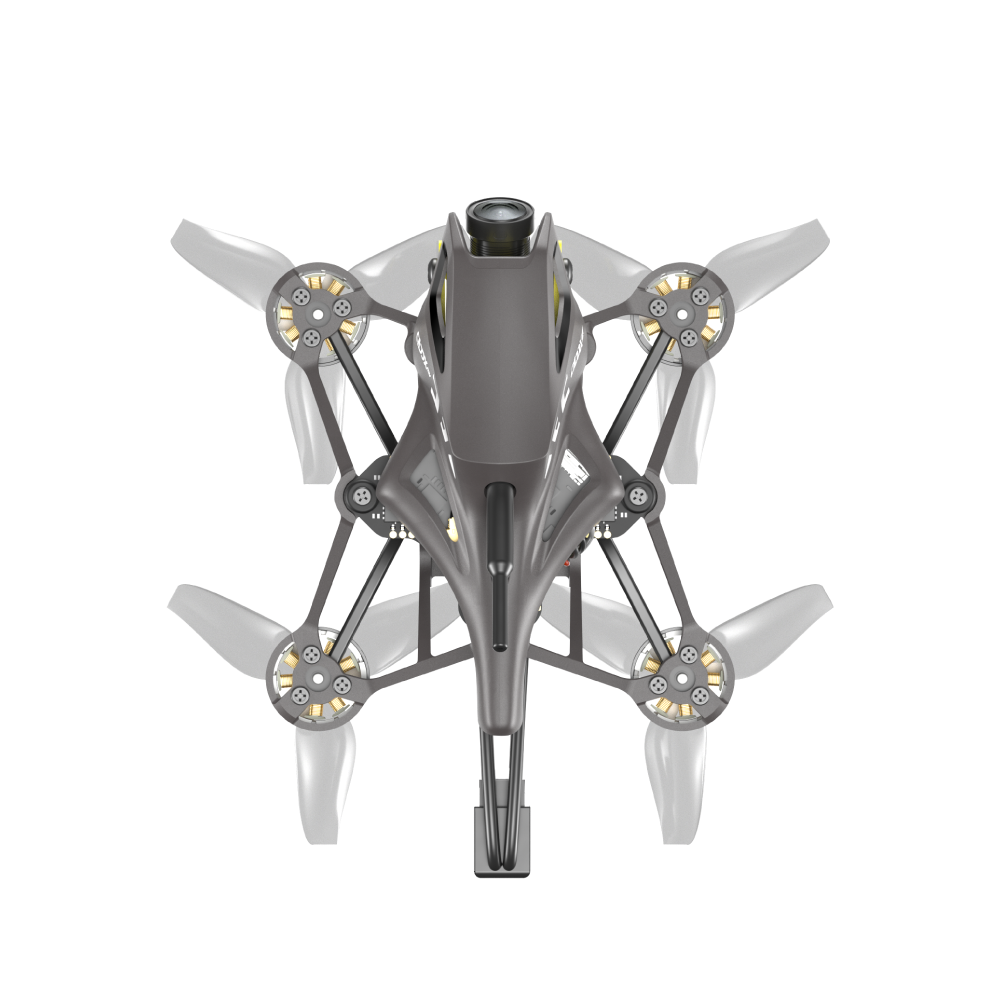

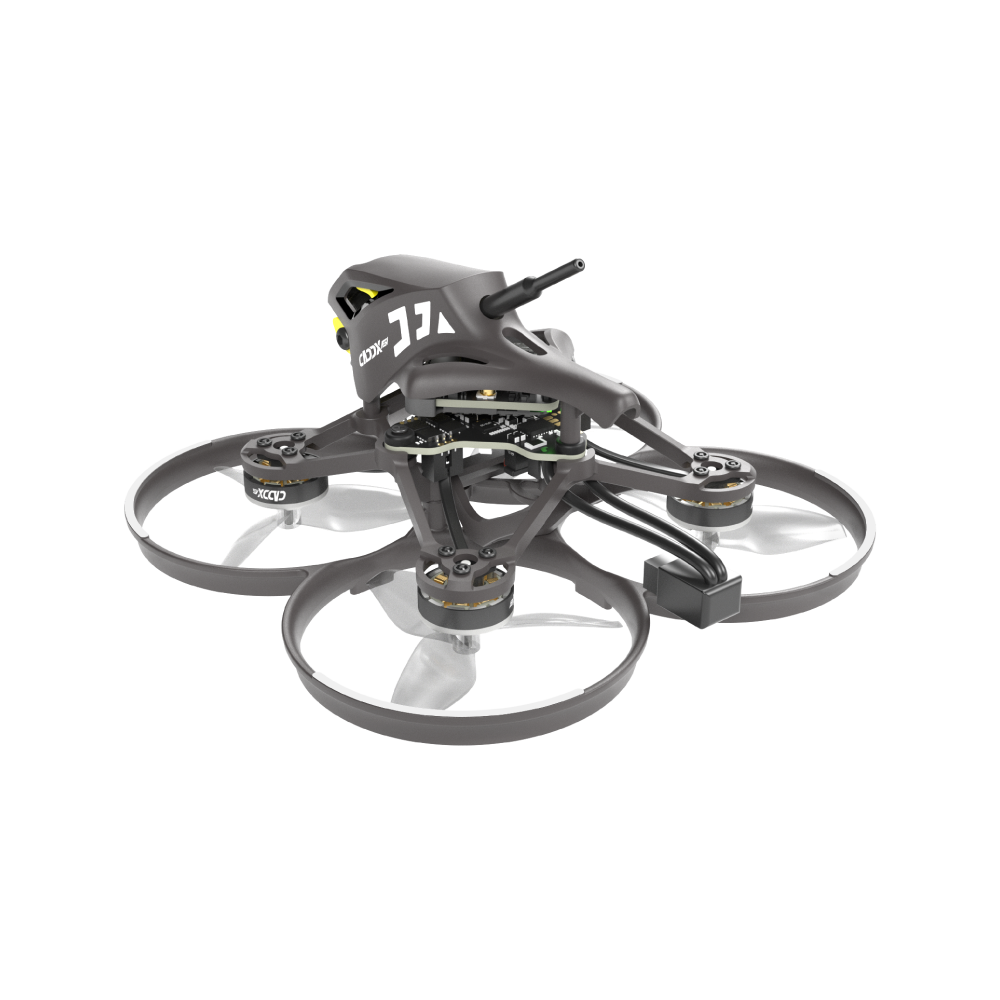

CaddxFPV Curve Micro P18 HD Tiny Whoop FPV Drone
- Immersive HD FPV Experience: The Curve Micro P18 digital FPV drone features a built-in Ascent Lite+ VTX with 1080P video up to 120fps, a 147° wide FOV, and real-time audio for an immersive HD FPV experience. Jello Suppression helps reduce vibration distortion for smoother footage during dynamic flying
- Digital HD Video Transmission: With up to 500mW output and approximately 35ms average video latency, the Ascent Lite+ VTX supports digital FPV video transmission for indoor flying, freestyle, and general FPV use. P18 integrates directly into the Ascent HD FPV system and works with compatible Ascent goggles and receivers

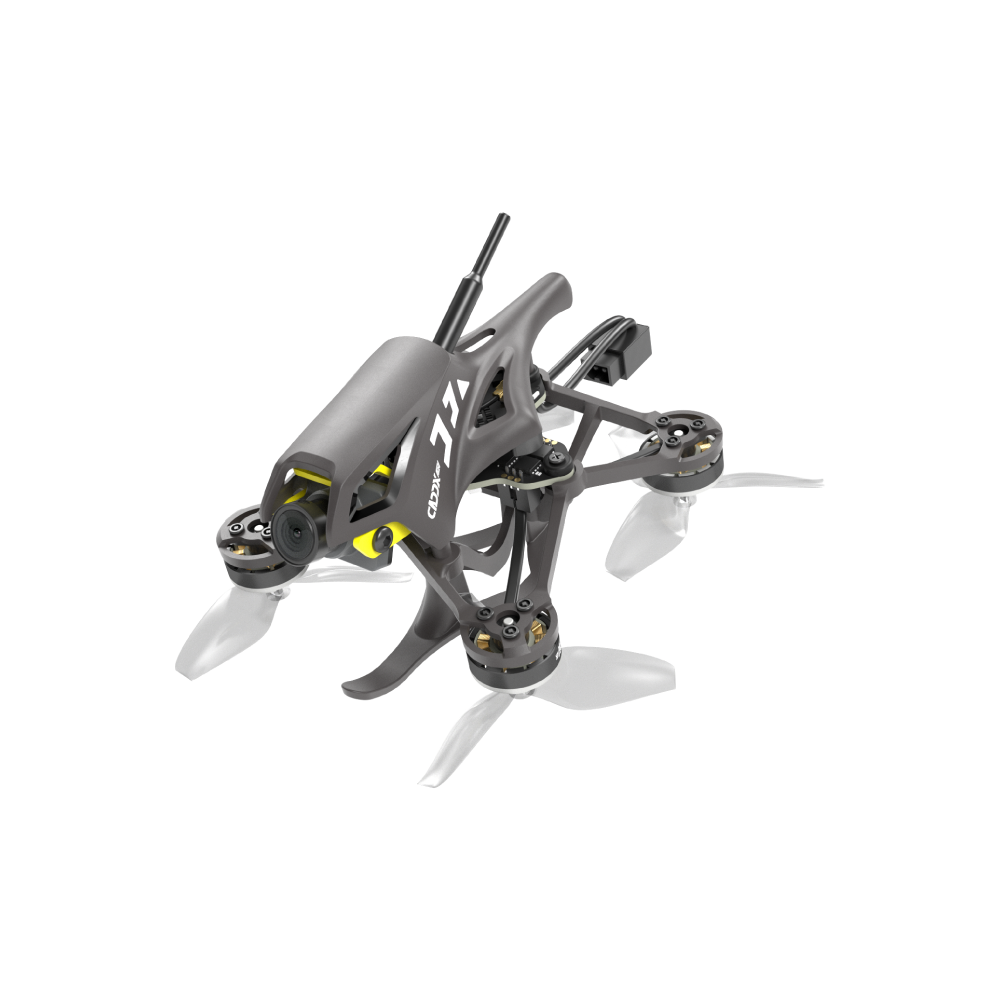

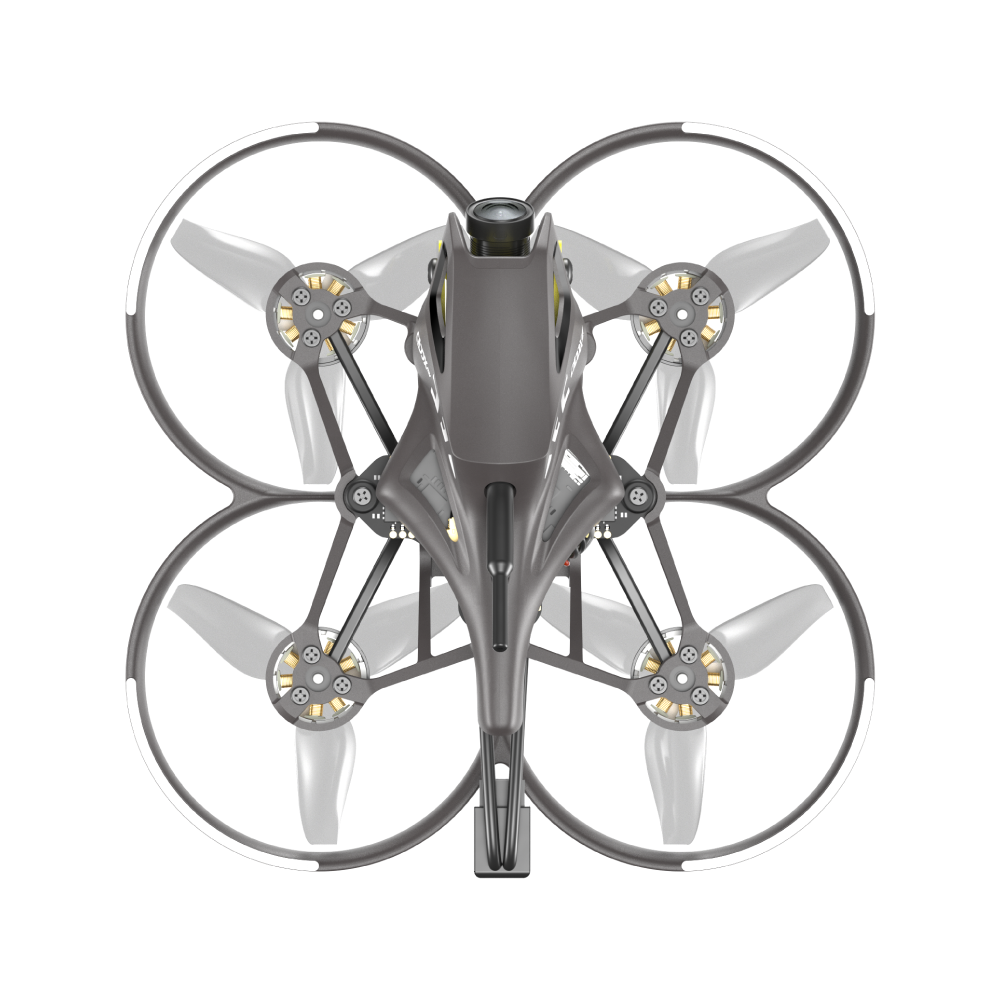

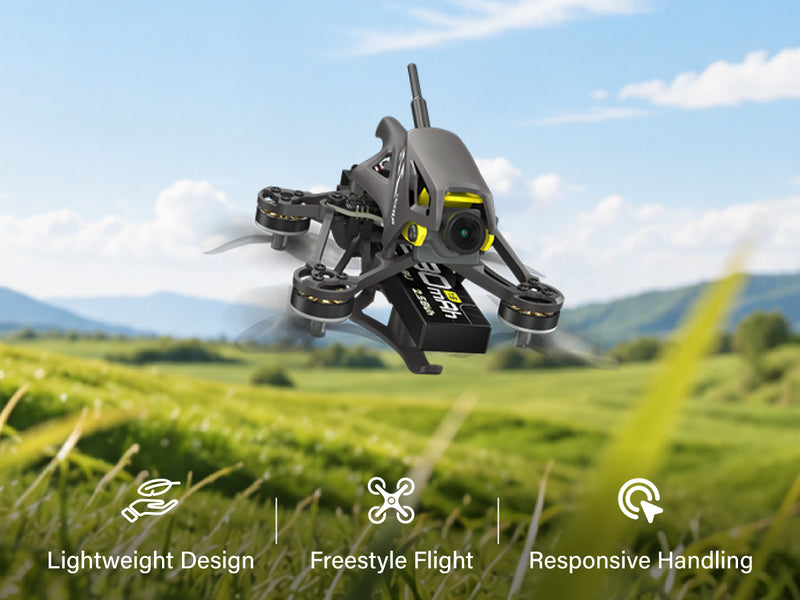

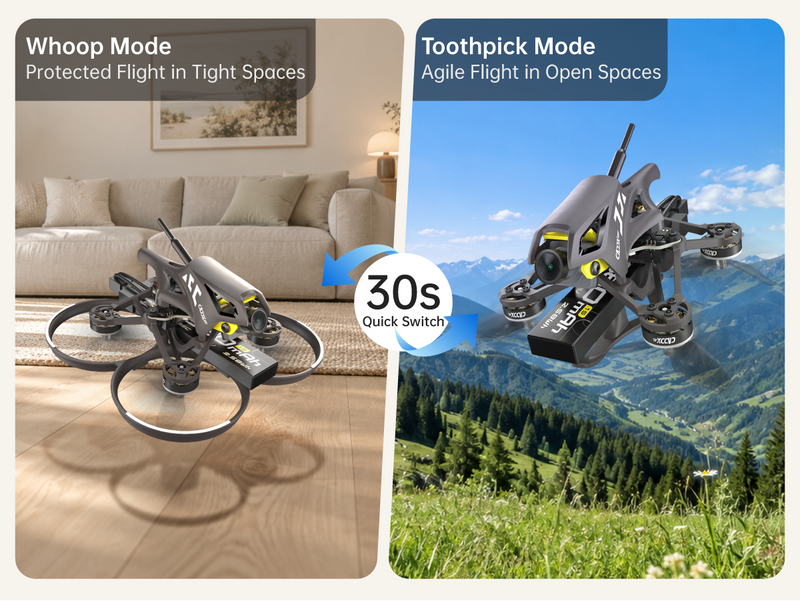

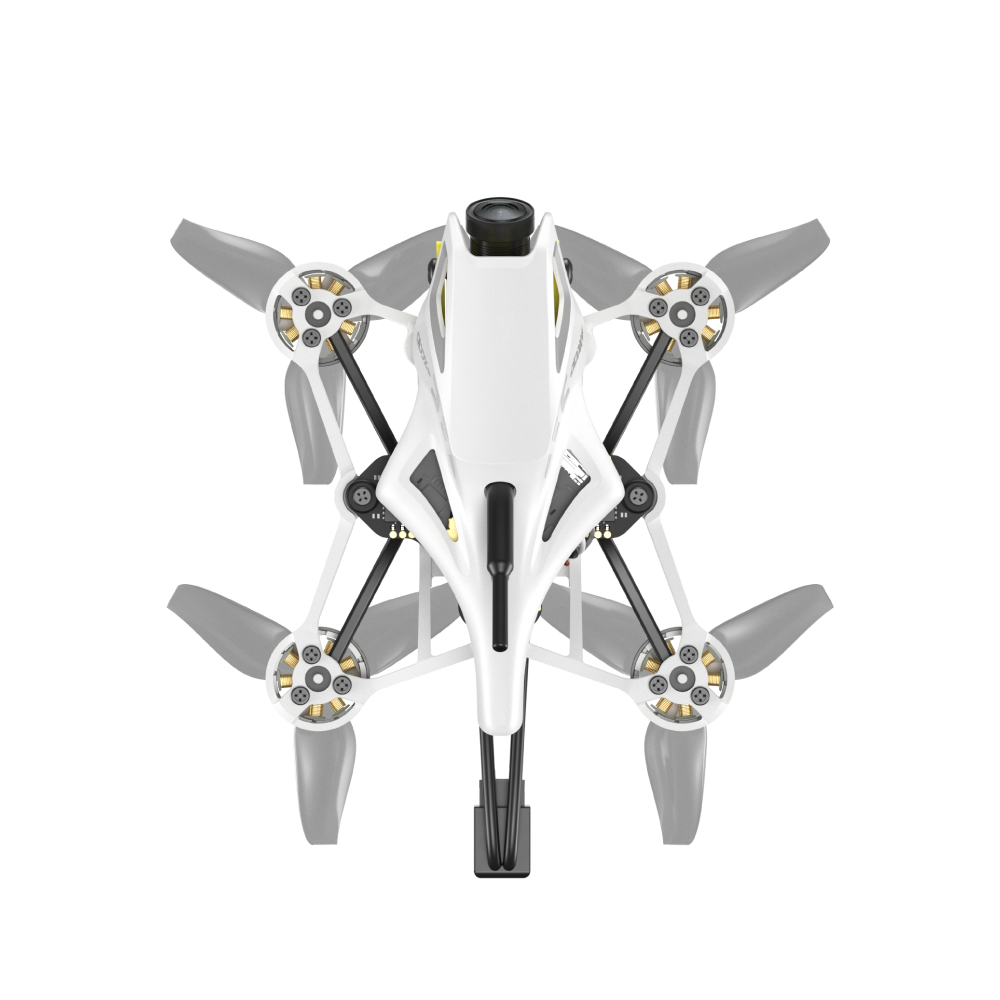

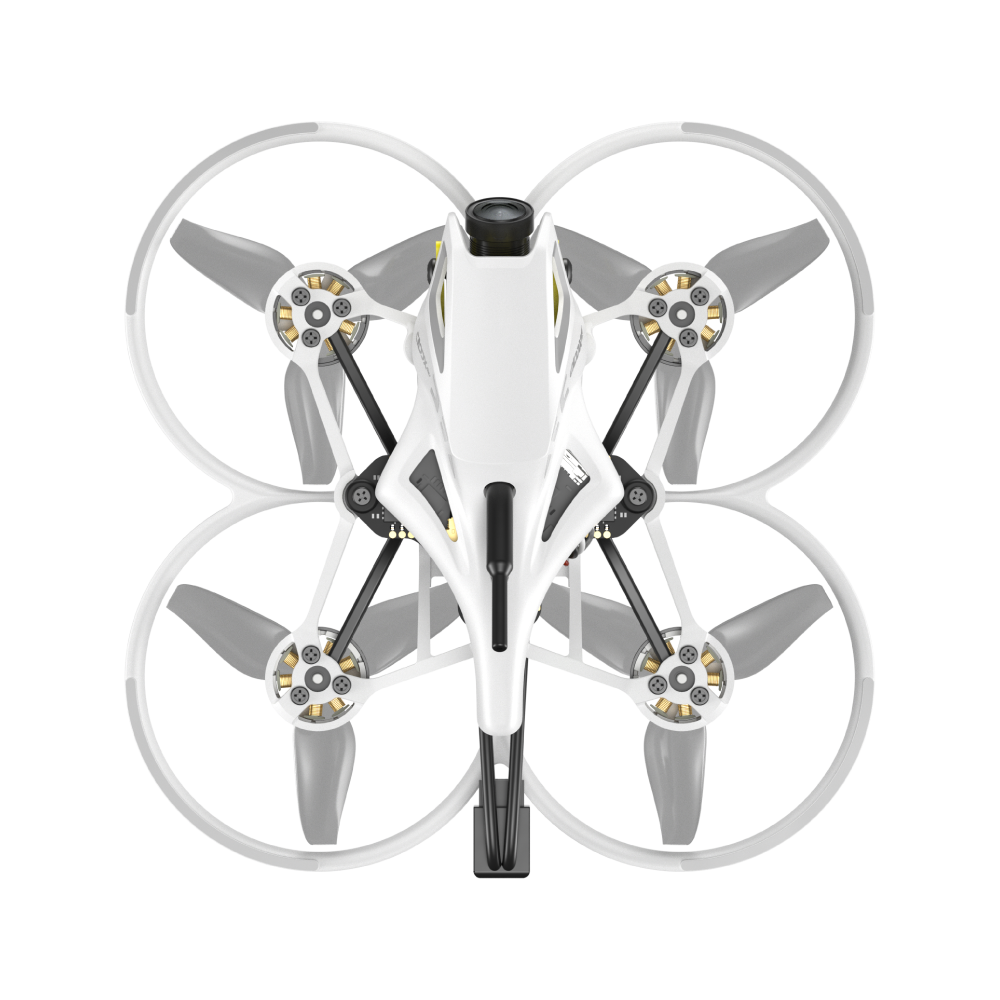

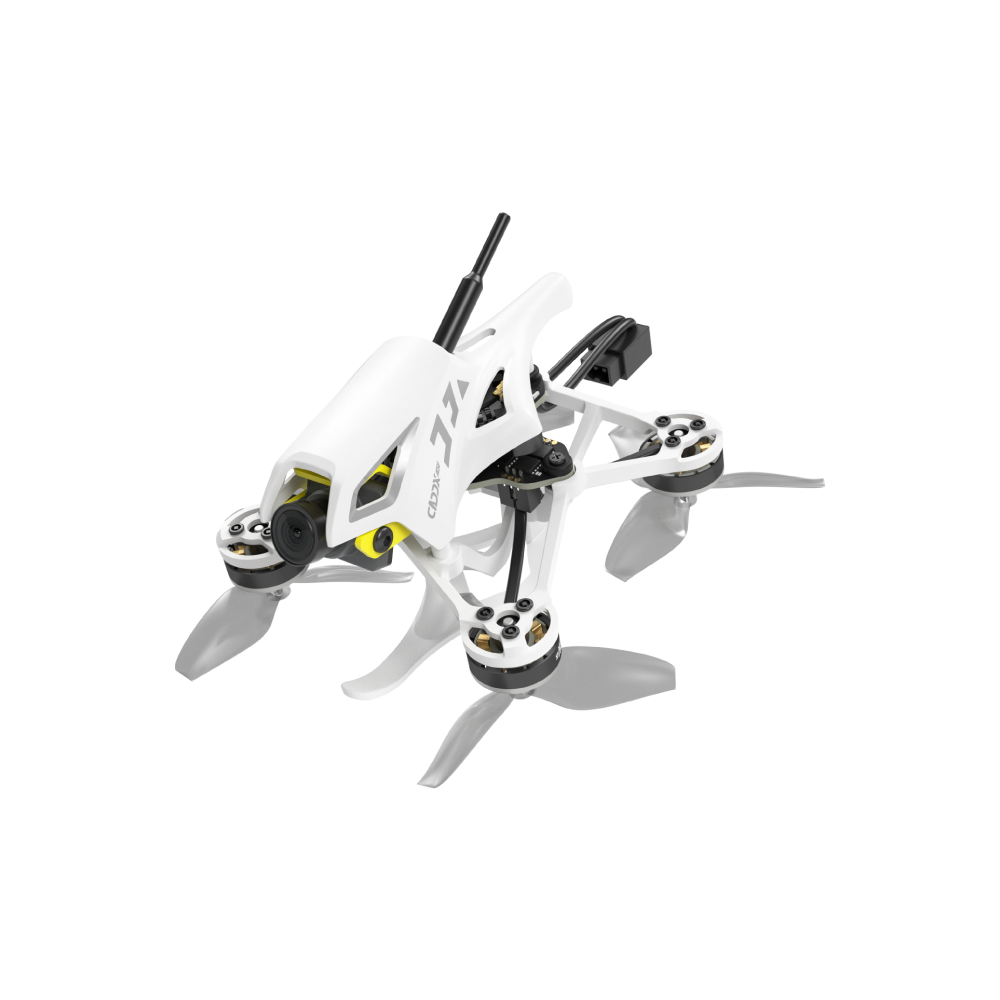

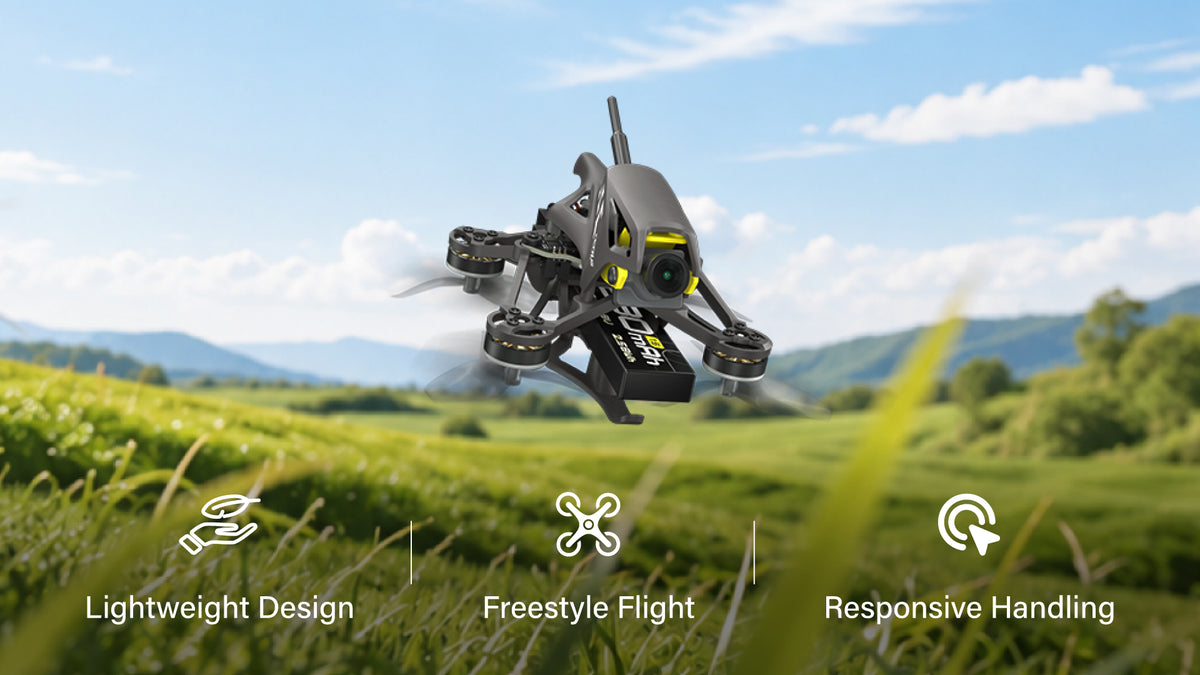

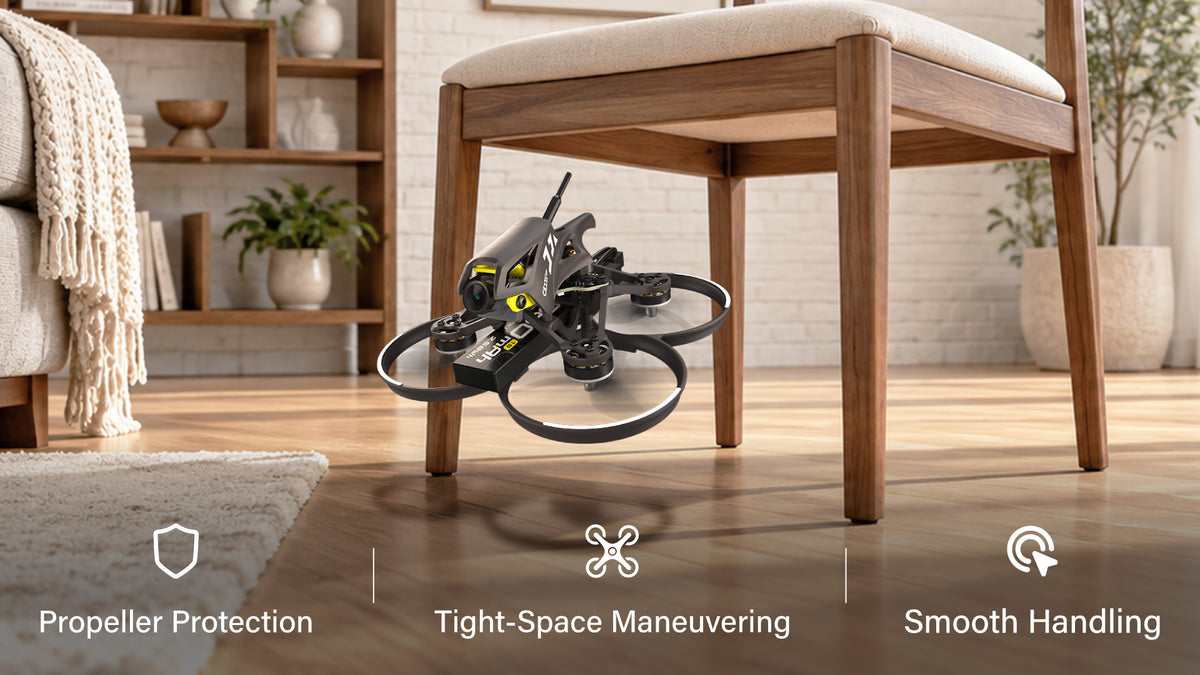

- Dual Whoop & Toothpick Forms: This dual-mode FPV quadcopter switches between Whoop and Toothpick configurations for different flying styles. Whoop mode adds propeller protection with a smoother, more forgiving feel for indoor FPV flying and tight spaces, while Toothpick mode delivers agile handling for outdoor exploration, FPV freestyle, and fast flying
- Compact, Lightweight & Reinforced: Built around a 1.6" tiny whoop FPV drone design, P18 combines a 68mm wheelbase and approximately 33g lightweight build (without battery) with reinforced triangular support, designed to improve frame rigidity while maintaining agile maneuverability through tight spaces
- Responsive Power & Agile Control: This 1S brushless FPV quadcopter is powered by 1102 22000KV motors and AXON 1S AIO V2.0, integrating the FC, ESC, and ELRS 2.4GHz receiver into one compact system. The inverted propeller layout is designed to optimize airflow around the frame for smoother, more controlled flight
- FPV Customization & Upgrades: Designed as a customizable DIY FPV drone platform, P18 supports a replaceable VTX module, reserved GPS solder pads, firmware updates, and Betaflight tuning. Four programmable bottom LEDs support customizable colors, dynamic effects, and flight status indications

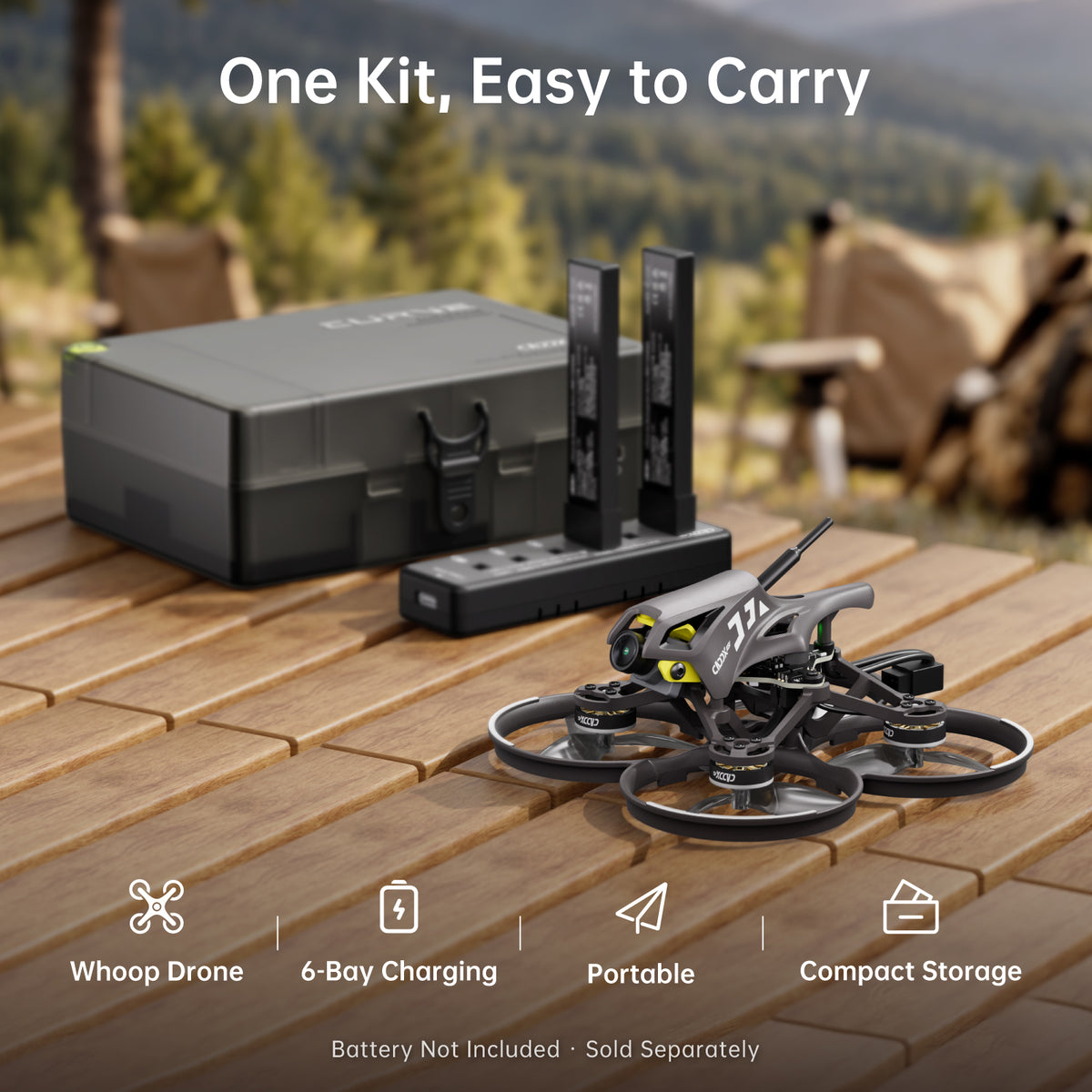

- 6-Channel Charger & Case Included: The P18 FPV drone package includes a 6-channel charger and storage case to keep your FPV gear organized and ready for the next flight. USB-C input supports flexible charging from compatible power sources at home, on the go, or at the flying field. Batteries are sold separately
Frequently Bought Together
CaddxFPV Alink Controller
$49.00 USD
Walksnail Ascent HD Goggles
$149.00 USD
Walksnail Ascent FPV VRX Pro
$149.00 USD
Safe & Secure
Pay with Ease
Trusted Delivery
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty
Lifetime Customer Support
CaddxFPV Curve Micro P18 HD Tiny Whoop FPV Drone
CaddxFPV Curve Micro P18 HD Tiny Whoop FPV Drone
Sale price$149.99 USD
Fly Indoors. Fly Outdoors. Your Choice.

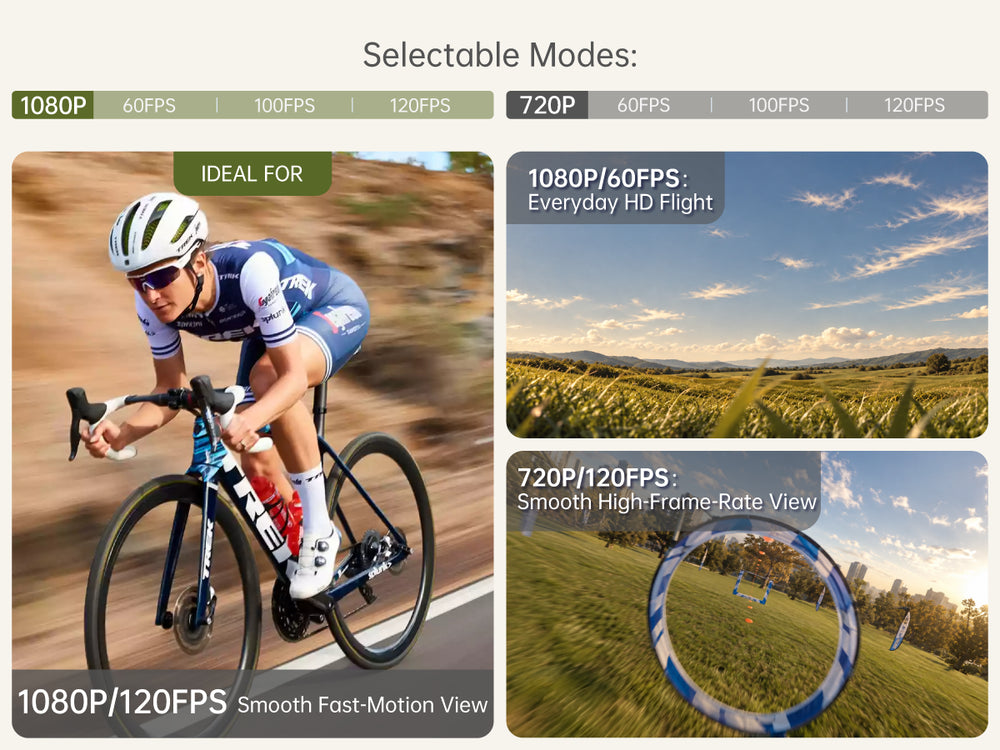

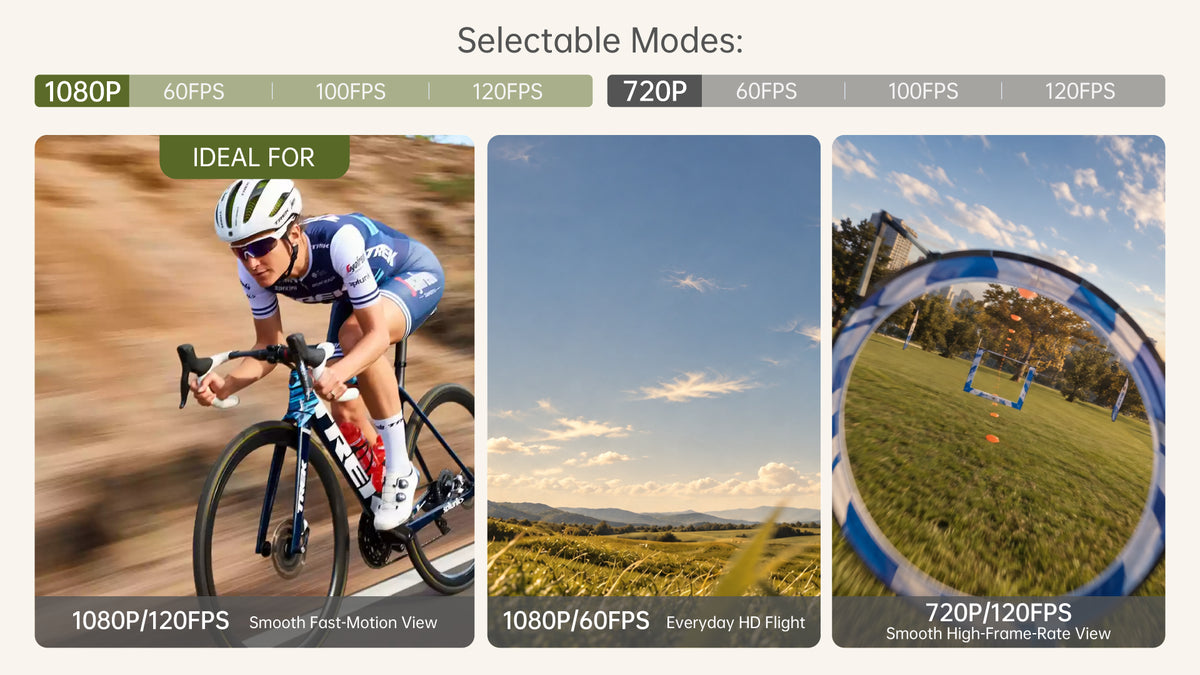

Flexible HD Video Modes
Choose between 1080P and 720P at 60FPS, 100FPS, or 120FPS for sharp details, smooth motion, and flexible viewing.

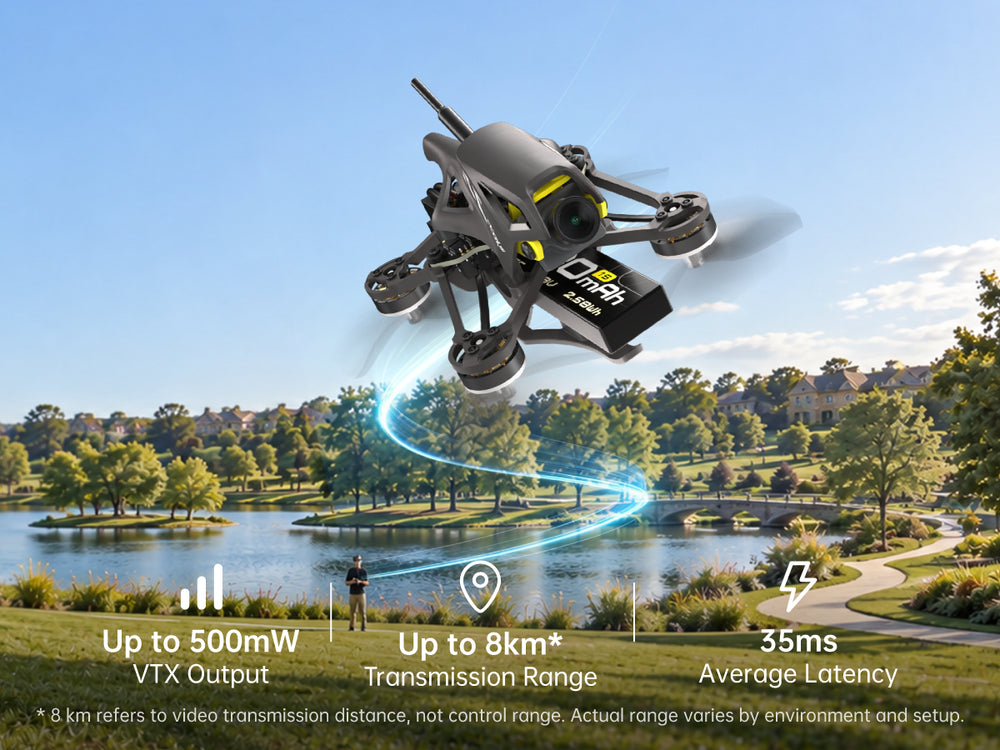

Stable HD FPV Transmission
Powered by the Ascent Lite+ VTX, delivering up to 500mW output, up to 8 km video transmission, and an average latency of 35ms for smooth, responsive FPV flying.

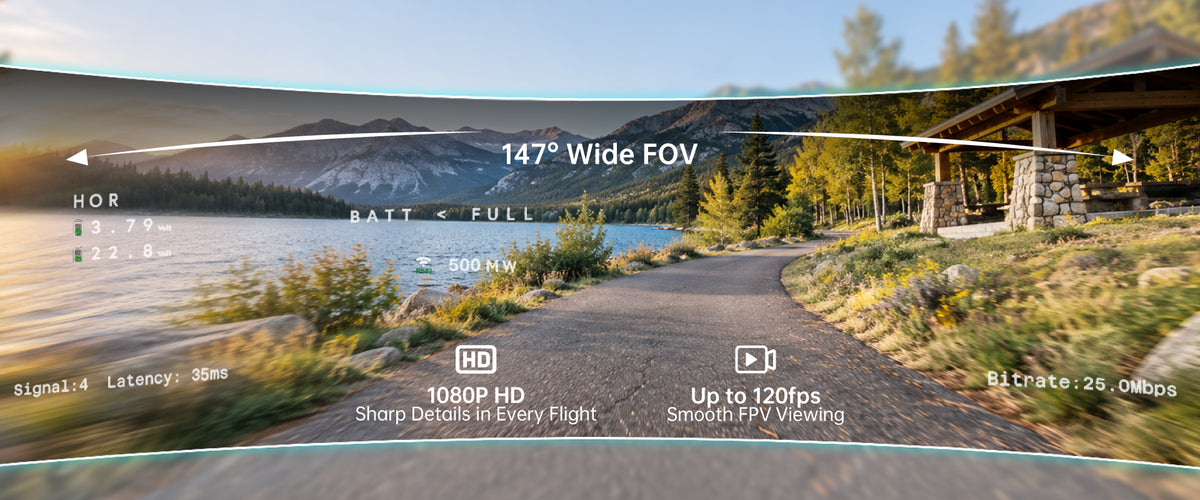

Immersive HD FPV View
See More. Fly with Confidence with a 147° Wide FOV, 1080P HD, and Smooth 120FPS FPV Viewing.
Jello Suppression
Reduce image wobble and visual warping for cleaner motion details and smoother, more stable footage during fast, dynamic flights.
Compact. Smooth. Built to Last.
Compact Design
Inverted Propellers
Reinforced Frame

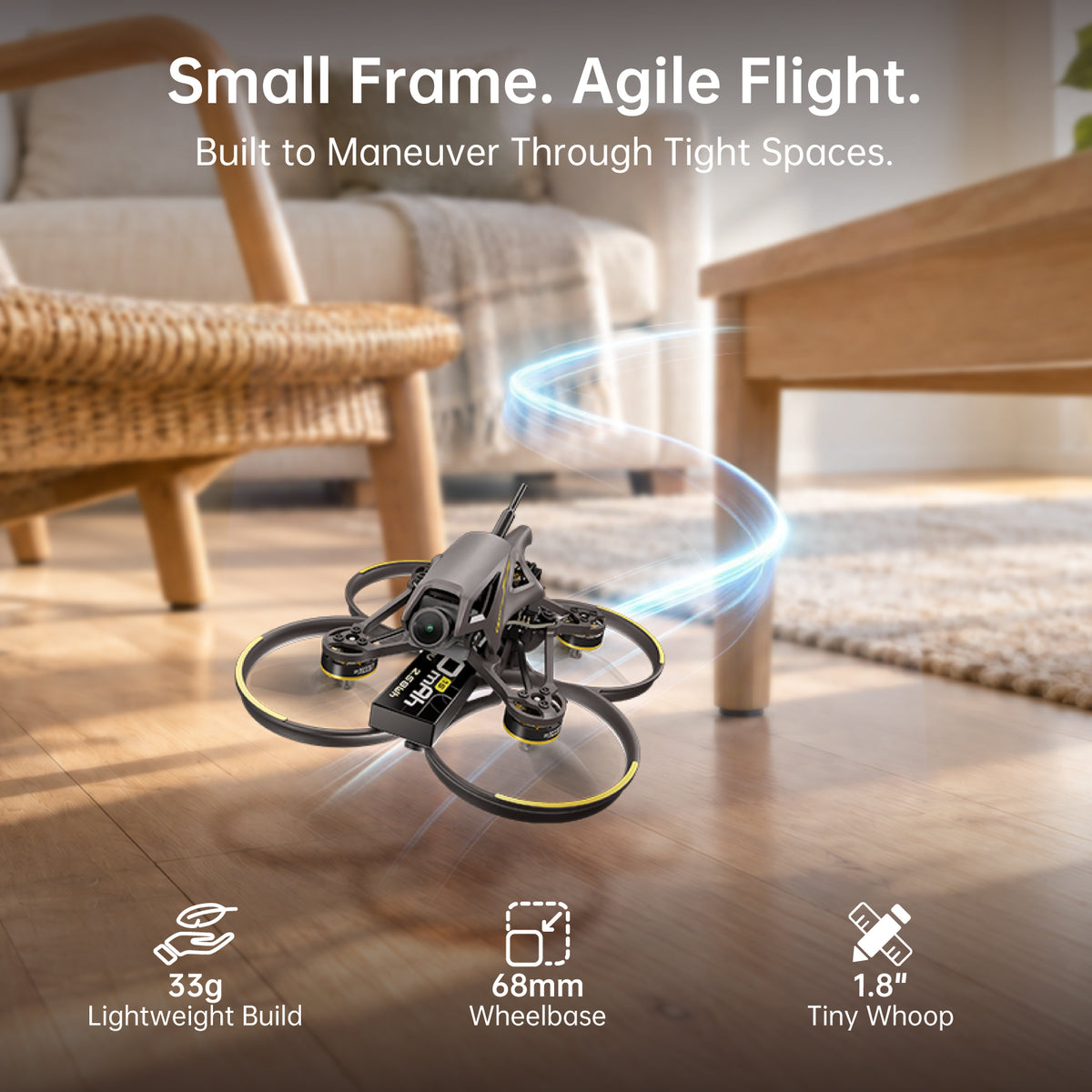

Small Size. More Freedom.
A compact FPV design made for more ways to fly—from navigating tight spaces to exploring wide-open areas, while remaining easy to carry.

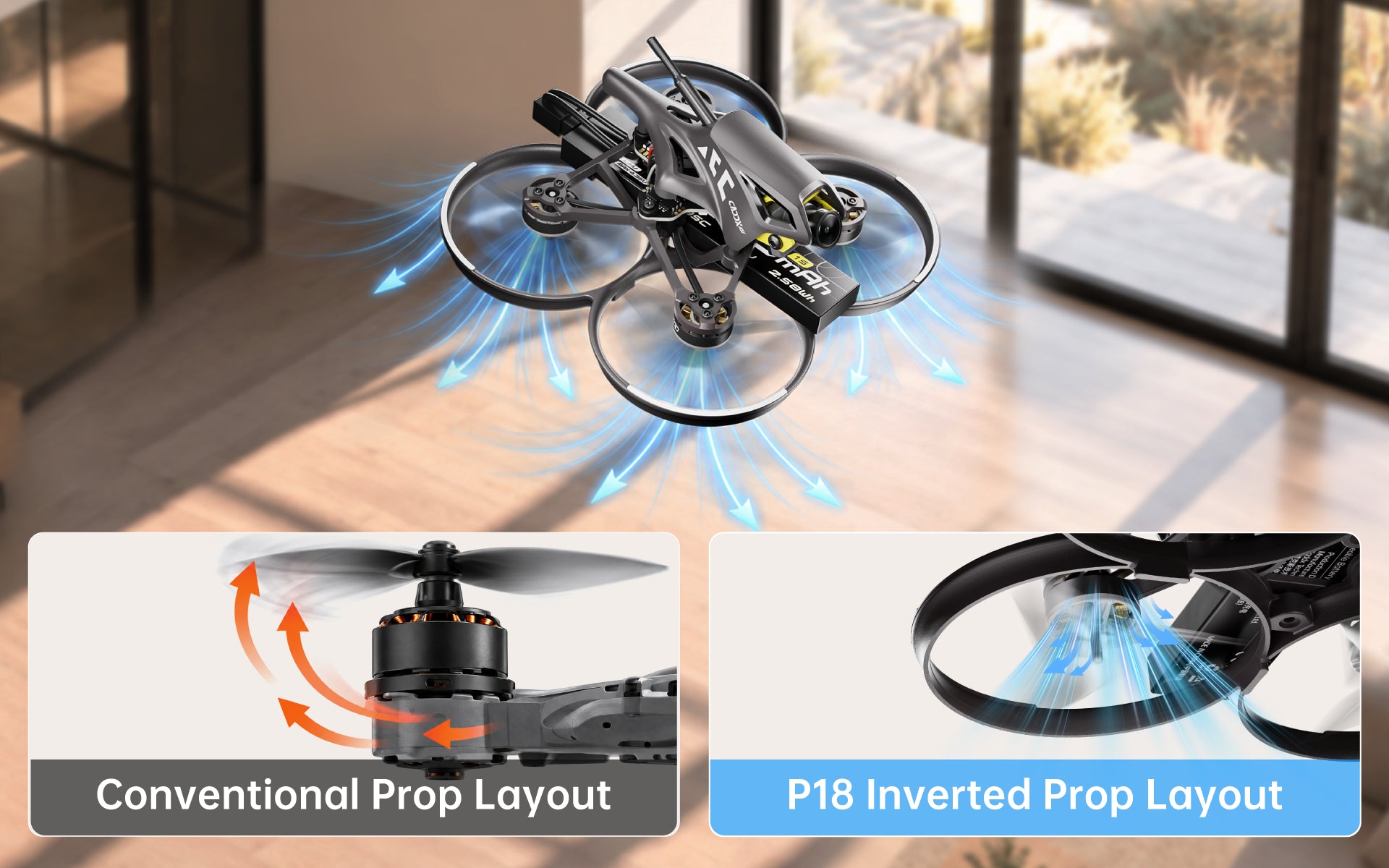

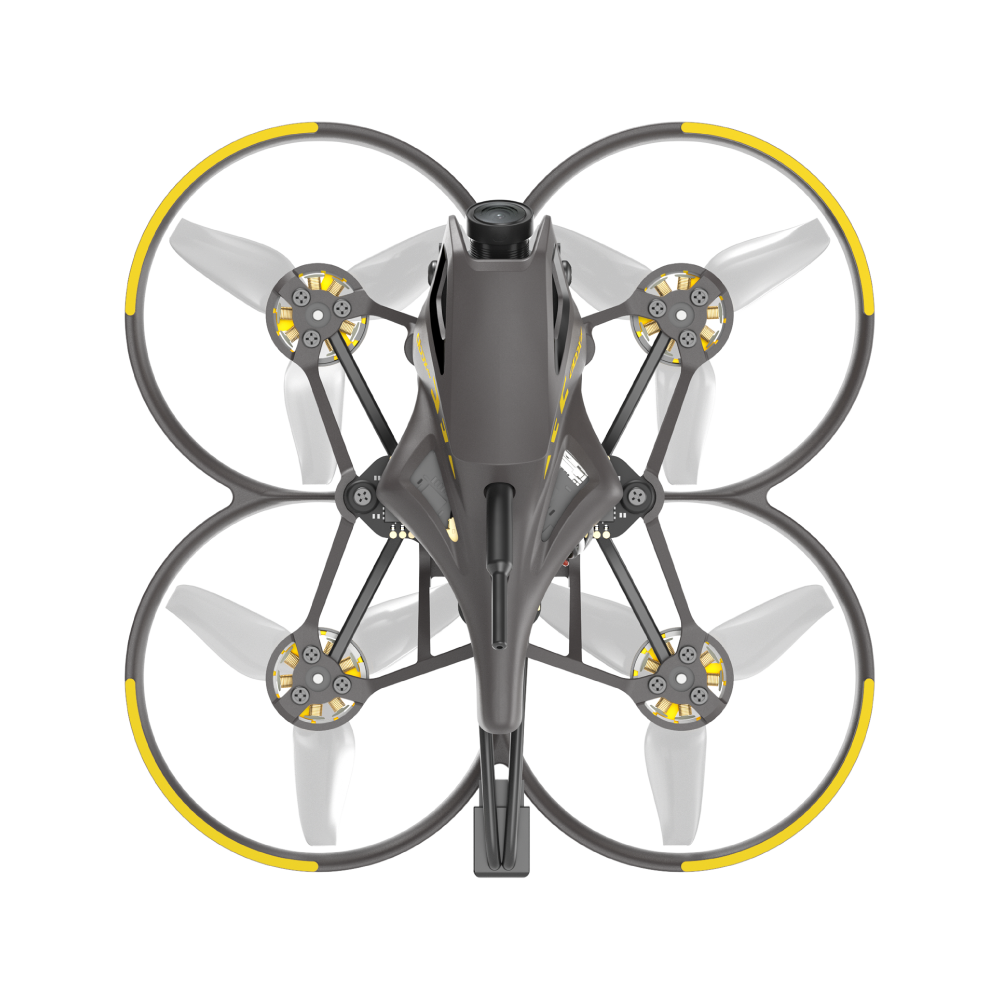

Inverted Propeller Design
Unlike conventional propeller layouts, where the frame can disrupt airflow, the P18’s inverted design creates a cleaner airflow path with less frame interference for smoother flight.

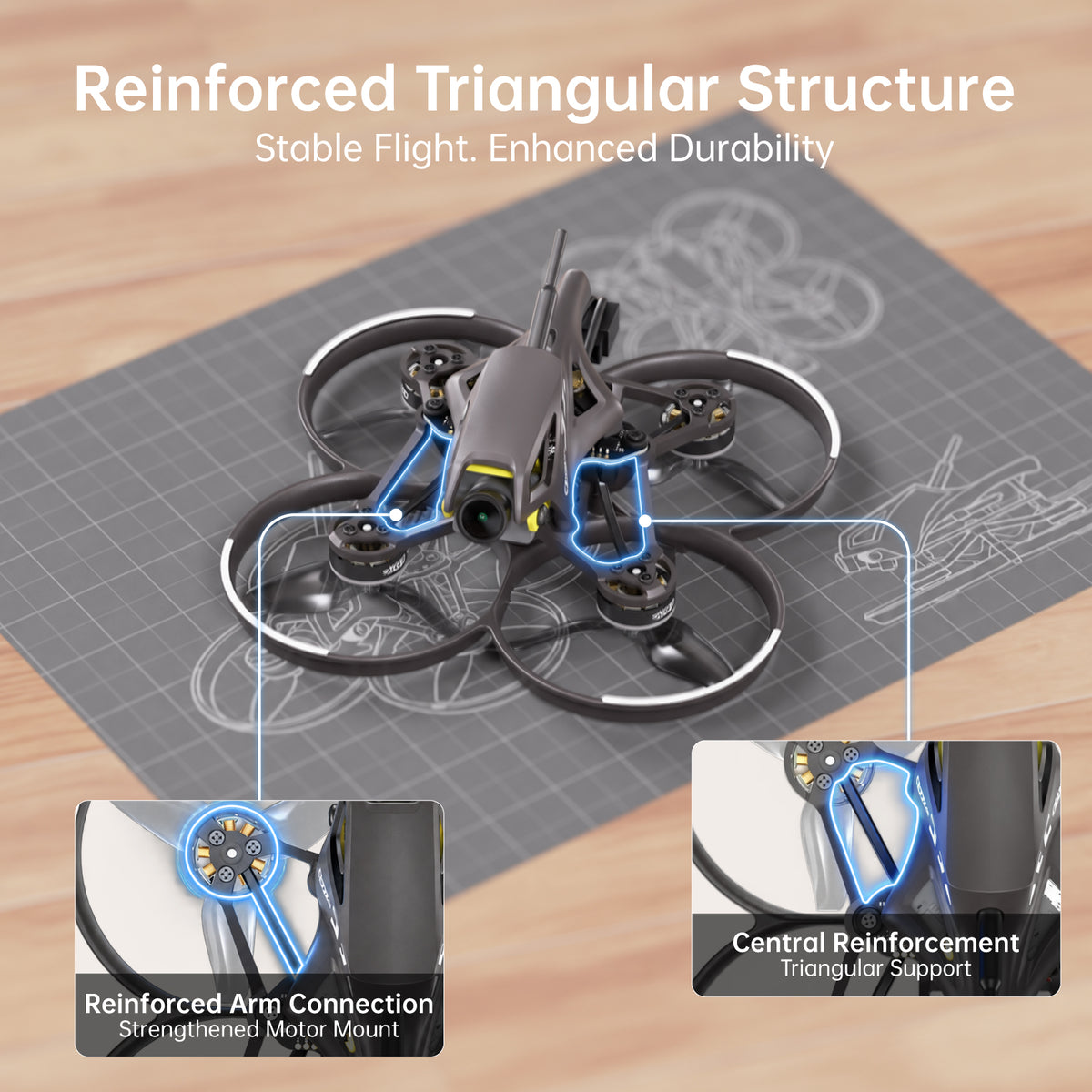

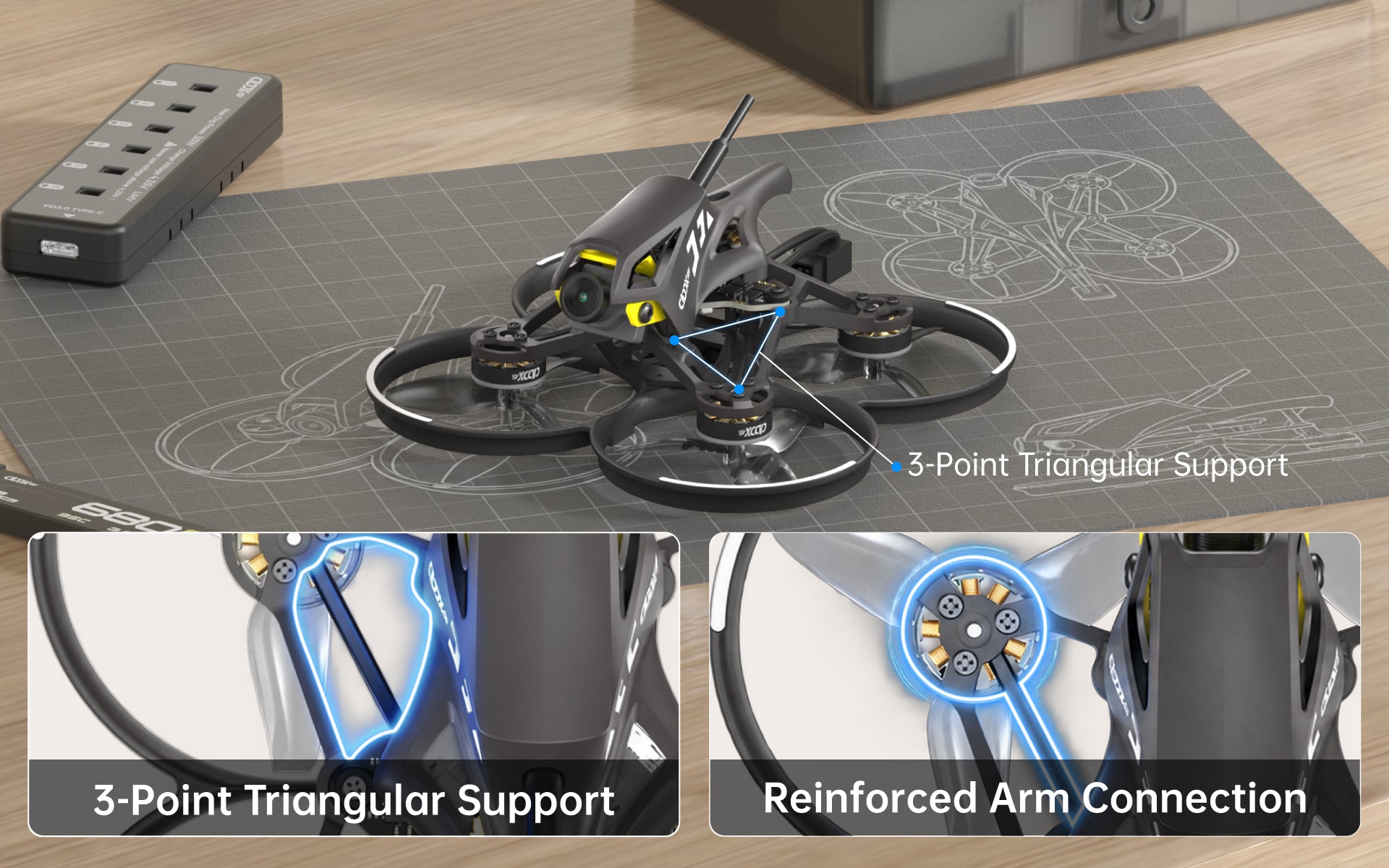

Reinforced Triangular Structure
The 3-point triangular center support and reinforced arm connections strengthen the frame and motor mounts, improving rigidity, structural stability, and durability against impacts.

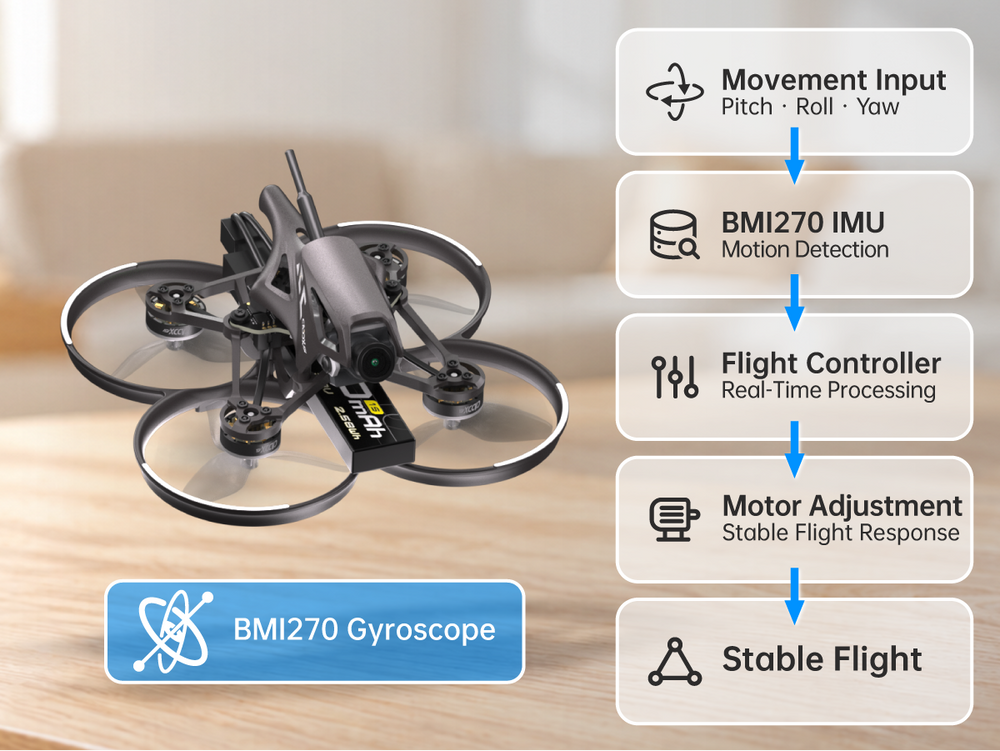

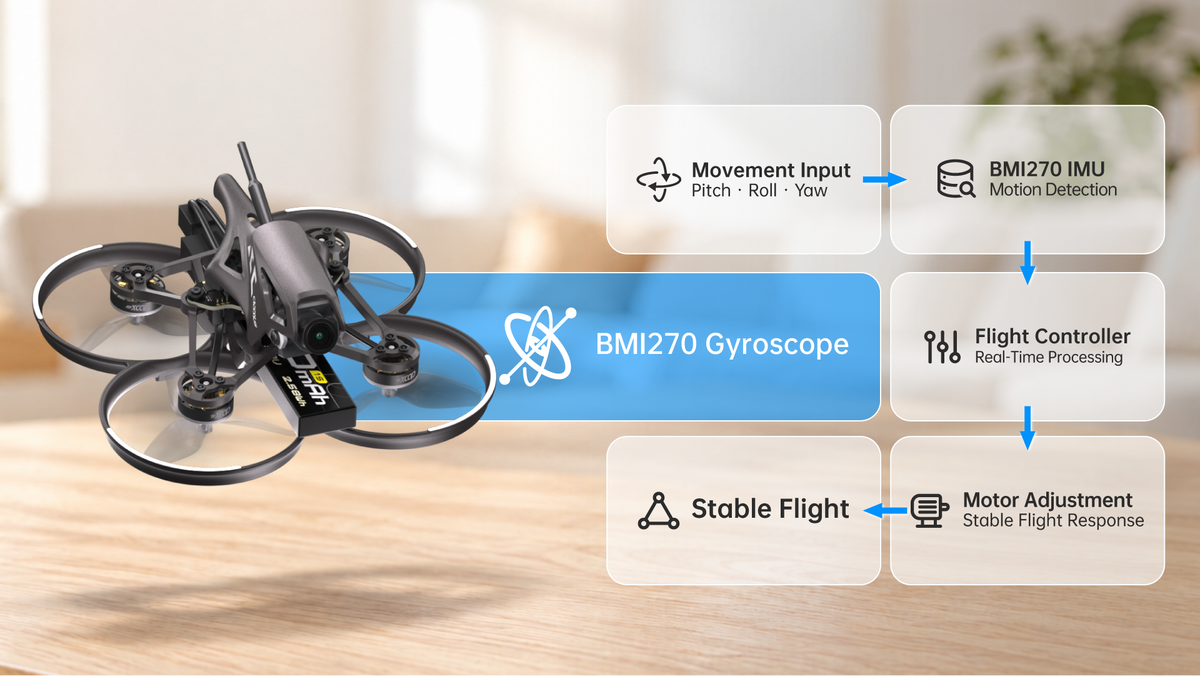

Precision Motion Sensing
The BMI270 gyroscope detects pitch, roll, and yaw in real time, enabling rapid motor adjustments for responsive control and stable flight.

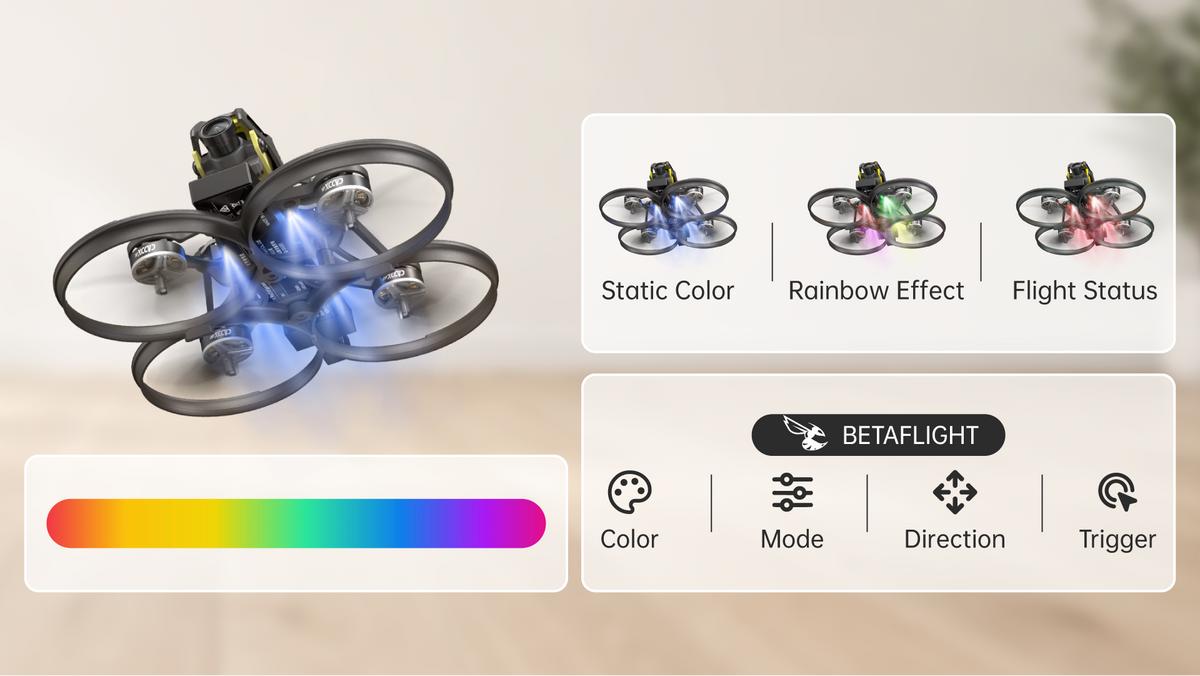

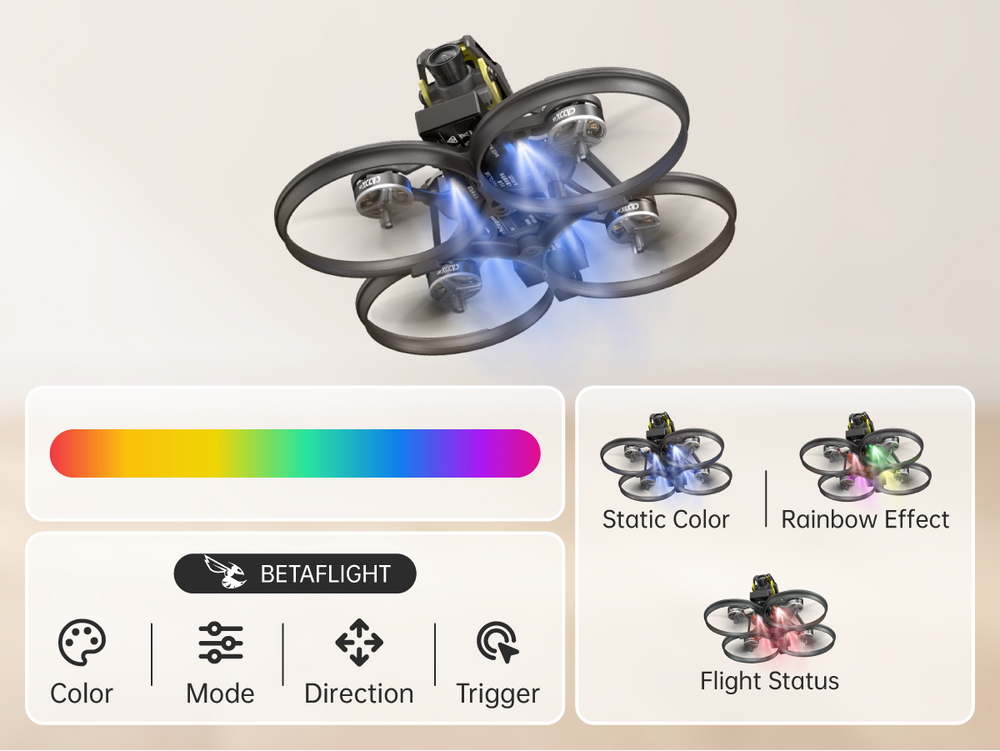

Customize Your FPV Experience
Four programmable bottom LEDs offer 24-bit true color with 16.7 million color options, dynamic lighting effects, and flight-status feedback.
Customize the color, mode, direction, and triggers through Betaflight.
Integrated FPV System. Built to Expand.
Ascent Ecosystem
3-in-1 AIO
Built-in ELRS
Replaceable VTX
Ready for DIY Upgrades

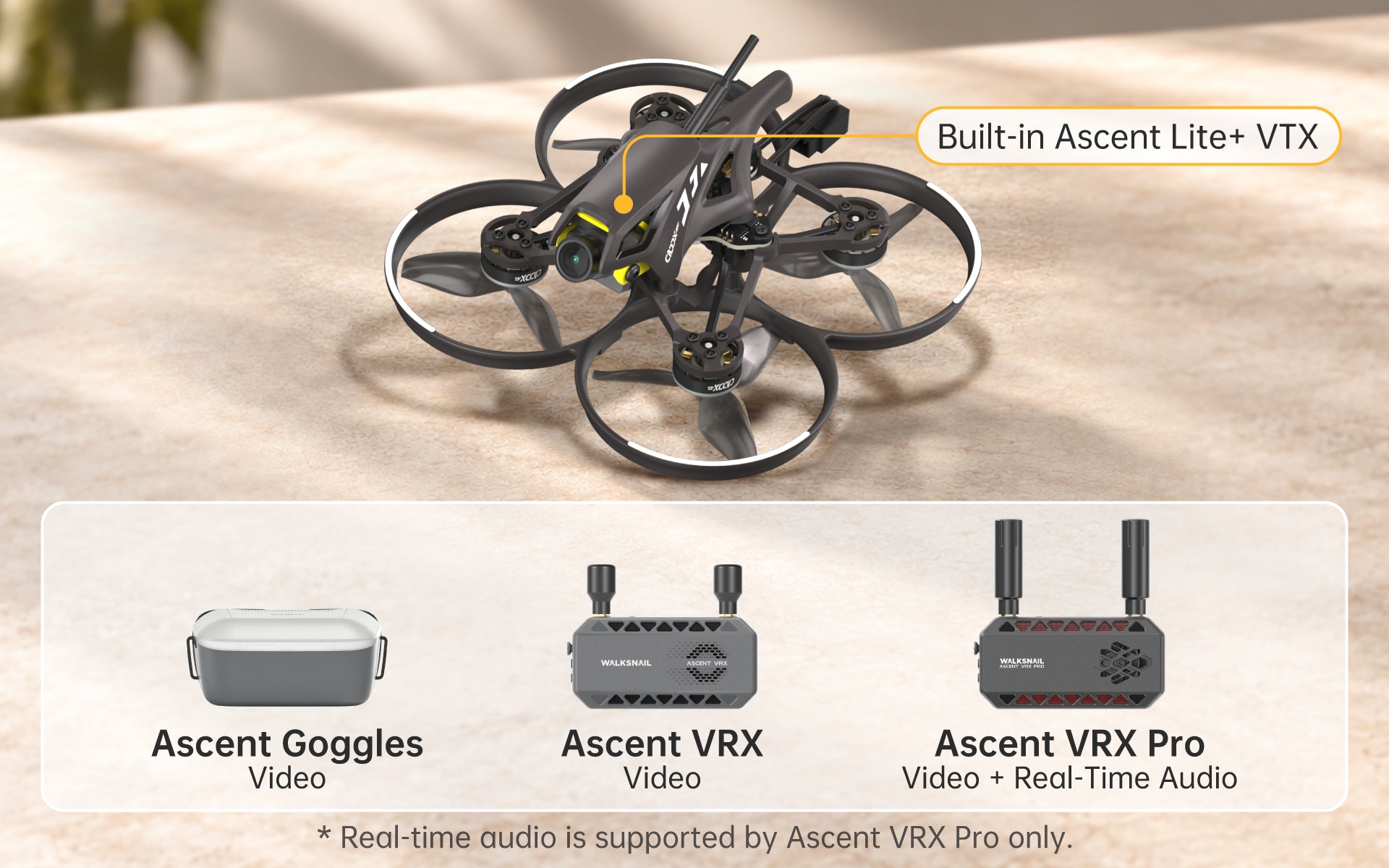

Built for the Ascent HD Ecosystem
Designed for seamless integration across the Ascent HD ecosystem, the P18 features a built-in Ascent Lite+ VTX and works with Ascent VRX Pro, Ascent VRX, and Ascent Goggles.

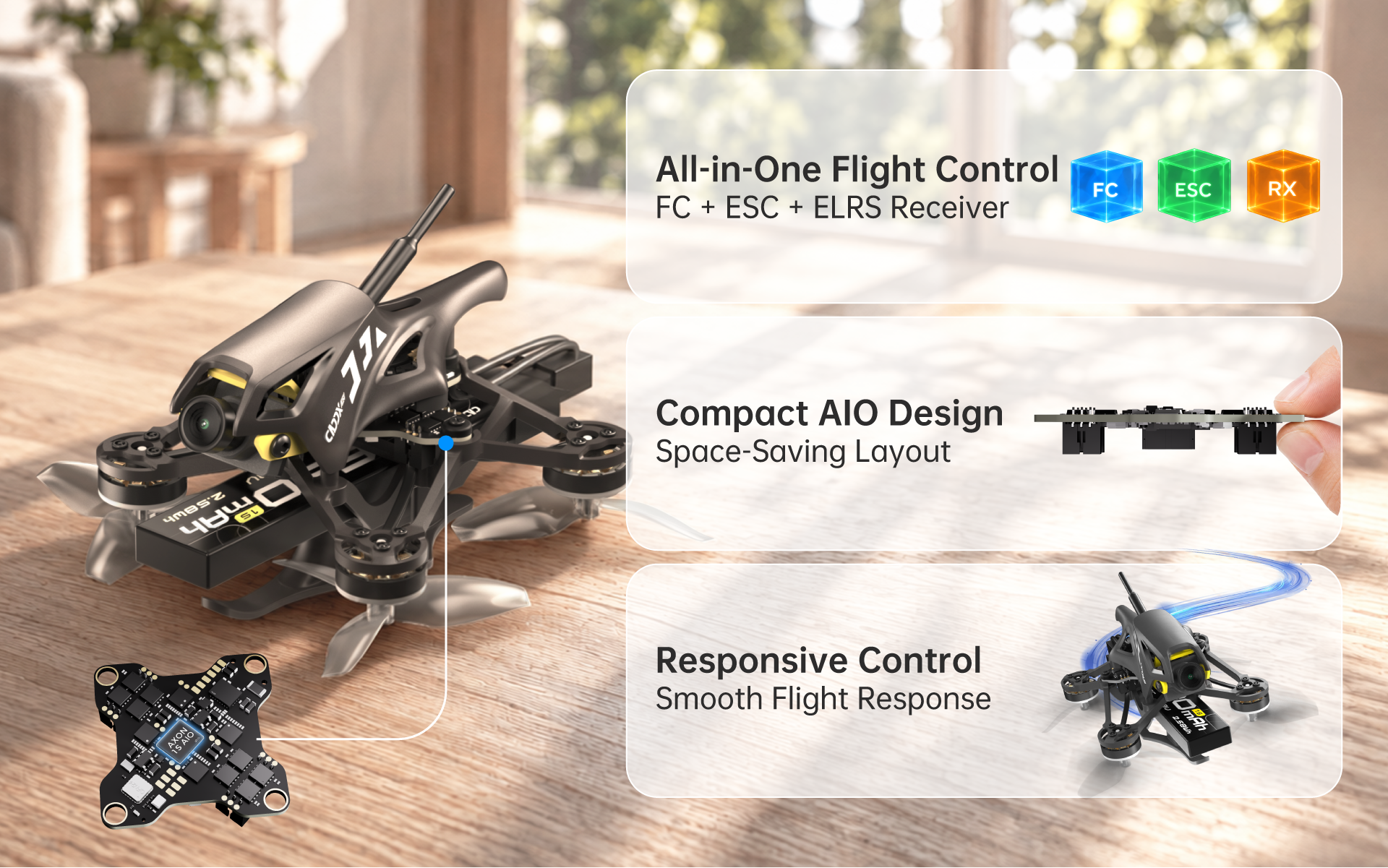

AXON 1S AIO V2.0
Integrates the flight controller, ESC, and 2.4GHz ELRS receiver into one compact board, saving space while delivering precise control, efficient motor drive, and responsive flight performance.
Built-in ELRS 2.4GHz Receiver
Integrated directly into the flight system for a cleaner, simpler FPV setup, the receiver pairs with compatible ELRS 2.4GHz transmitters for responsive control.

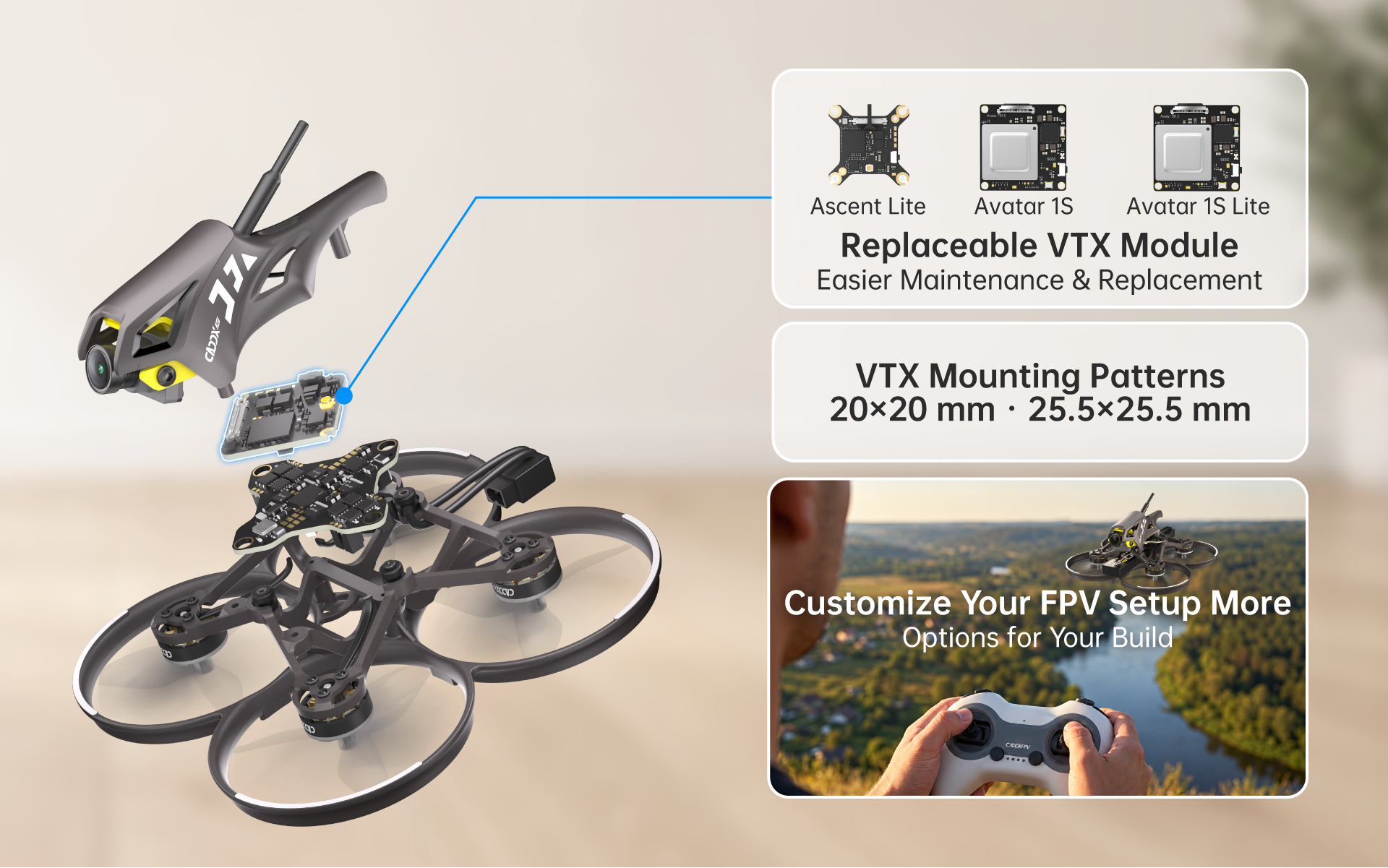

Replaceable VTX Design
Designed for flexible DIY upgrades, the replaceable VTX module supports multiple mounting options, including 20 × 20 mm and 25.5 × 25.5 mm patterns. It is compatible with Ascent Lite, Avatar 1S, Avatar 1S Lite, and other suitably VTX modules.
Ready for DIY Upgrades
Reserved GPS solder pads support optional GPS expansion, while firmware updates and flight tuning let you customize the P18 to match your flying style.
One Drone. Multiple Flying Adventures.

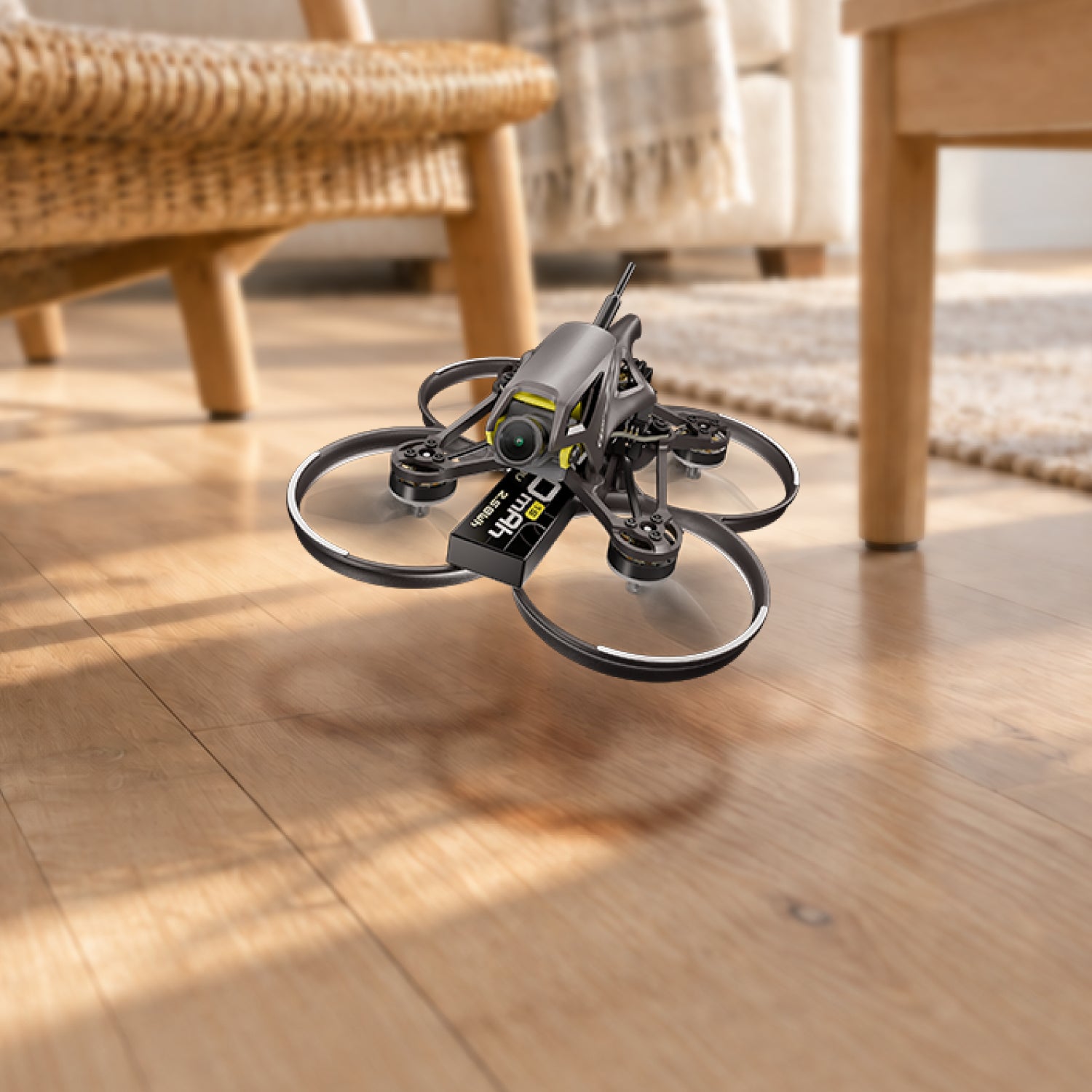

Indoor Fun
Outdoor Flying
Scenic Exploration

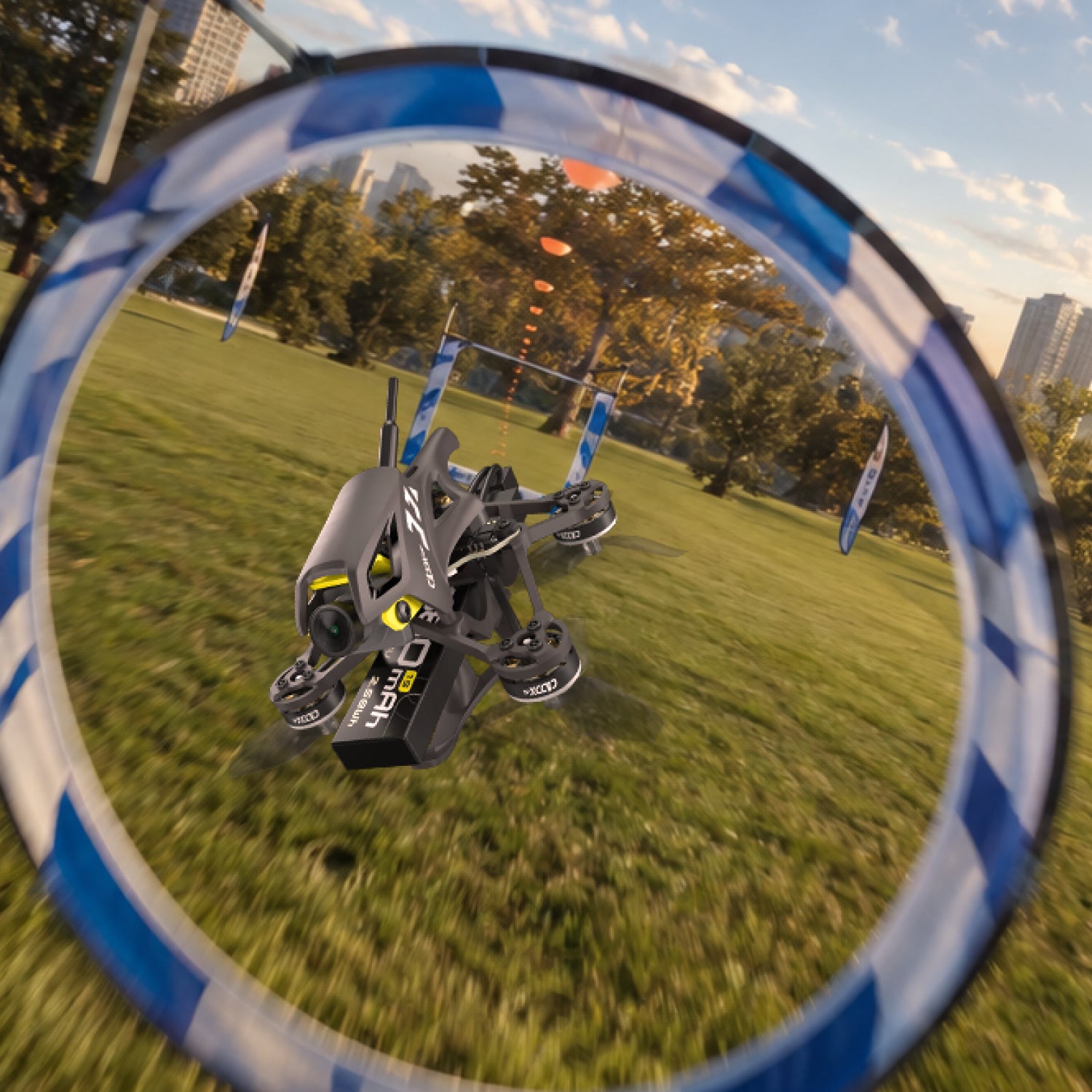

FPV Racing
Indoor Fun
Outdoor Flying
Scenic Exploration
FPV Racing
SPECS
Name
Curve Micro P18
VTX
Ascent Lite+
FC
AXON 1S AIO V2.0
ESC
1S 12A
Receiver
ELRS V3.5.0
Motor
1102
Propeller
HQ 45mm 1.8X1.3X3
Wheelbase
68mm
PWR Port
A30
Flight Time
8min
Weight
33g
Processor
STM32G473
Gyroscope
ICM42688 /BMI270
Blackbox
16M
BEC
5V3A
FC Voltage
1S
FC Firmware
CADDXG473-2026.6
ESC Current
12A (Continuous);18A (Peak)
ESC Firmware
A-X-5
Tune Port
SH1.0-4P
Motor Port
JST1.25-3P

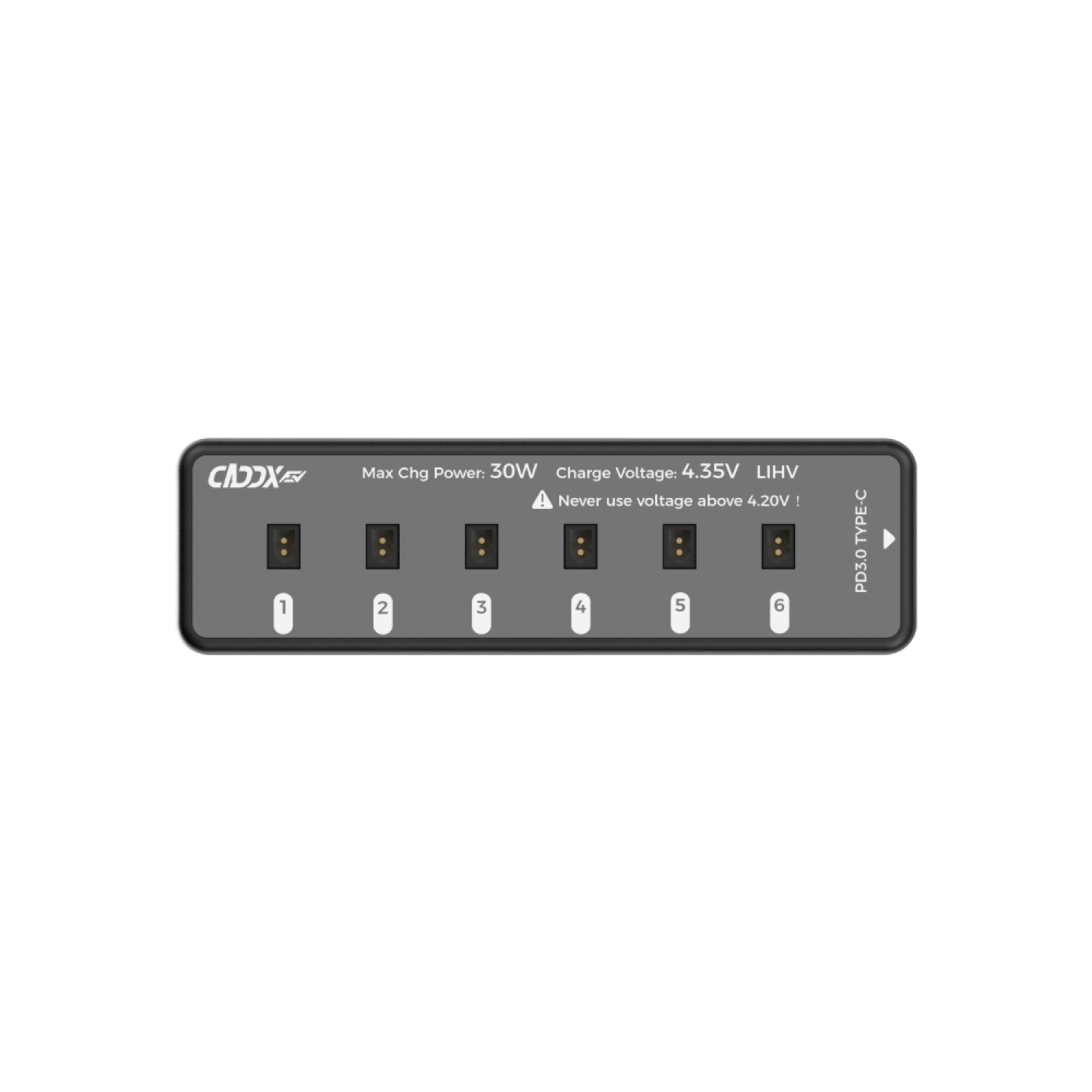

Charger
6-Channel Charger
FC Protocol
USB PD/BC1.2
In Voltage
5V-12V
In Port
Type-C USB
Bat Type
LiHV 4.35V
Channel
6
Max Input Power
30w
Max.Charging Curr
1A
Dimension
101.5*30*14.5mm

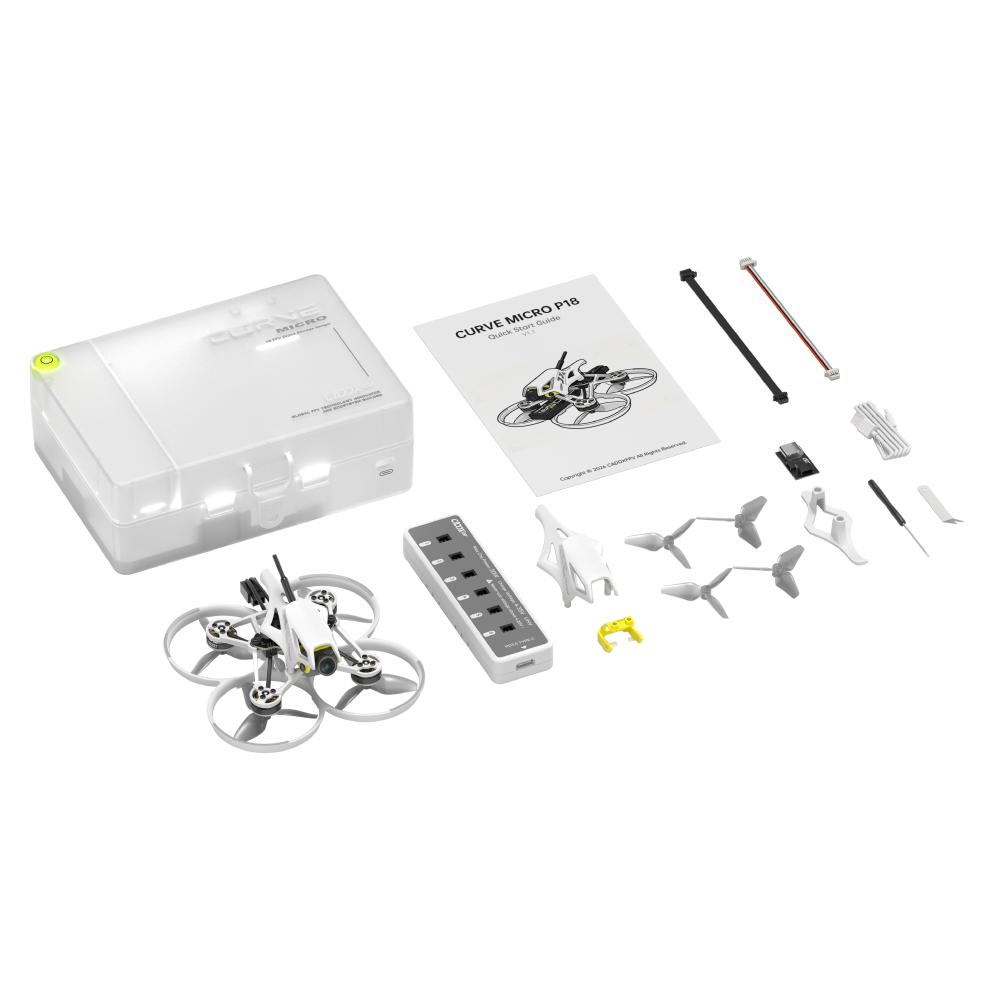

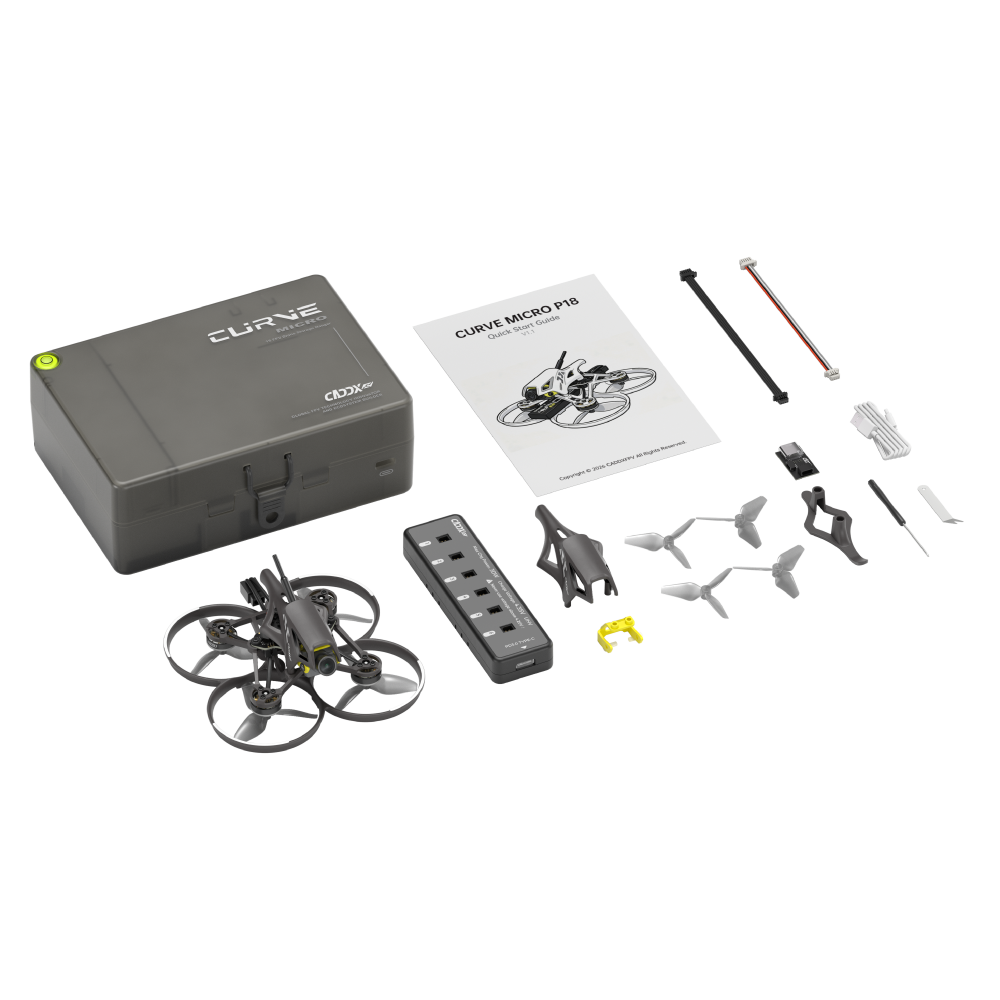

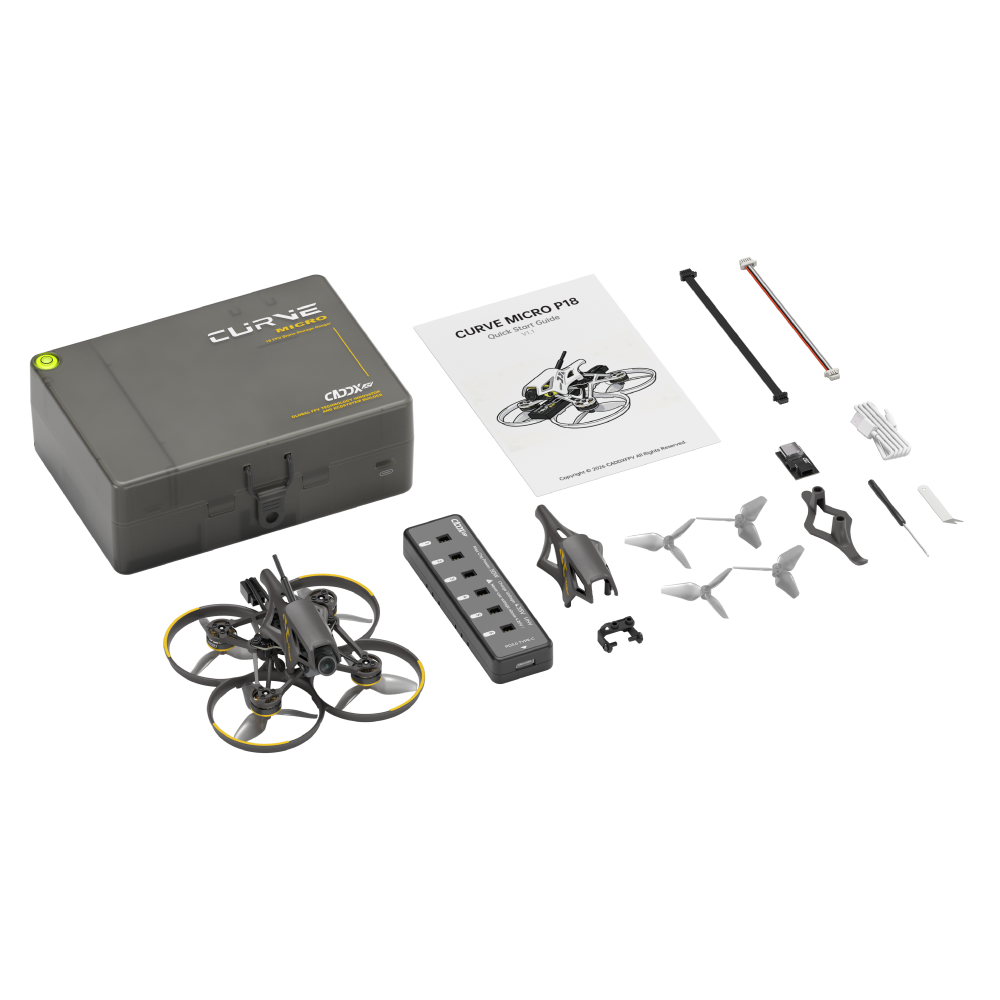

In the Box
CURVE Micro P18 (Battery Not Included)
X 1

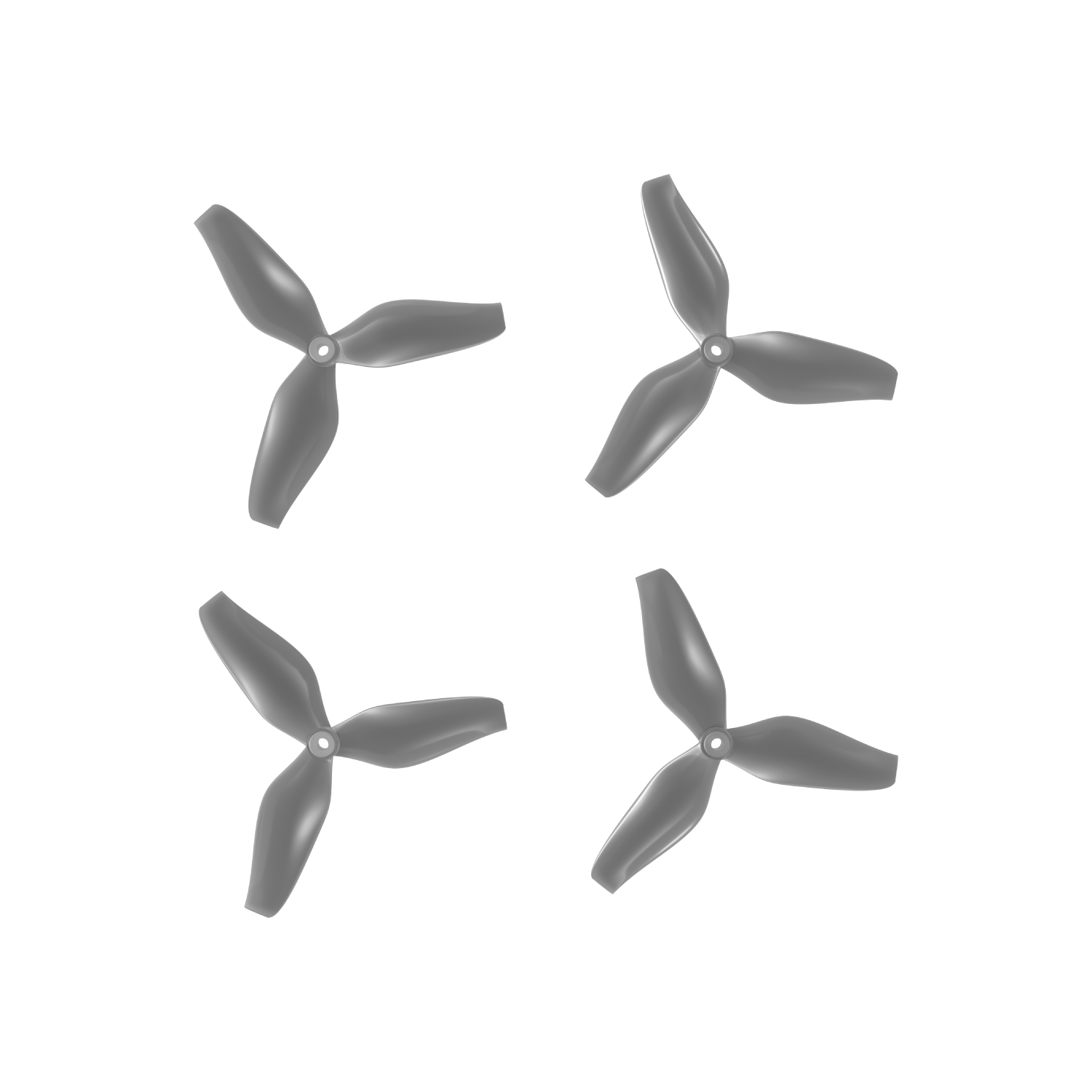

Propeller Set
X 1
1S AIO V2.0
X 1
6 Channel Charger
X 1

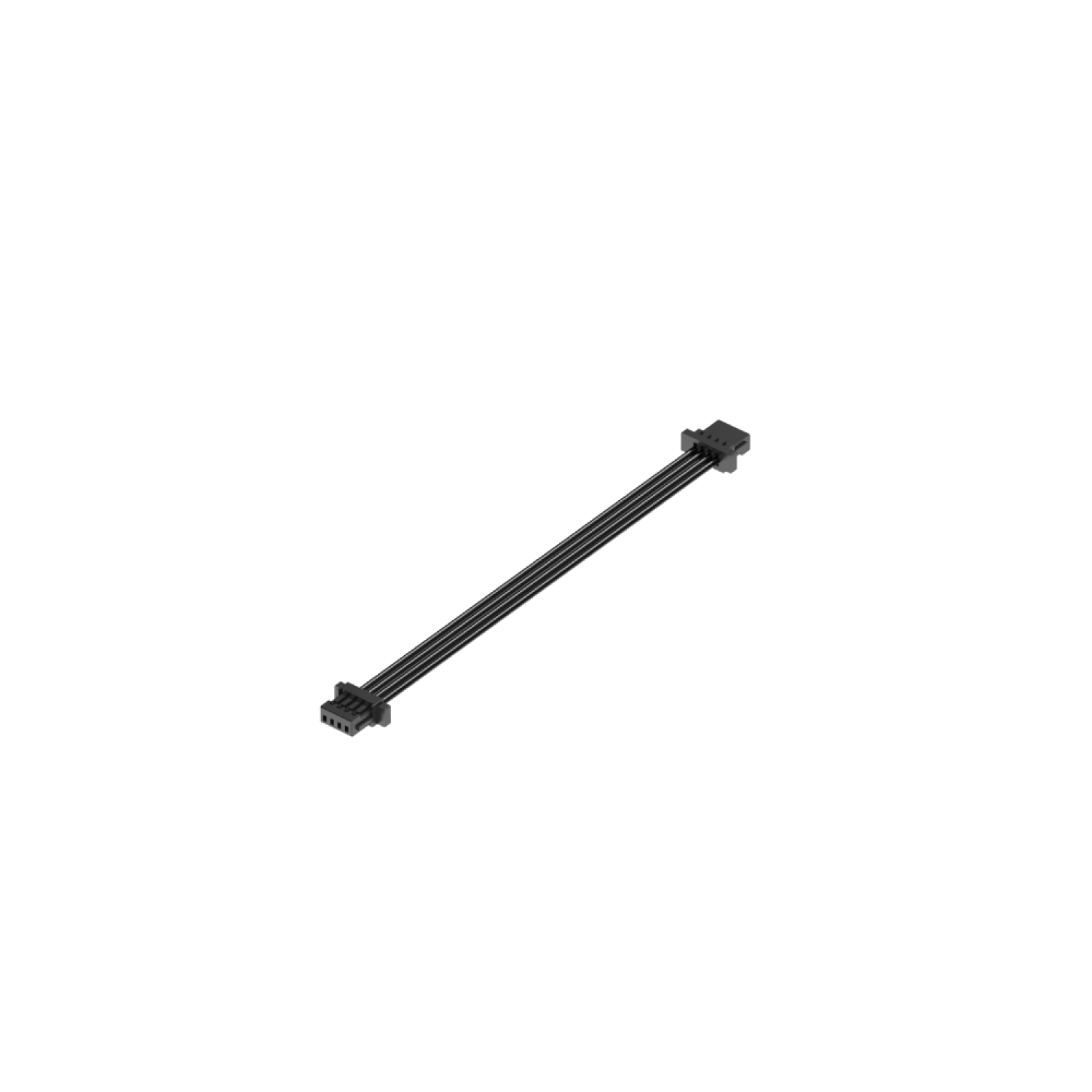

4-Pin Cable
X 1

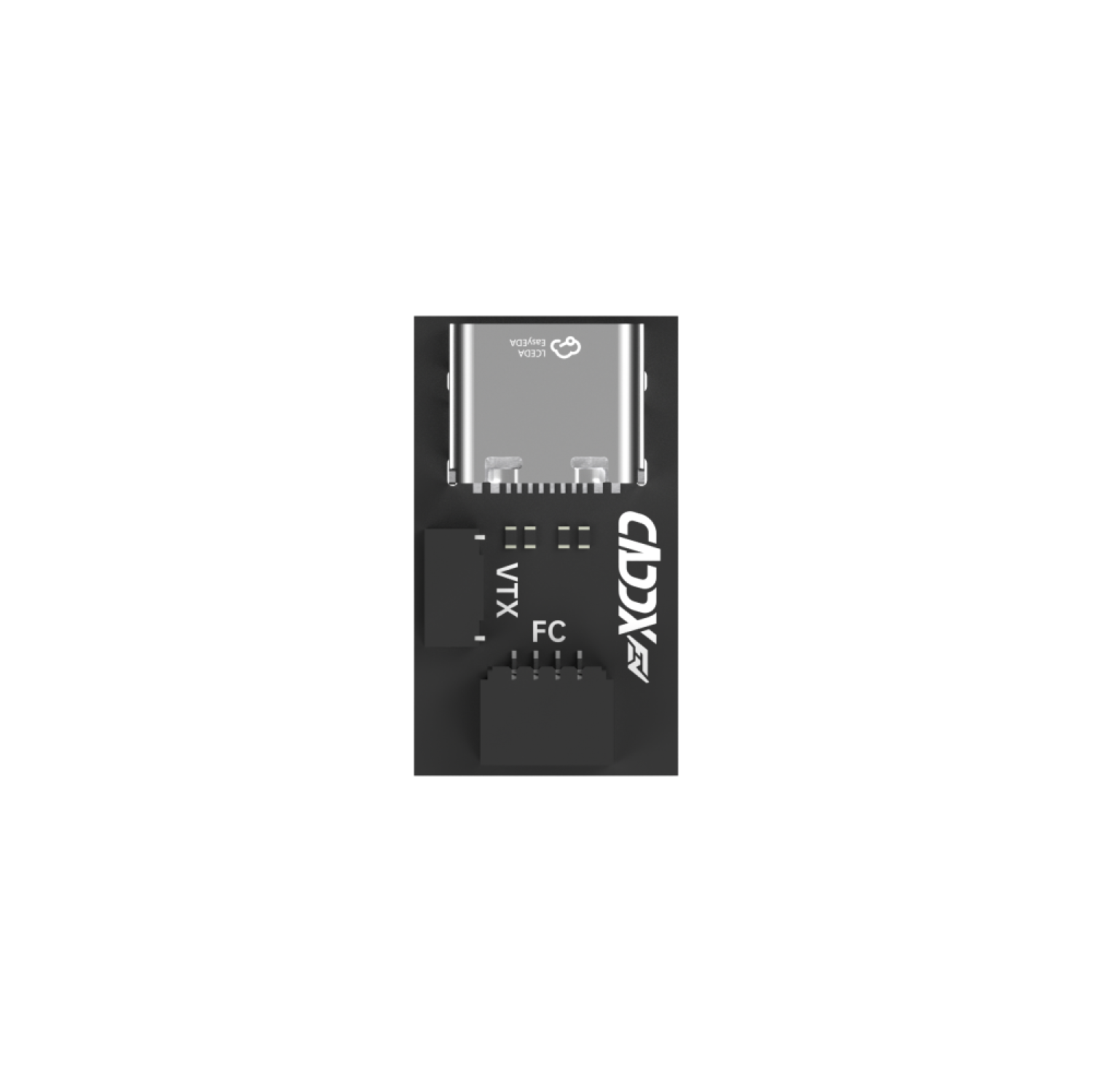

VTX Upgrade Cable
X 1

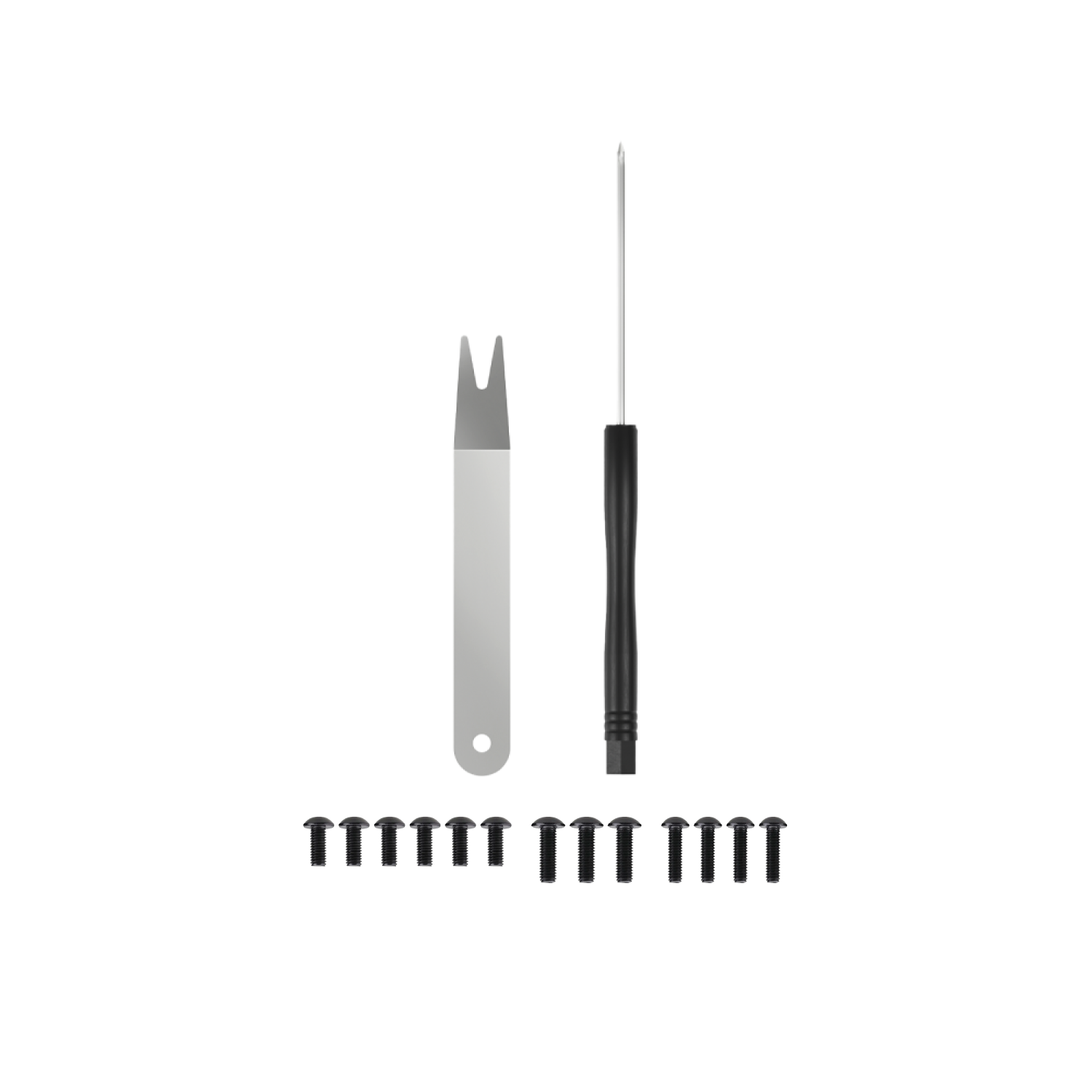

Propeller Removal Tool
X 1

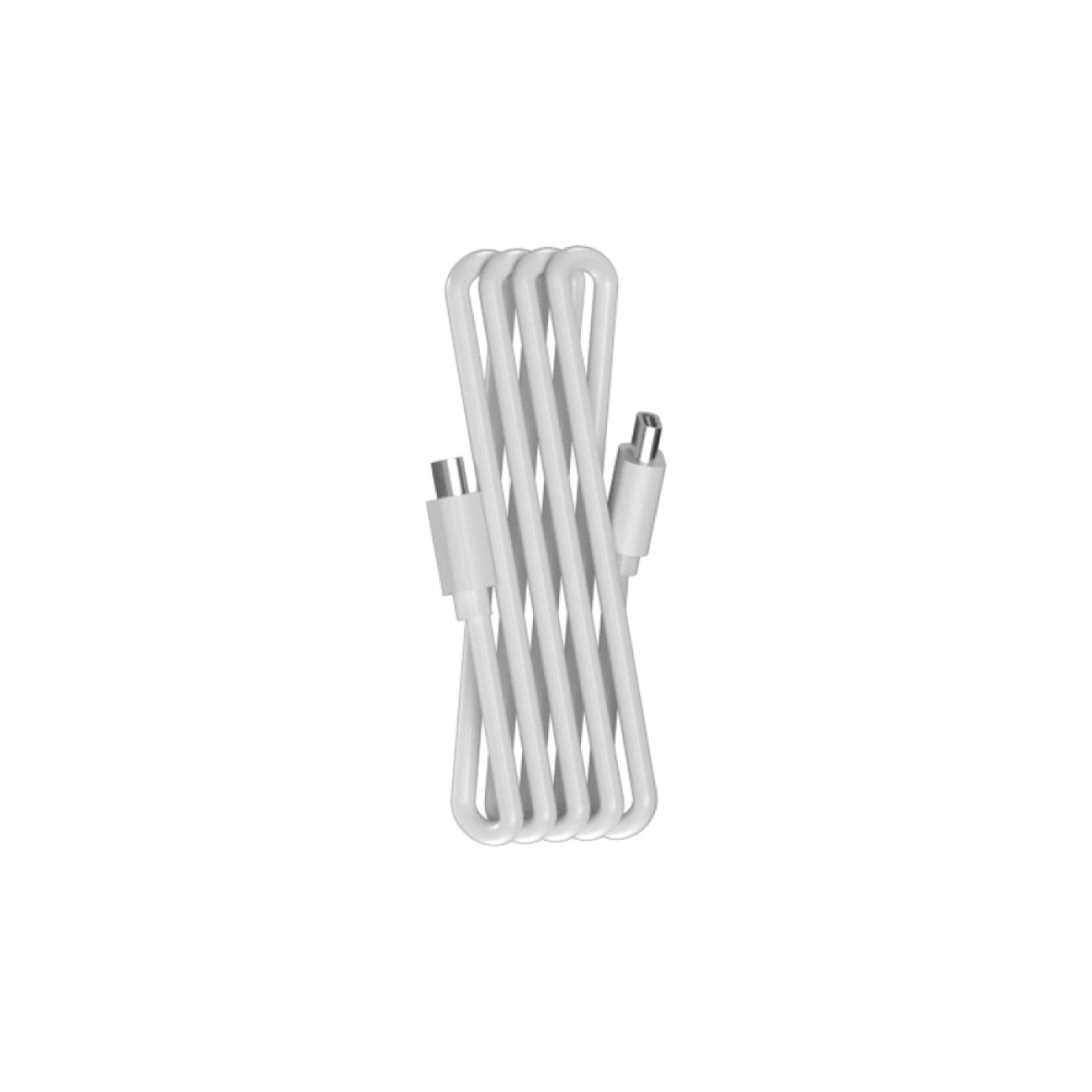

USB Charging Cable
X 1

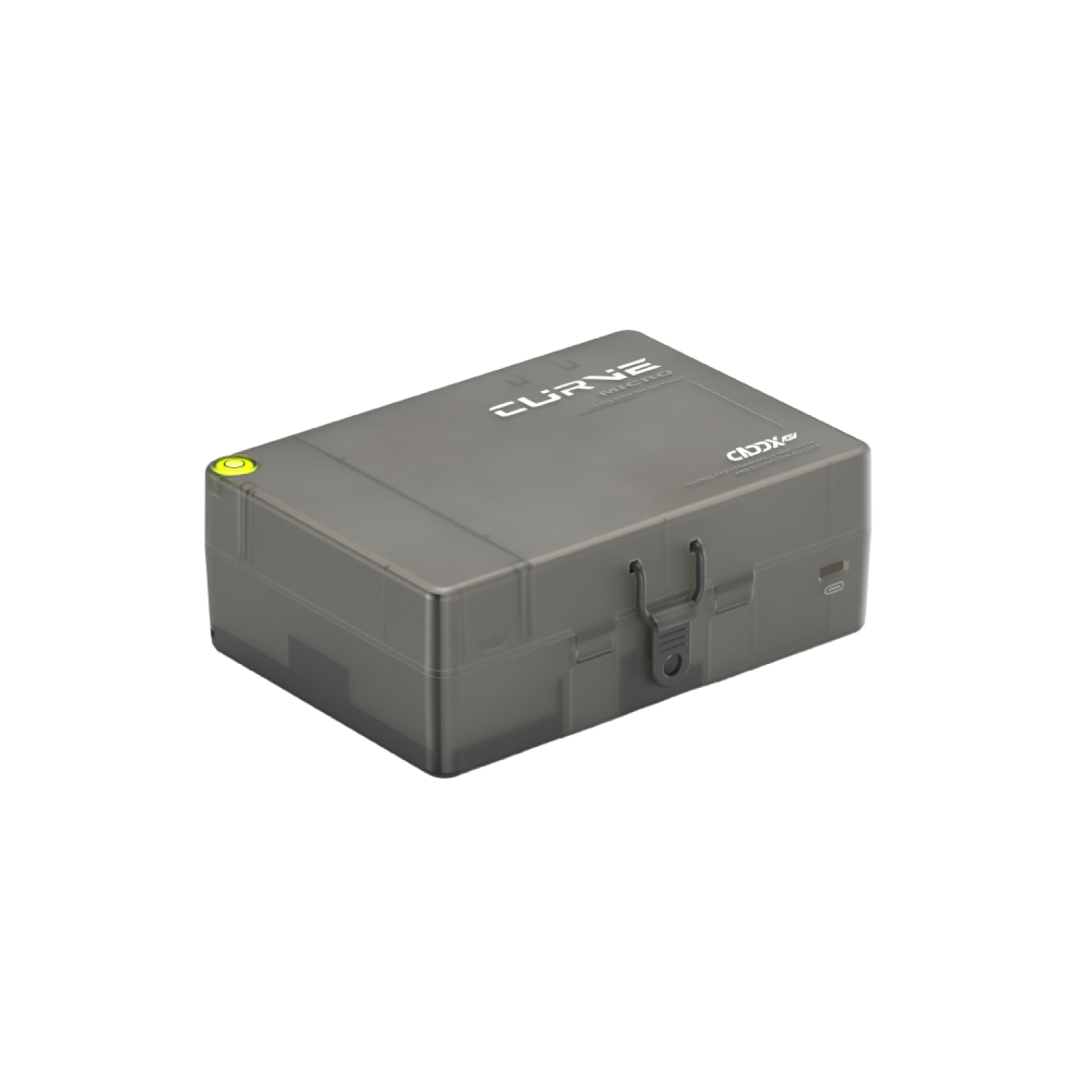

Storage Case
X 1

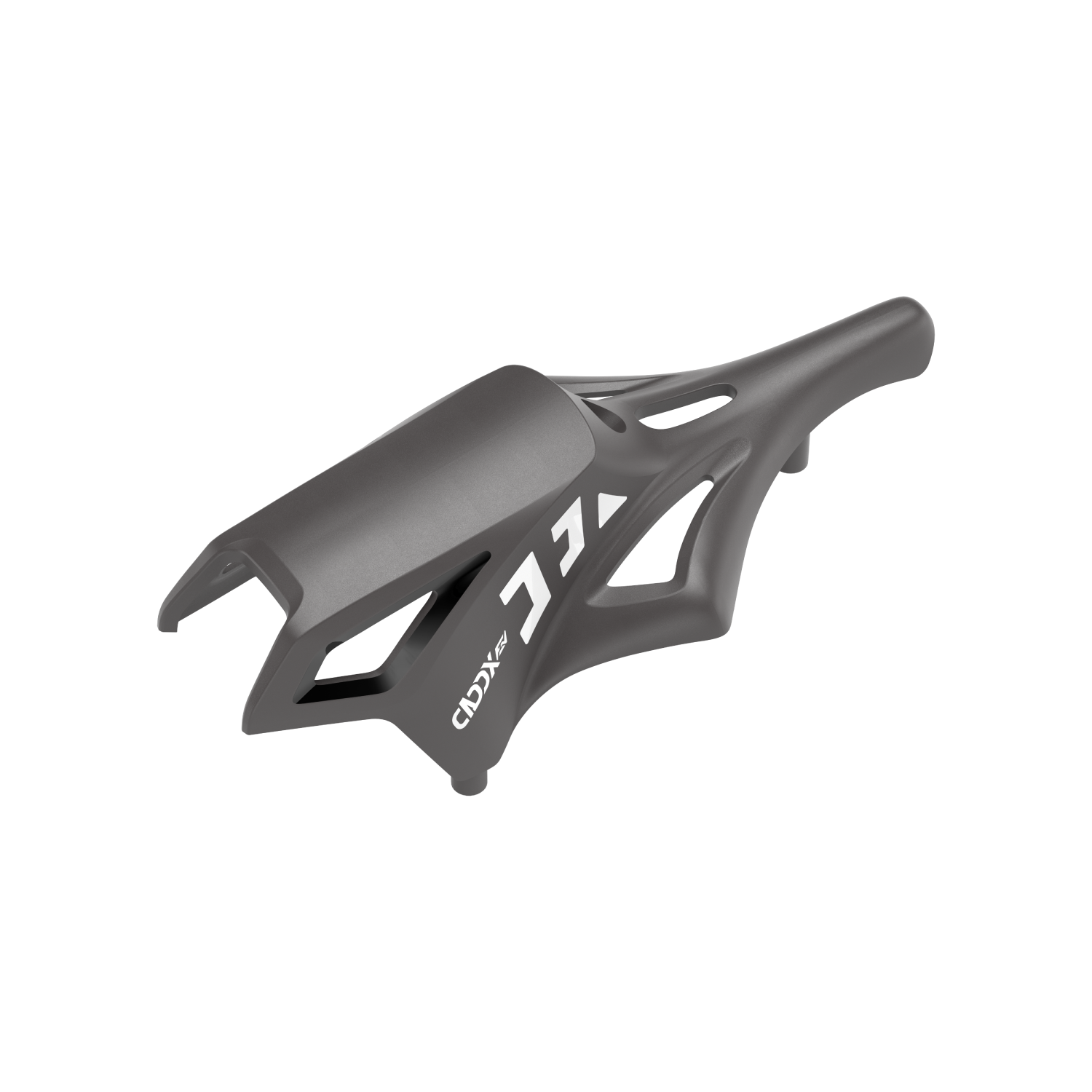

Canopy
X 1

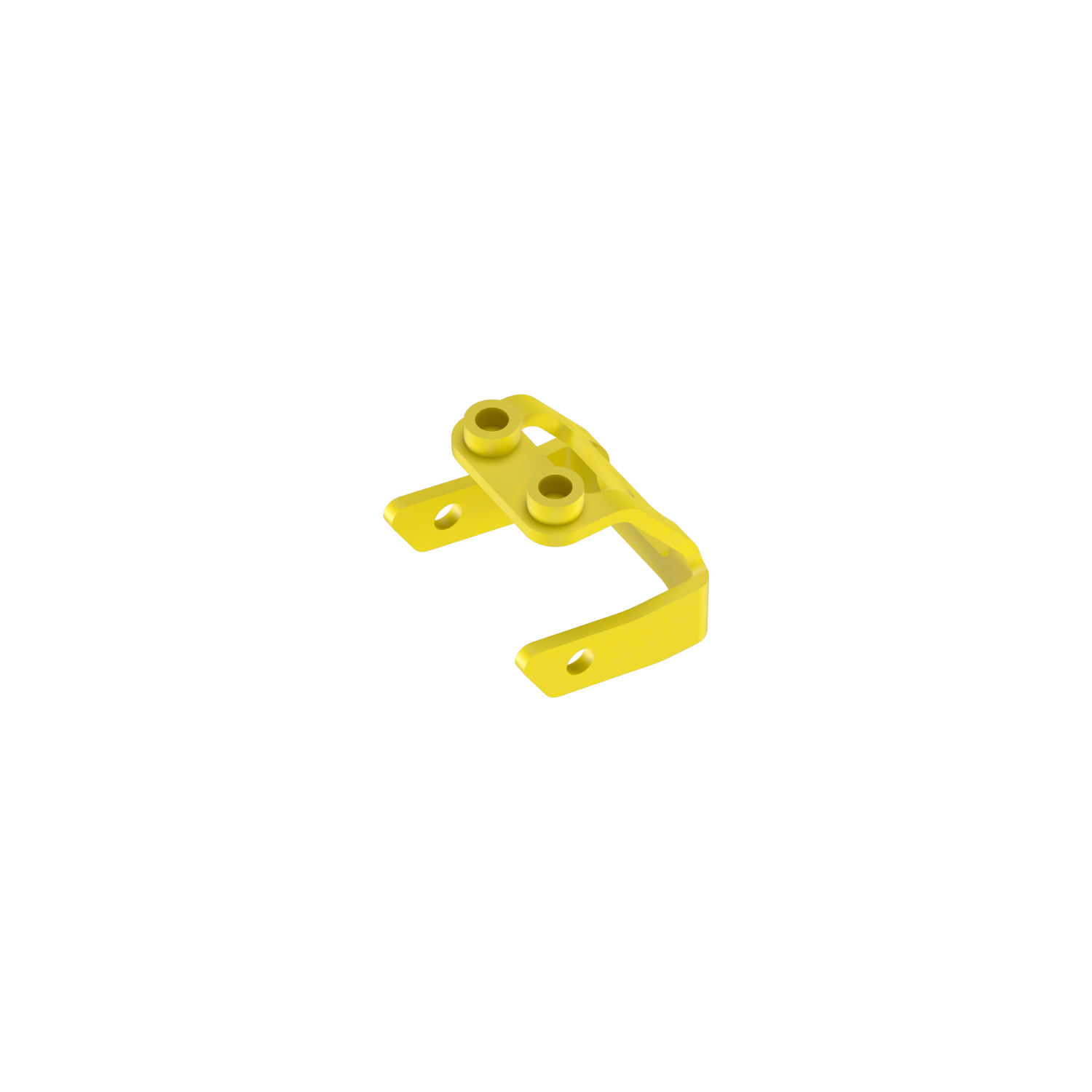

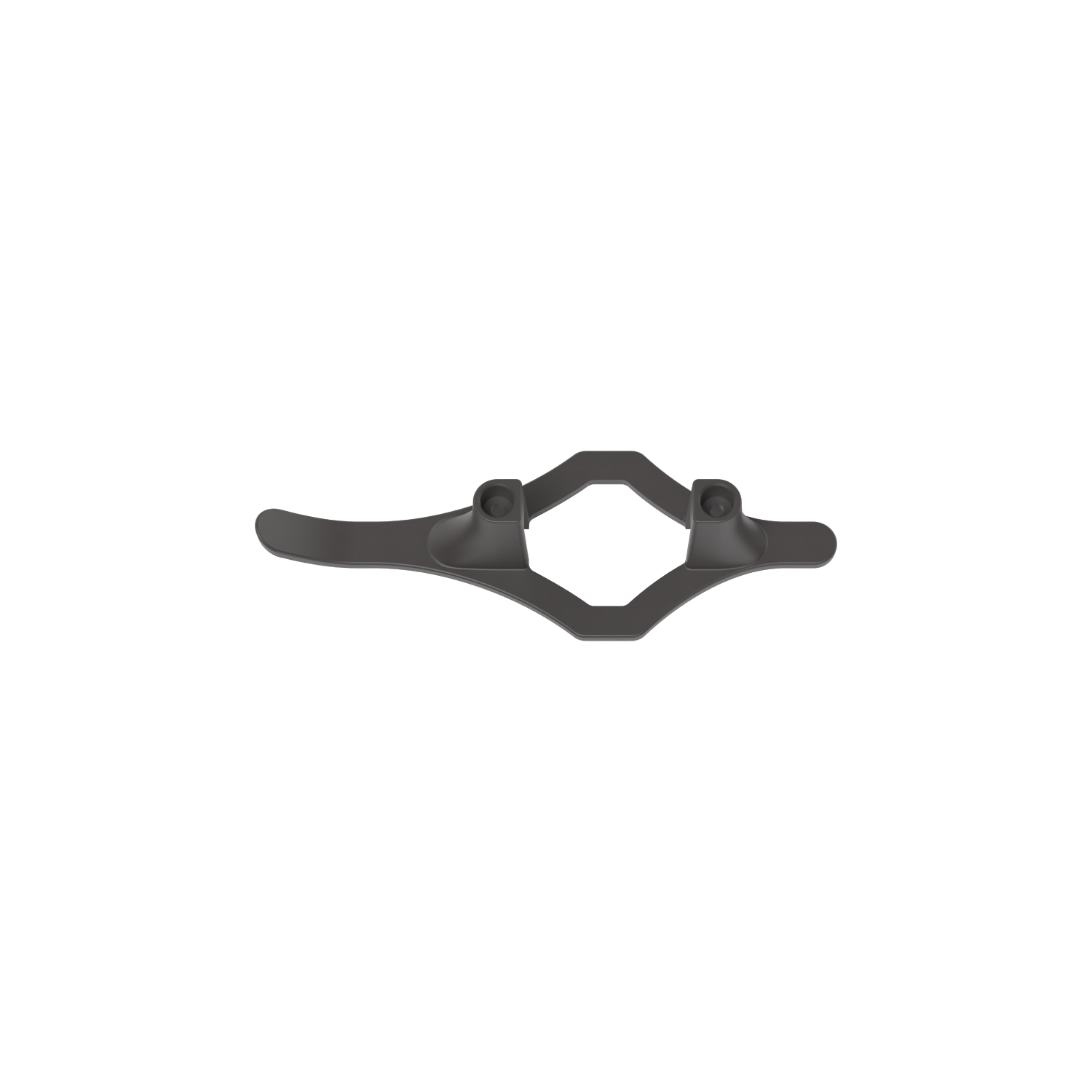

Camera Mount
X 1
Landing Feet
X 1

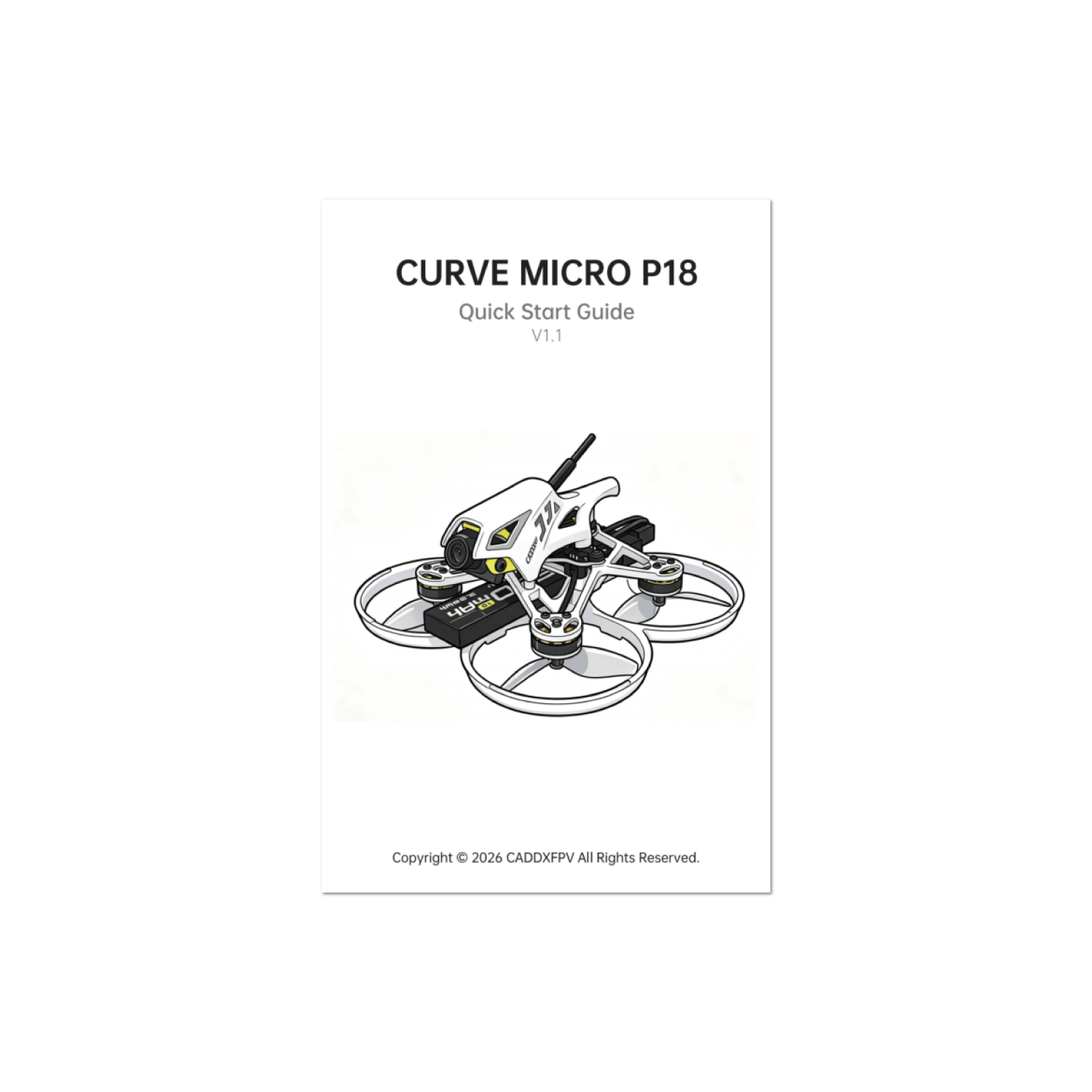

Quick Start Guide
X 1
FAQ
Does the Curve Micro P18 include a battery?
No. The drone battery is not included and must be purchased separately.
What video modes does Curve Micro P18 support?
Curve Micro P18 supports 1080p and 720p digital HD FPV video at 60fps, 100fps, and 120fps.
Does Curve Micro P18 support real-time audio?
Yes. The built-in microphone transmits motor and ambient sounds in real time alongside the HD FPV feed.
Which batteries does it support, and how long can it fly?
The standard A30 connector supports 1S 580mAh and 680mAh（Recommended） LiPo batteries, providing approximately 8 minutes of flight time per pack under normal flying conditions. Batteries are sold separately, while a six-channel fast charger is included.
Which receiving devices are compatible?
Curve Micro P18 works with Ascent-series FPV goggles, Ascent VRX, and Ascent VRX Pro.
Can the VTX be replaced or upgraded?
Yes. Curve Micro P18 supports Walksnail Ascent Lite, Avatar 1S Lite, Ascent Lite+, and Avatar 1S VTX modules, along with compatible third-party options. Firmware can be updated through Type-C using CADDX PC Tool.
