Punchy Brushless Power
The 1102 24000KV brushless motors deliver punchy power and crisp throttle response for fast climbs and freestyle maneuvers

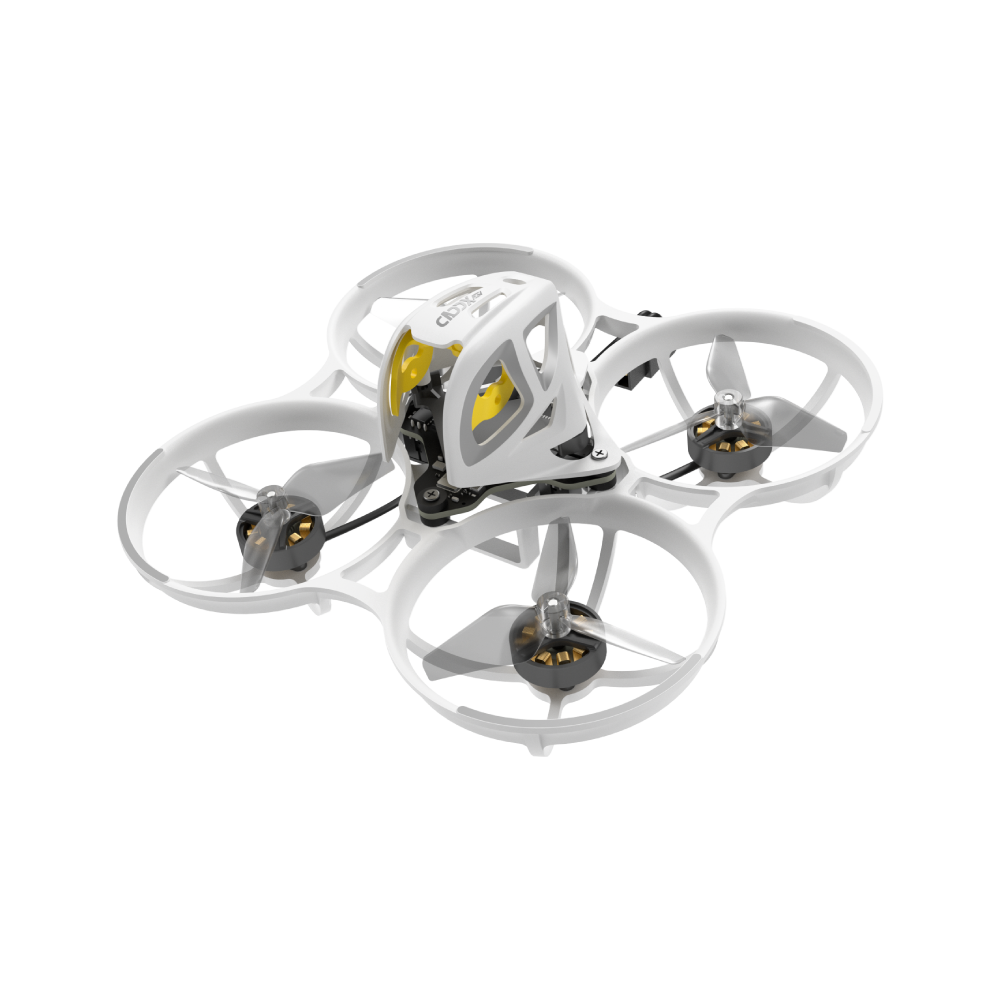

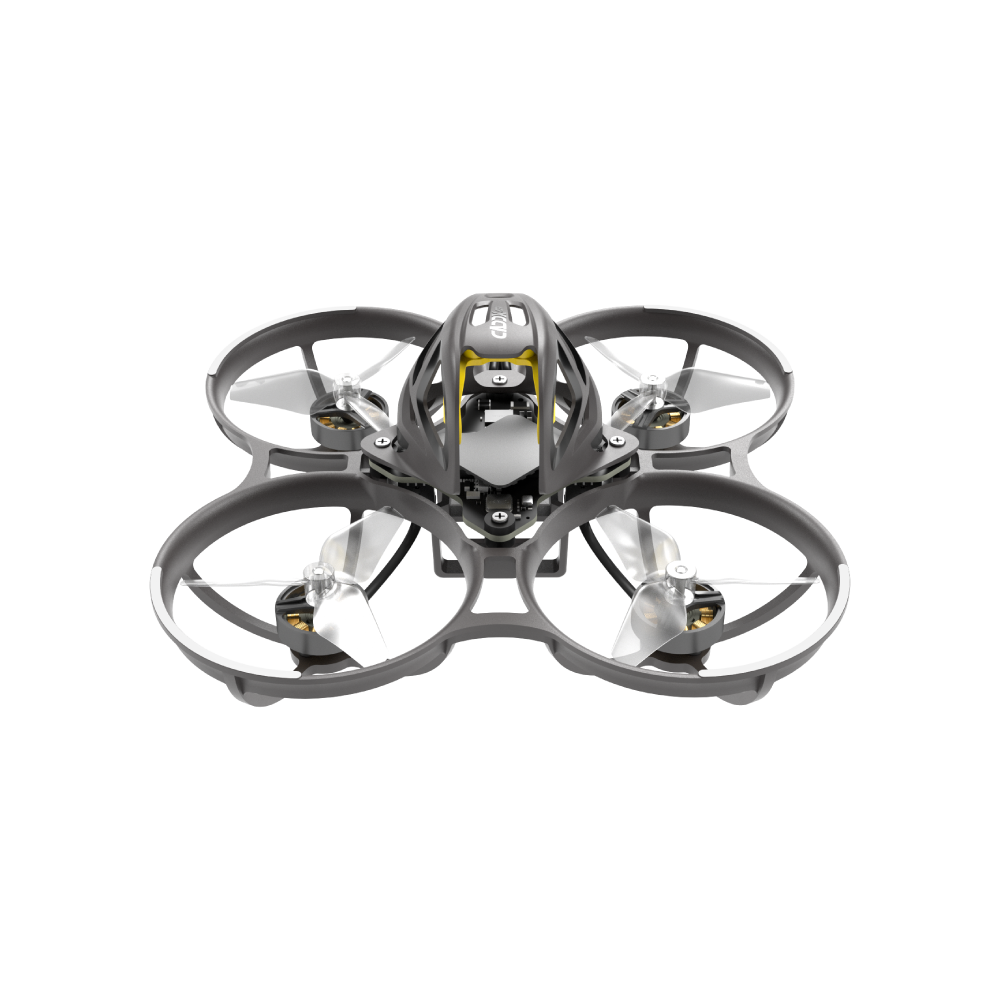

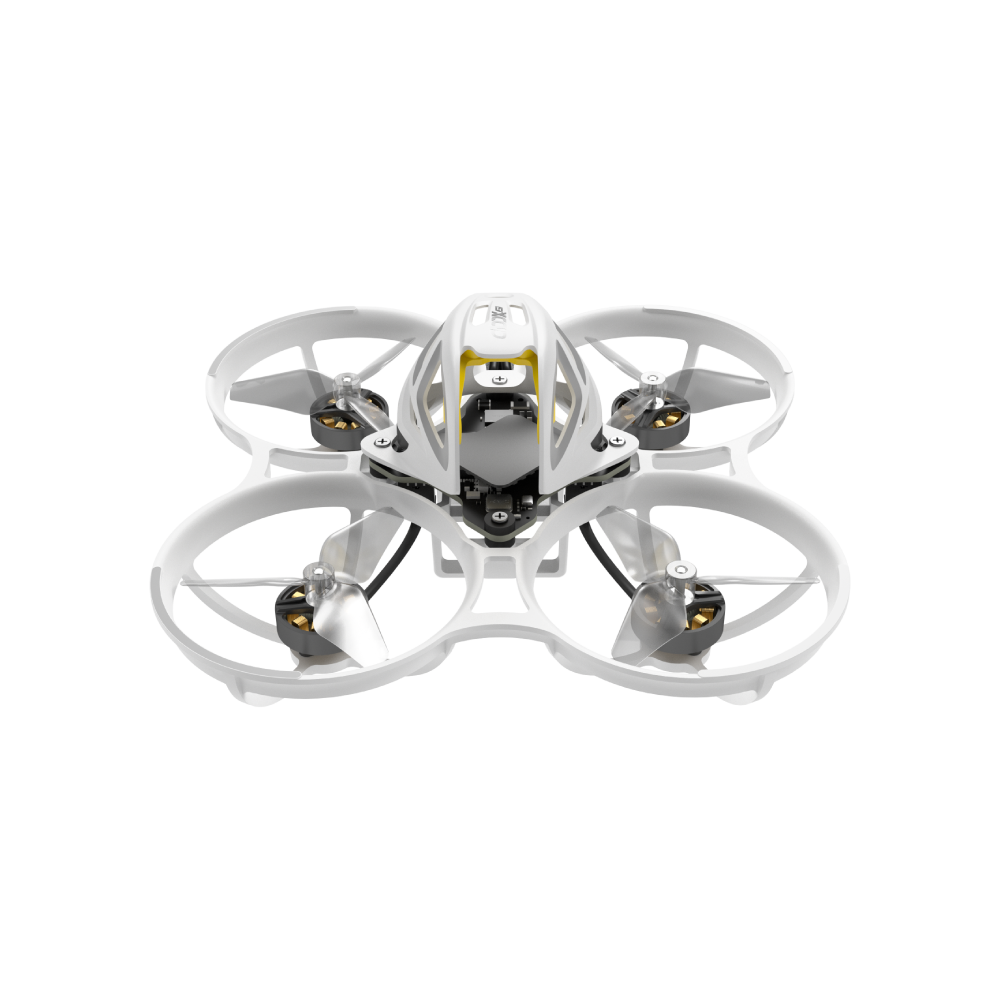

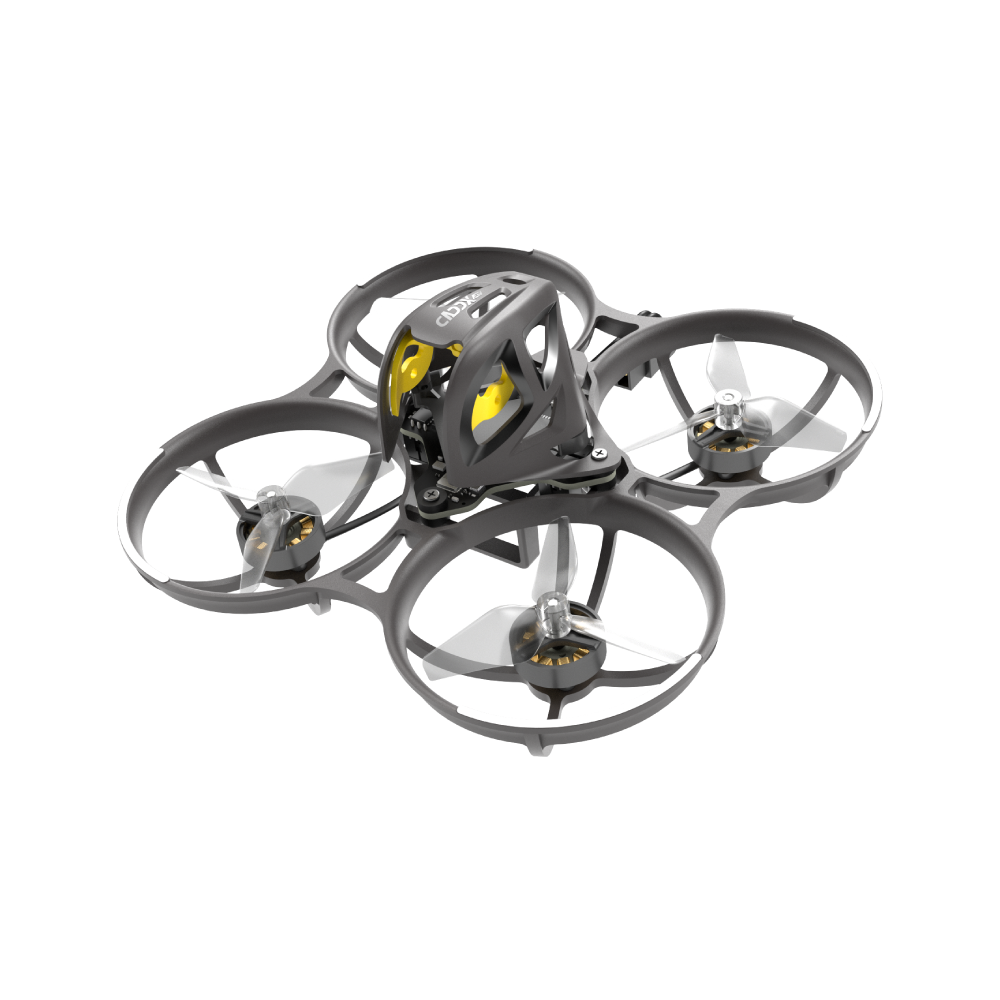

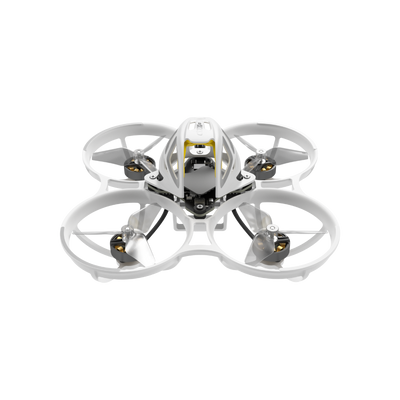

CaddxFPV Curve Micro 16 PNP Whoop Power Kit
- Lightweight and Durable Design: A one-piece injection-molded frame keeps Curve Micro 16 PNP Power Kit at just 32g, sturdy and smooth. The 75mm wheelbase fits tight spaces and open skies, and full prop guards keep indoor and outdoor flights beginner-friendly.
- Responsive Brushless Power: The 1102 24000KV brushless motors provide ample power and quick throttle response for fast climbs, sharp direction changes, and freestyle flying.
- Smooth and Stable Control: The AXON 1S AIO flight controller and high-precision ICM gyro provide smooth, predictable handling through tight spaces and technical FPV lines.
- Flexible Battery and Charging: The standard A30 connector supports common 1S 580mAh and 680mAh LiPo batteries for approximately 5–7 minutes of flight time. The included six-port USB-C fast charger supports DC power, power banks, and vehicle power sources.
- Expandable VTX Platform: Replace the original VTX with an Ascent Lite or Walksnail Avatar 1S module, or choose from compatible third-party options. The Type-C port supports quick firmware updates through CADDX PC Tool.
Frequently Bought Together
Walksnail Avatar HD Mini 1s Kit
$109.00 USD
Walksnail Ascent HD Lite+ Kit
$39.99 USD
CADDXFPV CURVE 580mAh & 680mAh 1S 3.8V 95C FPV Lipo Battery with A30 connector
$30.99 USD
Safe & Secure
Pay with Ease
Trusted Delivery
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty
Lifetime Customer Support
CaddxFPV Curve Micro 16 PNP Whoop Power Kit
CaddxFPV Curve Micro 16 PNP Whoop Power Kit
Sale price$79.99 USD

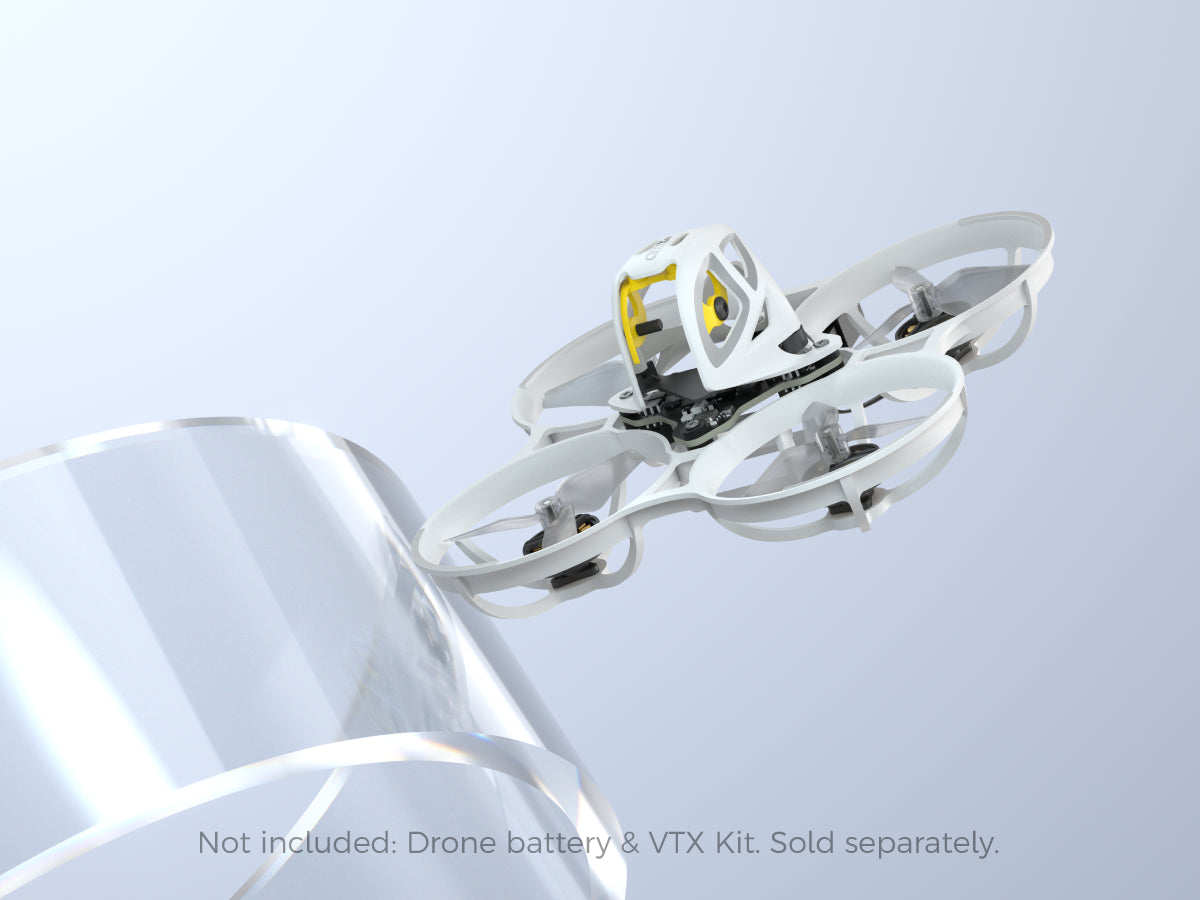

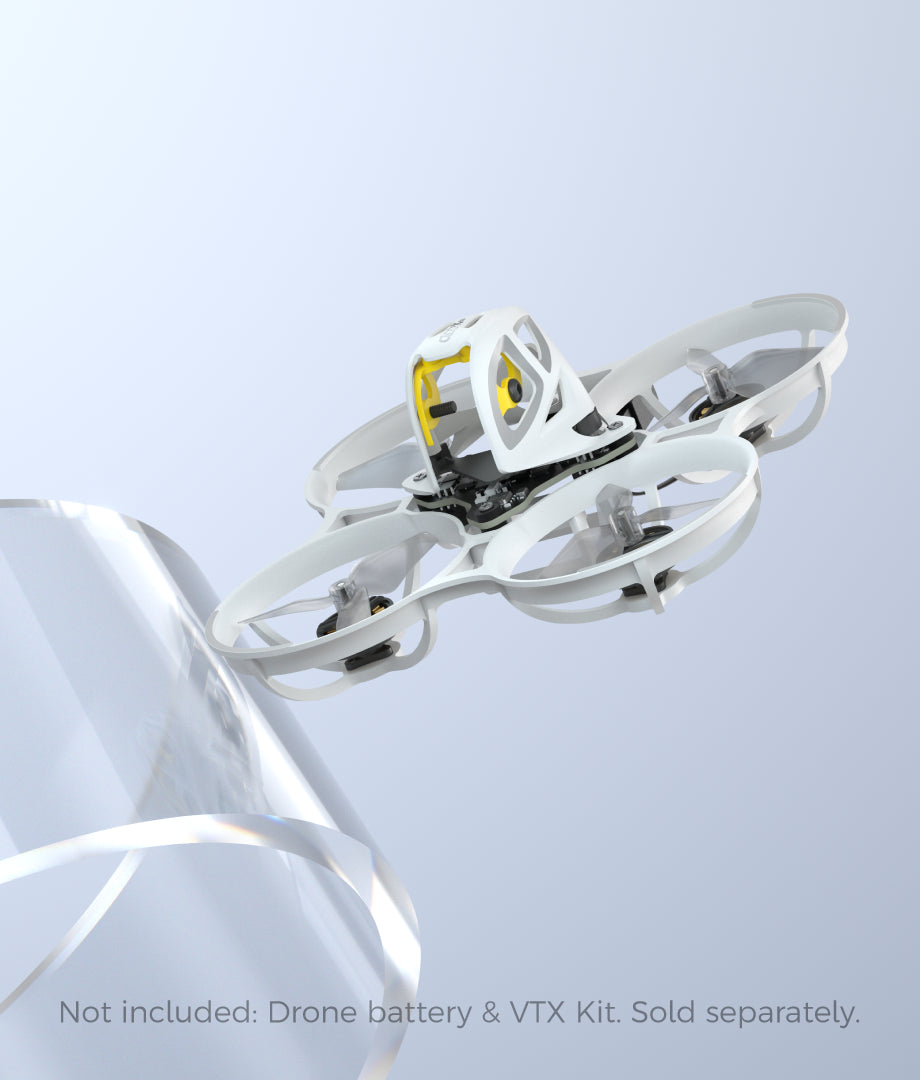

Lightweight. Built Tough
The one-piece injection-molded frame keeps Curve Micro 16 PNP light at just 32g, with a sturdy build and smooth finish for indoor and outdoor flying

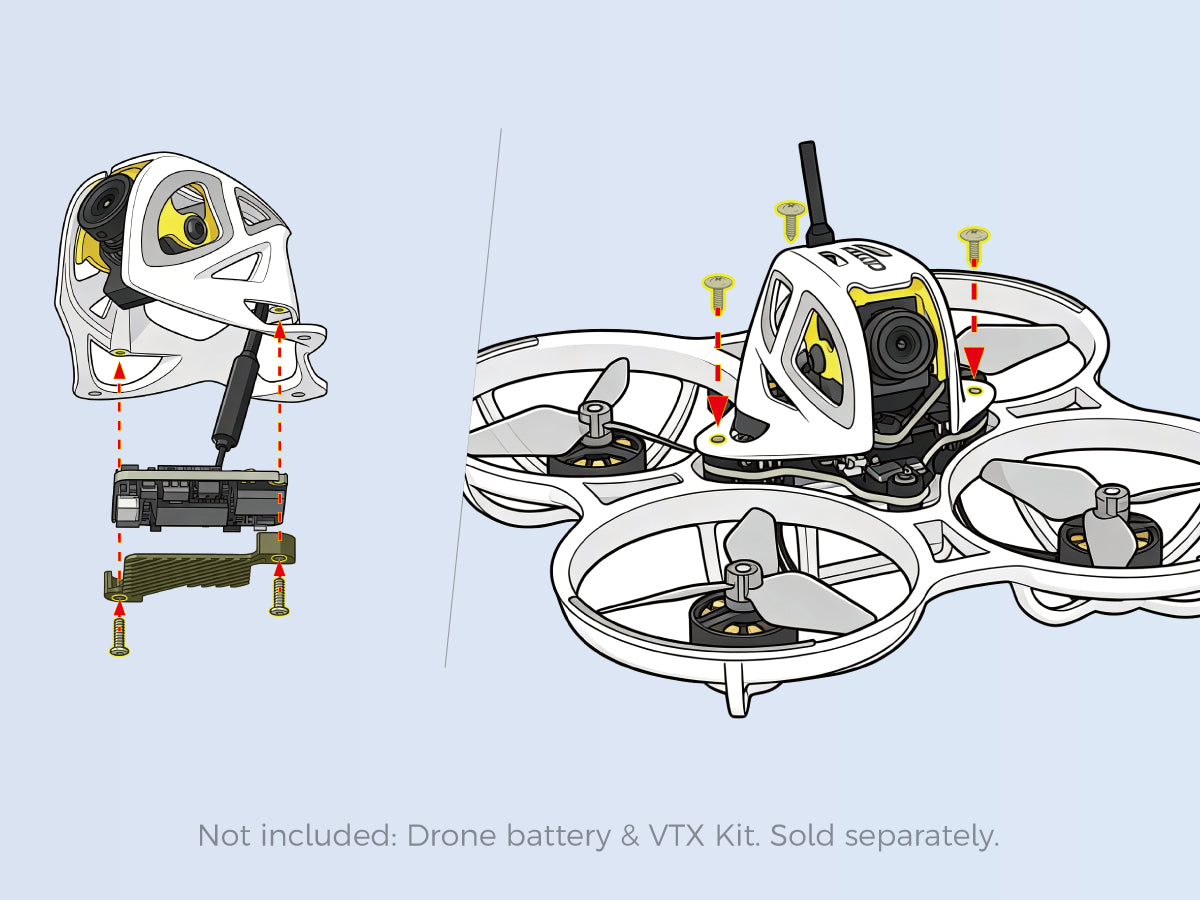

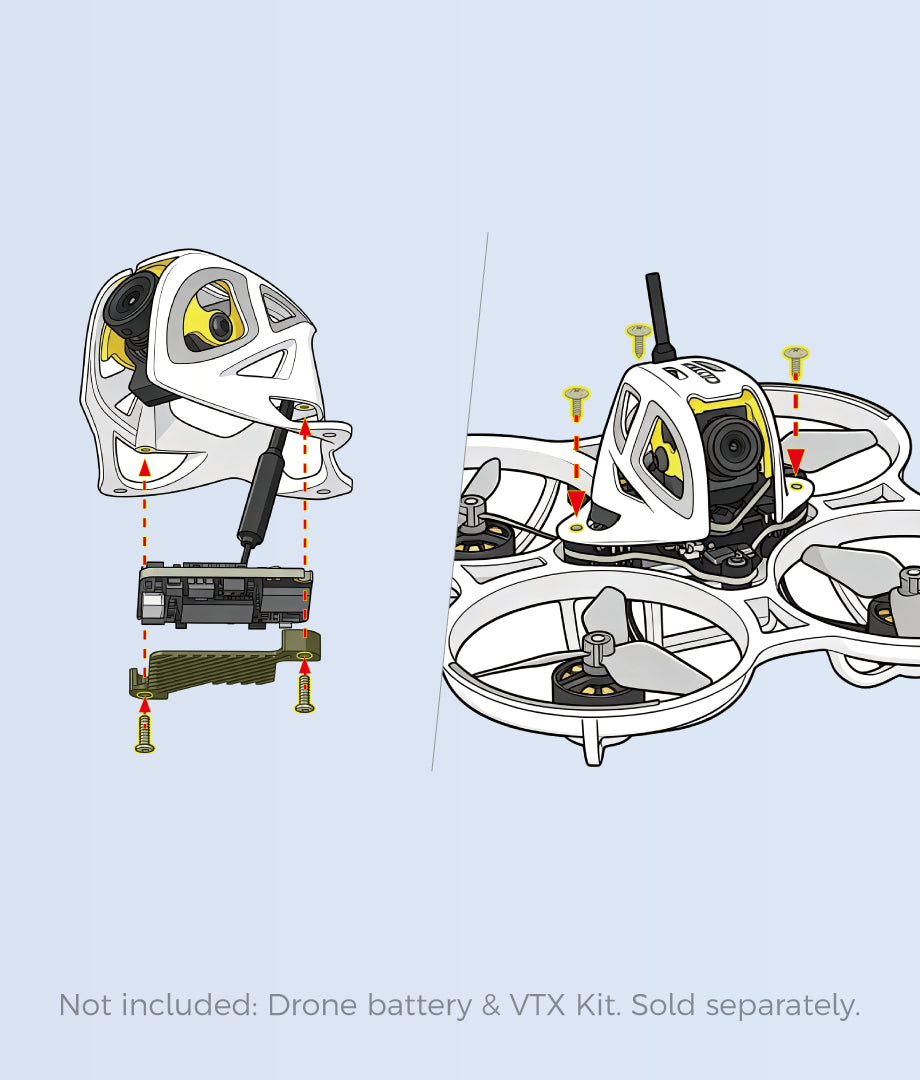

Easy Setup. More Build Choices
Curve Micro 16 supports Walksnail Avatar 1S, Avatar 1S Lite, Ascent Lite+, Ascent Lite and compatible third-party VTX modules. The Type-C port enables quick firmware updates through CADDX PC Tool

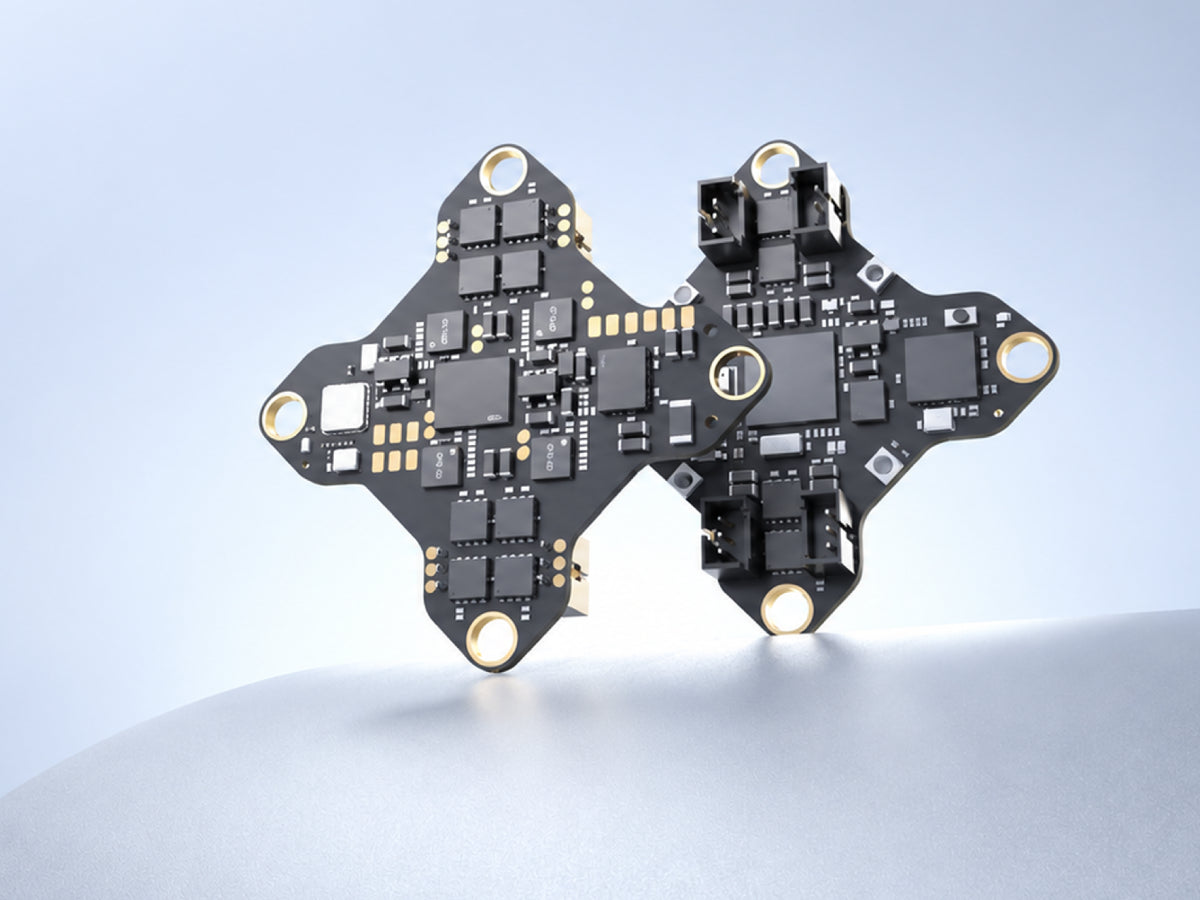

Smooth Predictable Control
The AXON 1S AIO flight controller and high-precision ICM gyro deliver smooth, stable handling, helping Curve Micro 16 stay predictable through tight spaces and technical FPV lines

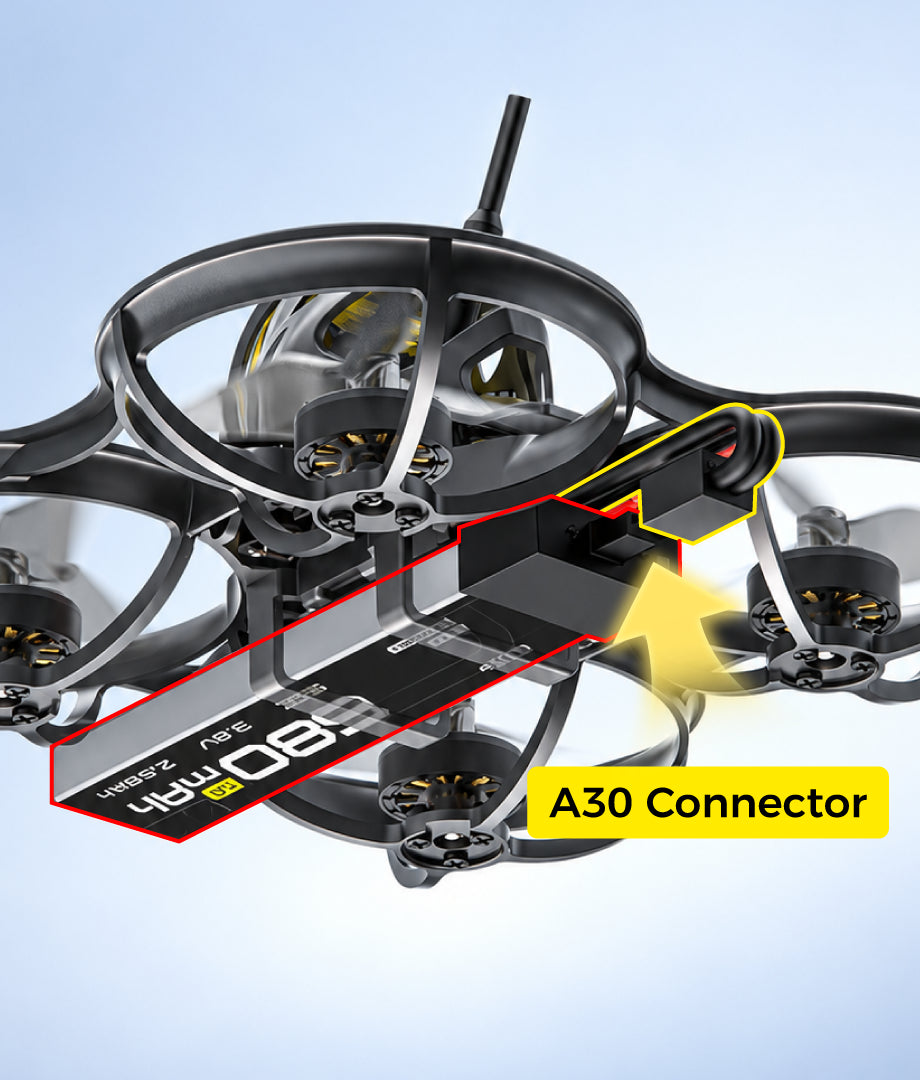

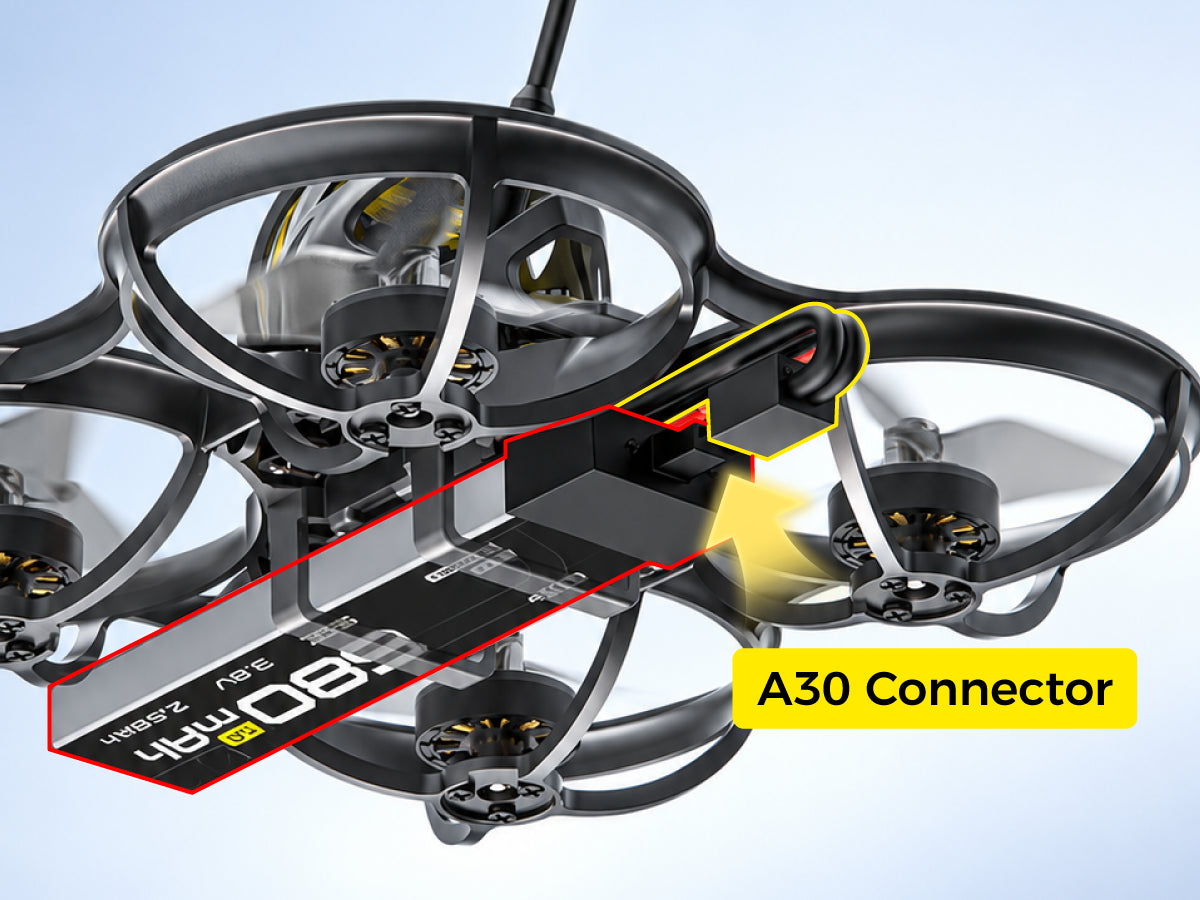

Flexible Power
The standard A30 connector supports 1S 580mAh and 680mAh LiPo batteries for approximately 5–7 minutes of flight time. The included six-port Type-C fast charger offers flexible charging at home or in the field
Immersive FPV
High-frame-rate HD video and real-time audio create a more immersive FPV experience
The built-in microphone transmits motor and ambient sounds in real time alongside the HD FPV feed
Built for Every Flight
Park Flying
Outdoor Adventure
Indoor Freestyles
Park Flying
Outdoor Adventure
Indoor Freestyles
SPECS
Name
Curve Micro 16 PNP Power Kit
FC
AXON 1S AIO V2.0
ESC
1S 12A
Receiver
ELRS V3.5.0
Motor
1102
Propeller
HQ 40mm 1.6X1X3
Wheelbase
75mm
PWR Port
A30
Flight Time
6min
Weight
32g (±2g)
Processor
STM32G473
Gyroscope
ICM42688 /BMI270
Blackbox
16M
BEC
5V3A
FC Voltage
1S
FC Firmware
CADDXG473-2026.6
ESC Current
12A (Continuous);18A (Peak)
ESC Firmware
A-X-5
Tune Port
SH1.0-4P
Motor Port
JST1.25-3P
In the Box
Drone Frame & Motors ( No VTX/Battery )
X 1
Propeller Set
X 1
1S AIO V2.0
X 1
4-Pin Cable
X 1
6-Pin to 4-Pin Cable
X 1
Propeller Removal Tool
X 1
USB Charging Cable
X 1
Quick Start Guide
X 1
FAQ
Does the CURVE Micro 16 PNP Power Kit include a VTX Kit ?
No. The VTX Kit is not included and must be purchased separately.
Does the CURVE Micro 16 PNP Power Kit include a battery?
No. The drone battery is not included and must be purchased separately.
Which batteries does it support, and how long can it fly?
The standard A30 connector supports 1S 580mAh and 680mAh LiPo batteries, providing approximately 5–7 minutes of flight time per pack under normal flying conditions. Batteries are sold separately, while a six-channel fast charger is included.
