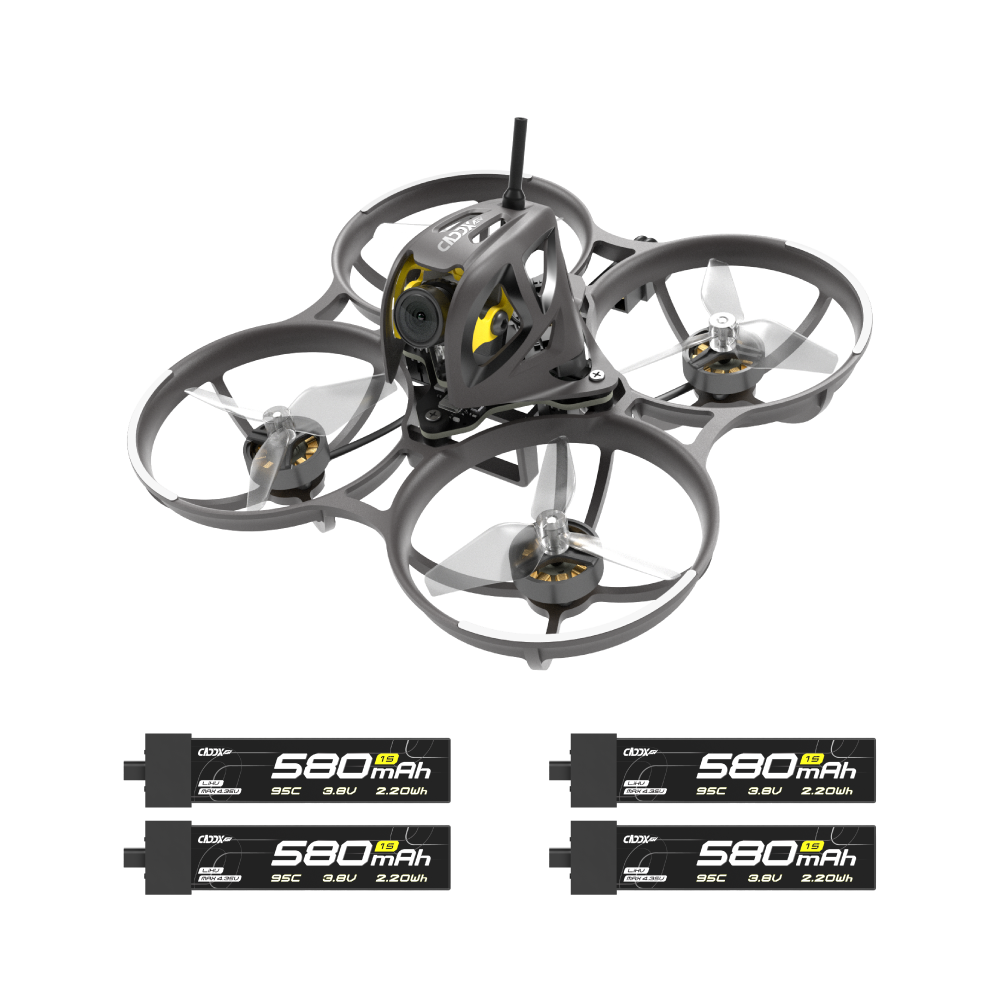

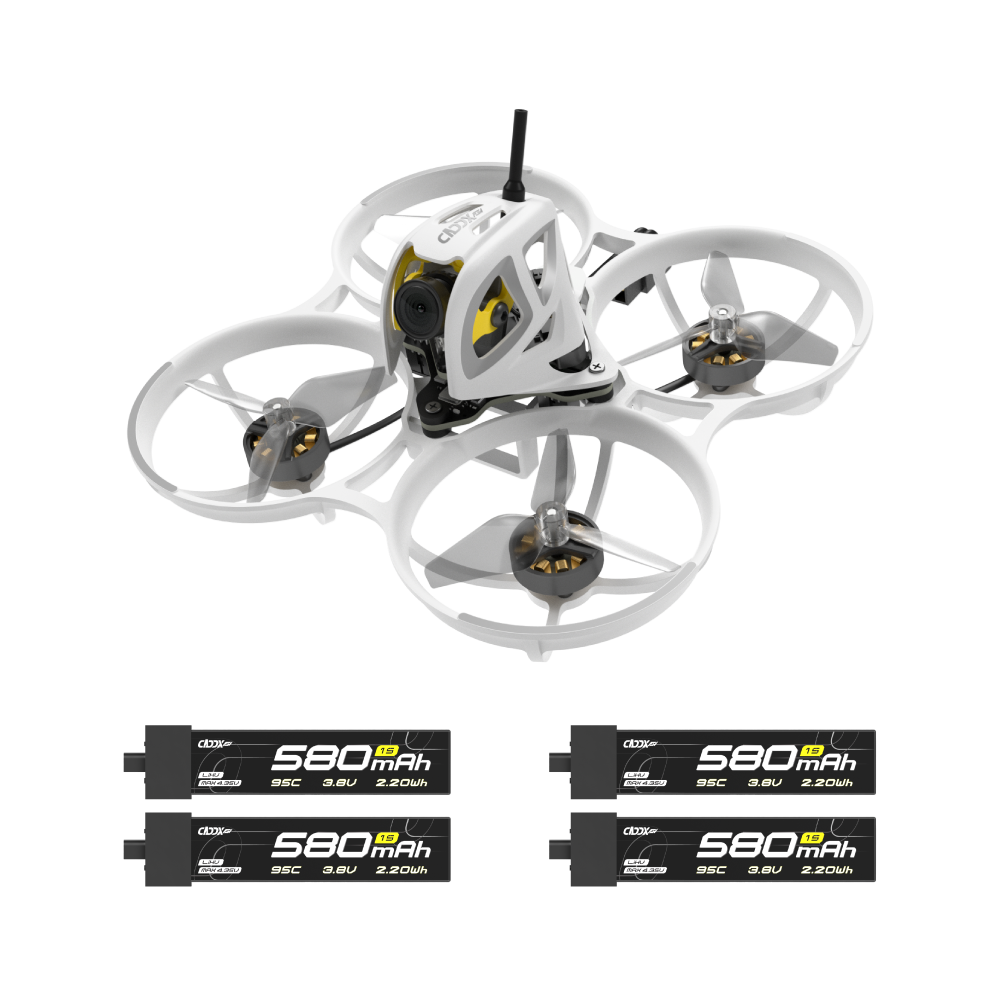

CaddxFPV Curve Micro 16 + 580mAh Battery Pack (4 Pcs)
- Lightweight and Durable Design: The 48g one-piece injection-molded frame combines everyday durability with agile handling for indoor practice, backyard freestyle, and tight FPV lines.
- Immersive HD FPV Video: Up to 1080p/120fps video, 35ms latency, 500mW digital video transmission, and a 147° ultra-wide field of view deliver a smooth, immersive FPV experience. Live audio transmission supports receiver-side video and audio recording in 60fps modes.
- Responsive Brushless Power: The 1102 24000KV brushless motors provide ample power and quick throttle response for fast climbs, sharp direction changes, and freestyle flying.
- Smooth and Stable Control: The AXON 1S AIO flight controller and high-precision ICM gyro provide smooth, predictable handling through tight spaces and technical FPV lines.
- Flexible Battery and Charging: The standard A30 connector supports common 1S 580mAh and 680mAh LiPo batteries for approximately 5–7 minutes of flight time. The included six-port USB-C fast charger supports DC power, power banks, and vehicle power sources.
- Expandable VTX Platform: Replace the original VTX with an Ascent Lite or Walksnail Avatar 1S module, or choose from compatible third-party options. The Type-C port supports quick firmware updates through CADDX PC Tool.
Choice
Frequently Bought Together
CaddxFPV Alink Controller
$49.00 USD
Walksnail Ascent HD Goggles
$149.00 USD
Walksnail Ascent FPV VRX Pro
$149.00 USD
Safe & Secure
Pay with Ease
Trusted Delivery
Fast, Free Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty
Lifetime Customer Support
CaddxFPV Curve Micro 16 + 580mAh Battery Pack (4 Pcs)
CaddxFPV Curve Micro 16 + 580mAh Battery Pack (4 Pcs)
Sale price$159.99 USD
Tiny Whoop. Total Immersion.
Lightweight
Smooth Control
Punchy Power
Easily Upgradable
Multi-Device Viewing
Lightweight. Built Tough
The one-piece injection-molded frame keeps Curve Micro 16 light at just 48g, with a sturdy build and smooth finish for indoor and outdoor flying
Smooth Predictable Control
The AXON 1S AIO flight controller and high-precision ICM gyro deliver smooth, stable handling, helping Curve Micro 16 stay predictable through tight spaces and technical FPV lines
Punchy Brushless Power
The 1102 24000KV brushless motors deliver punchy power and crisp throttle response for fast climbs and freestyle maneuvers
Ready to Evolve
Curve Micro 16 supports Walksnail Ascent Lite, Ascent Lite+, Avatar 1S, and compatible third-party VTX modules. The Type-C port enables quick firmware updates through CADDX PC Tool
Multi-Device Viewing
Works with Ascent-series FPV goggles, Ascent VRX, and Ascent VRX Pro for flexible digital HD FPV viewing

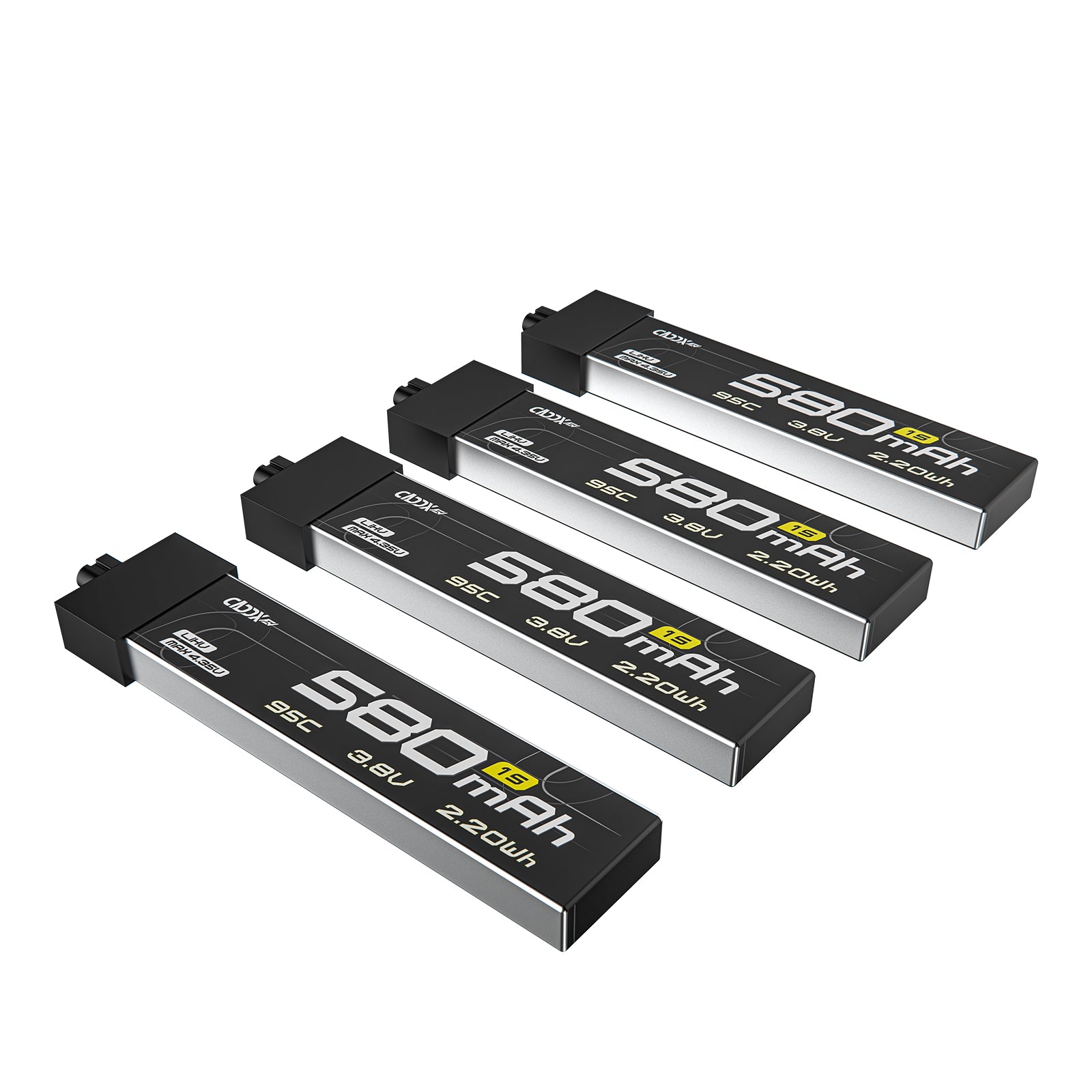

Powerful. Lasting. Versatile.
95C Discharge
Extended Runtime
High-Density LiHV
A30 Connector
Safety Protections
95C Power for Responsive Flight
A 95C continuous discharge rate delivers strong, consistent power for responsive throttle control and confident acceleration during demanding FPV maneuvers.

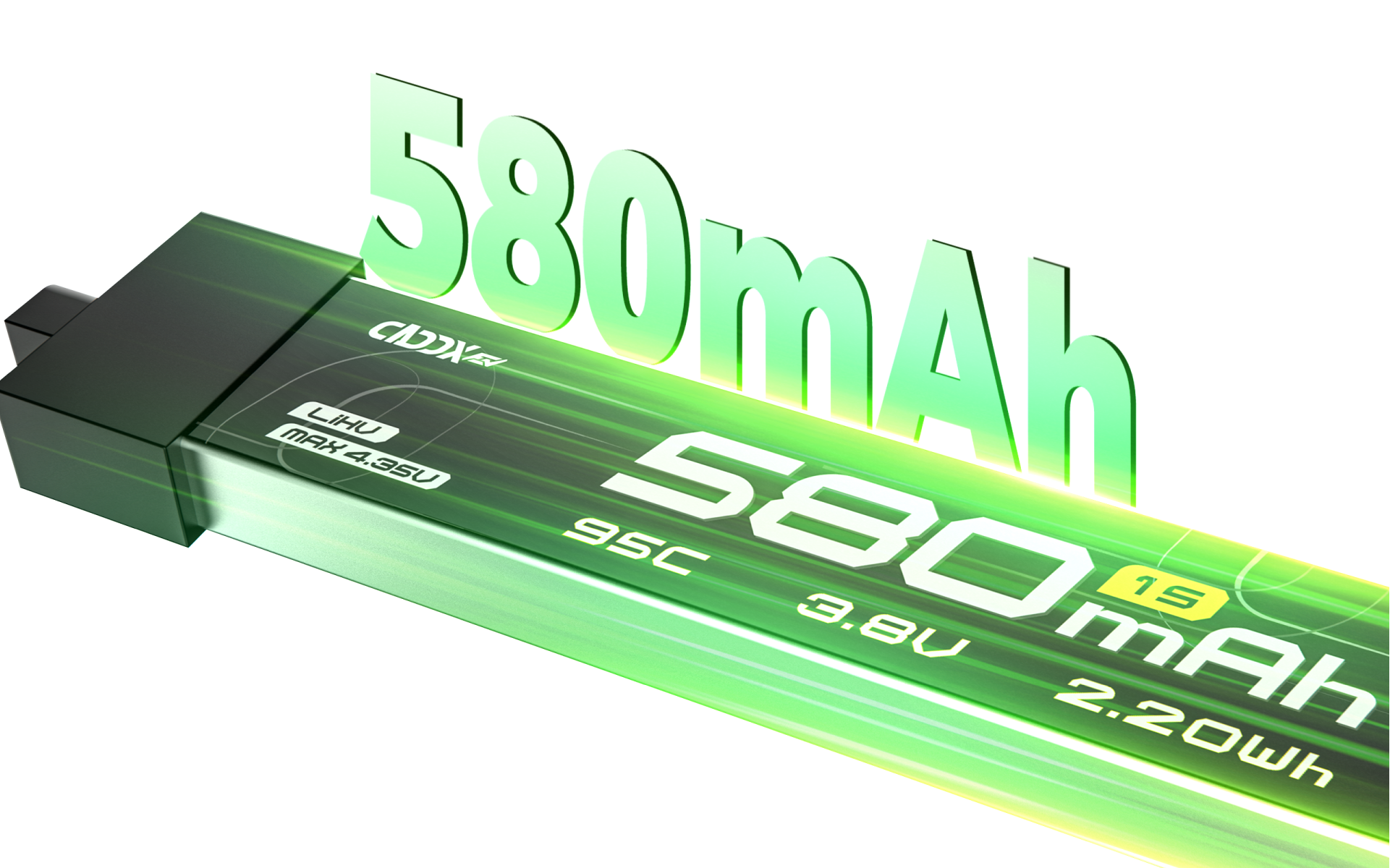

More Time in the Air
The 580mAh capacity provides approximately 5–7 minutes of flight time per charge, giving you more time to practice, explore and enjoy every flight.

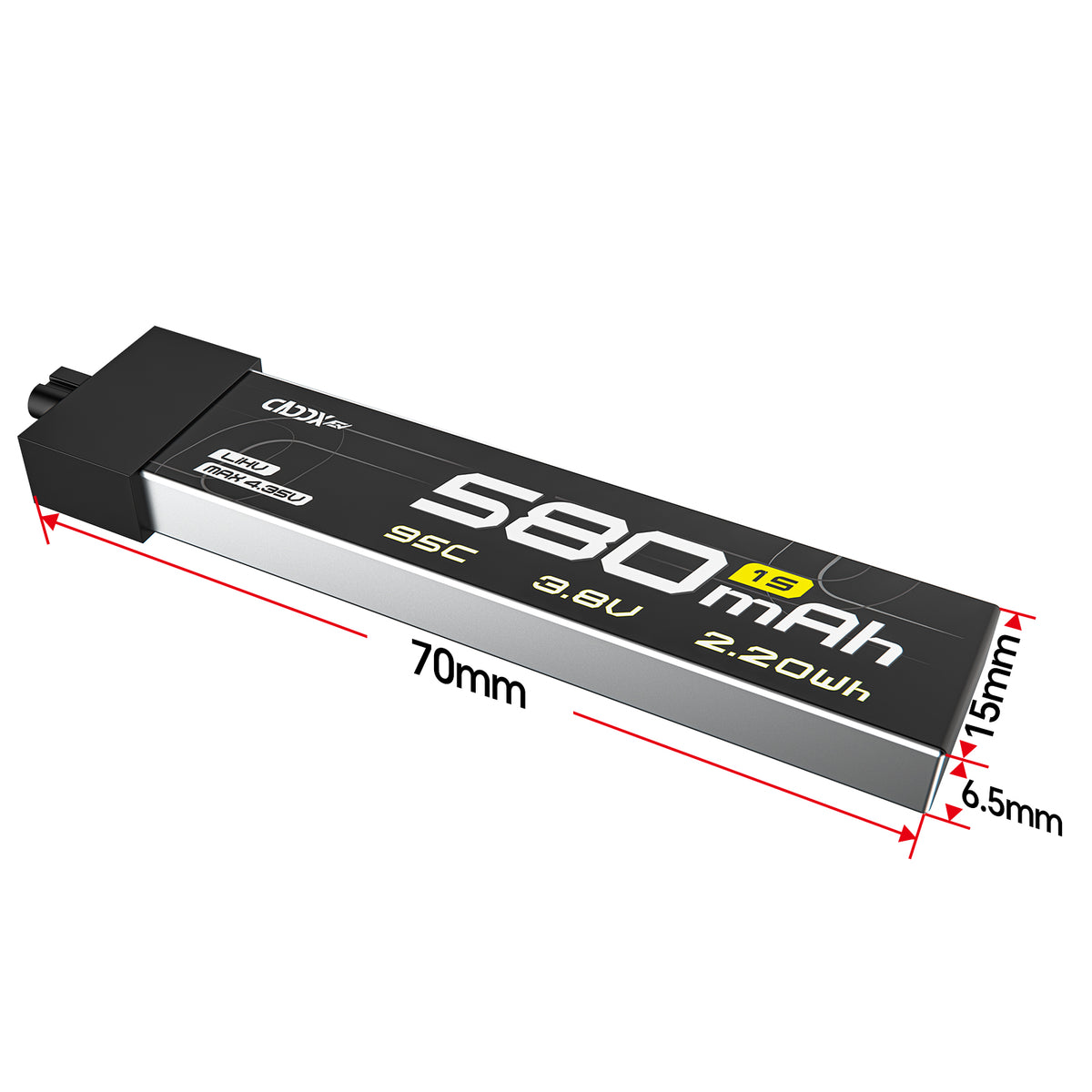

More Energy in a Compact Battery
The high-density LiHV cell features a 3.8 V nominal voltage and charges up to 4.35 V, delivering greater energy capacity in a compact, lightweight format.
Plug In and Power Up
The standard A30 connector provides a direct connection to compatible A30-equipped 1S FPV devices, making battery installation and replacement quick and convenient.
Multiple Safety Protections, Built to Last
Each battery cell undergoes strict screening and aging tests. Built-in overcharge, over-discharge and short-circuit protection helps extend cycle life, reduce the risk of swelling and provide reliable performance flight after flight.
Immersive FPV
High-frame-rate HD video and real-time audio create a more immersive FPV experience
The built-in microphone transmits motor and ambient sounds in real time alongside the HD FPV feed
Freestyle Flying
95C power for responsive freestyle moves
Aerial Creation
5–9 minutes runtime to capture every flight
Freestyle Flying
95C power for responsive freestyle moves
Aerial Creation
5–9 minutes runtime to capture every flight
SPECS
Name
Curve Micro 16
VTX
Ascent Lite+
FC
AXON 1S AIO V2.0
ESC
1S 12A
Receiver
ELRS V3.5.0
Motor
1102
Propeller
HQ 40mm 1.6X1X3
Wheelbase
75mm
PWR Port
A30
Flight Time
6min
Processor
STM32G473
Gyroscope
ICM42688 /BMI270
Blackbox
16M
BEC
5V3A
FC Voltage
1S
FC Firmware
CADDXG473-2026.6
ESC Current
12A (Continuous);18A (Peak)
ESC Firmware
A-X-5
Tune Port
SH1.0-4P
Motor Port
JST1.25-3P
Charger
6-Channel Charger
FC Protocol
USB PD/BC1.2
In Voltage
5V-12V
In Port
Type-C USB
Bat Type
LiHV 4.35V
Channel
6
Max Input Power
30w
Max.Charging Curr
1A
Dimension
101.5*30*14.5mm
In the Box
CURVE Micro 16 (Battery Not Included)
X 1
580mAh Battery
X 1
Propeller Set
X 1
1S AIO V2.0
X 1
6 Channel Charger
X 1
4-Pin Cable
X 1
6-Pin to 4-Pin Cable
X 1
Propeller Removal Tool
X 1
USB Charging Cable
X 1
Storage Case
X 1
Quick Start Guide
X 1
FAQ
What video modes does Curve Micro 16 support?
Curve Micro 16 supports 1080p and 720p digital HD FPV video at 60fps, 100fps, and 120fps.
Does Curve Micro 16 support real-time audio?
Yes. The built-in microphone transmits motor and ambient sounds in real time alongside the HD FPV feed.
Which receiving devices are compatible?
Curve Micro 16 works with Ascent-series FPV goggles, Ascent VRX, and Ascent VRX Pro.
Which batteries does it support, and how long can it fly?
The standard A30 connector supports 1S 580mAh and 680mAh LiPo batteries, providing approximately 5–7 minutes of flight time per pack under normal flying conditions. Batteries are sold separately, while a six-channel fast charger is included.
Can the VTX be replaced or upgraded?
Yes. Curve Micro 16 supports Walksnail Ascent Lite, Ascent Lite+, and Avatar 1S VTX modules, along with compatible third-party options. Firmware can be updated through Type-C using CADDX PC Tool.
