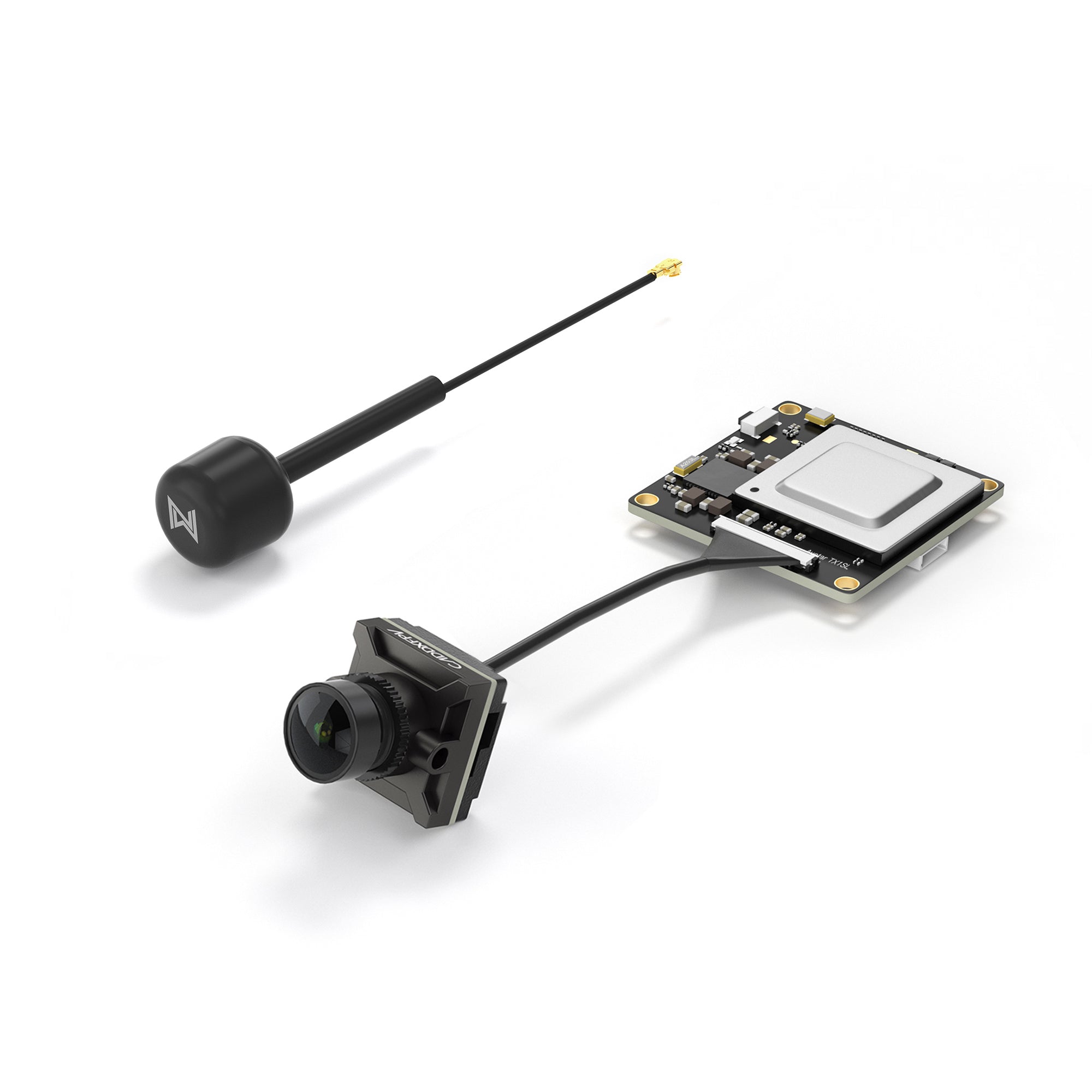

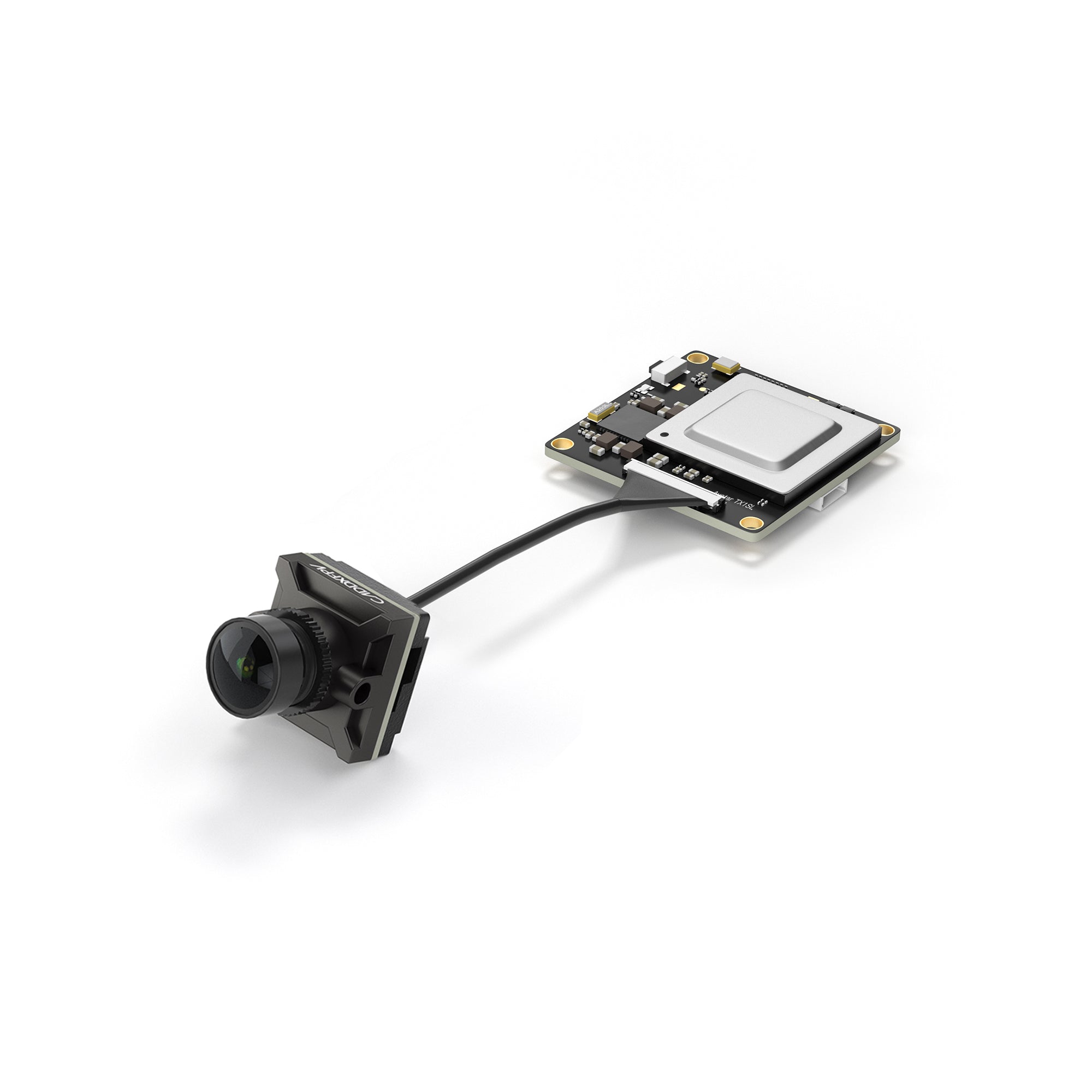

Walksnail Avatar HD Mini 1s Kit
- Ultra-Light VTX, Perfect for 75X-Class Builds: Weighing only 6.8g, the mini 1S VTX is engineered for micro FPV drones like 75X—offering uncompromised HD performance in tight, weight-sensitive builds.
- Stunning 1080P/60fps or 720P/120fps Video: Supports both standard and high frame rates, delivering crisp HD visuals with ultra-smooth motion—ideal for freestyle, indoor racing, or cinematic flying.
- Industry-Leading H.265 Encoding for Clarity & Efficiency: Powered by Walksnail’s advanced HD system, it utilizes H.265 compression to provide rich 1080P detail with excellent bandwidth efficiency—ensuring vivid colors and smooth streaming.
- 22ms Ultra-Low Latency for Real-Time Control: With an average latency of just 22ms under high frame rate mode, pilots enjoy near-instant visual feedback, allowing for precise maneuvering in fast-paced environments.
- Built-In 8G Storage for Onboard HD Recording: Easily record 1080P/60fps or 720P/100fps videos directly to the VTX’s internal 8G memory—no external DVRs required. Capture and review footage without adding extra weight.
- Flexible Power Input and Strong Output: Supports 3.1V–13V wide voltage input and delivers up to 500mW transmission power, ensuring stable and long-range signal performance across various 1S FPV platforms.
Frequently Bought Together
Walksnail Avatar FPV VRX Only
$219.00 USD
Walksnail Avatar HD Goggles X Only
$459.00 USD
Safe & Secure
Pay with Ease
Trusted Delivery
Fast & Reliable Shipping
30-Day Money-Back Guarantee
Hassle-Free Warranty
Lifetime Customer Support
Walksnail Avatar HD Mini 1s Kit
Walksnail Avatar HD Mini 1s Kit
Sale price$109.00
Features:
| 1080P/60fps | 3.1V-13V |
| 22ms low latency | Power 500mW |
| Built-in 8G storage | 6.8g light weight |
Bullet Points:
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

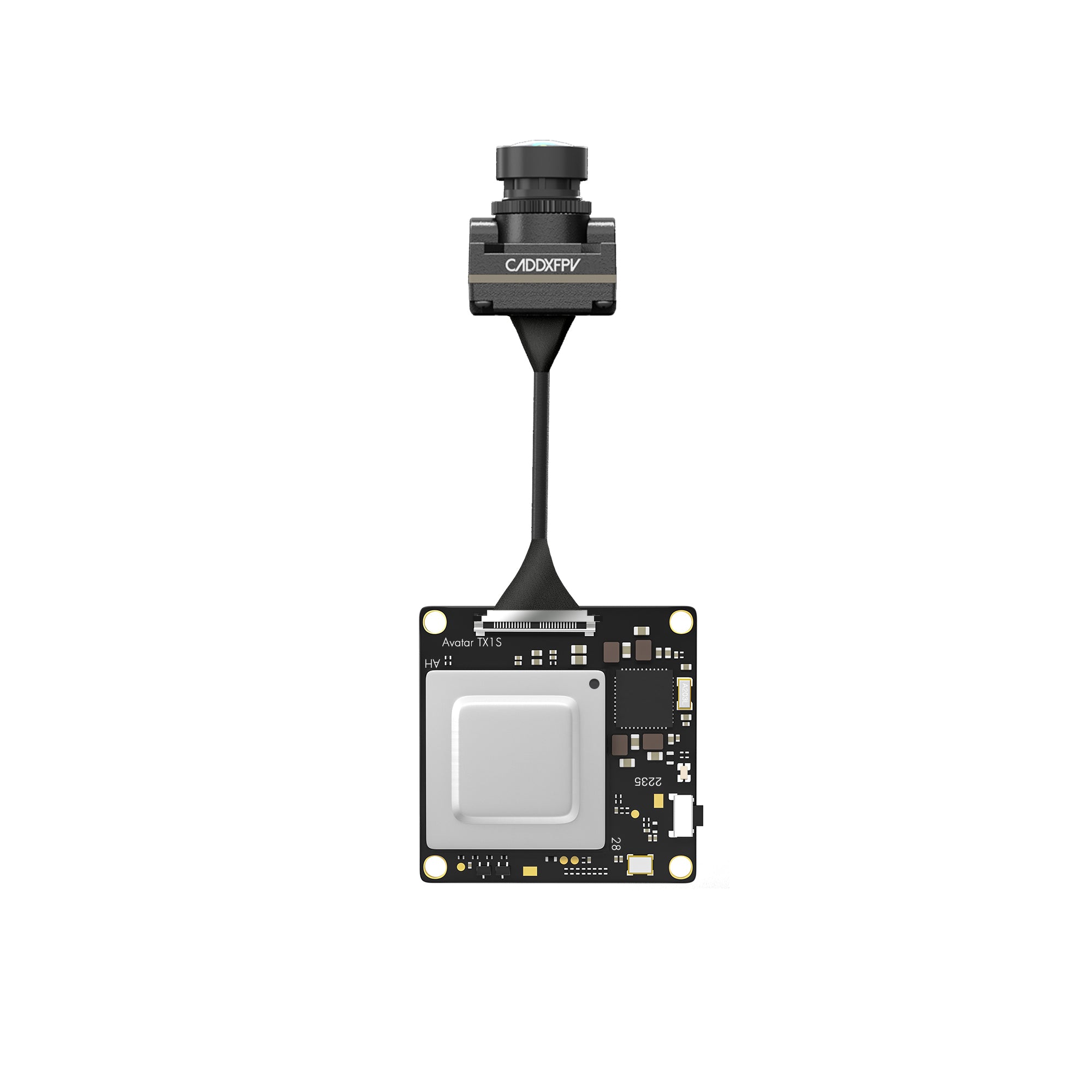

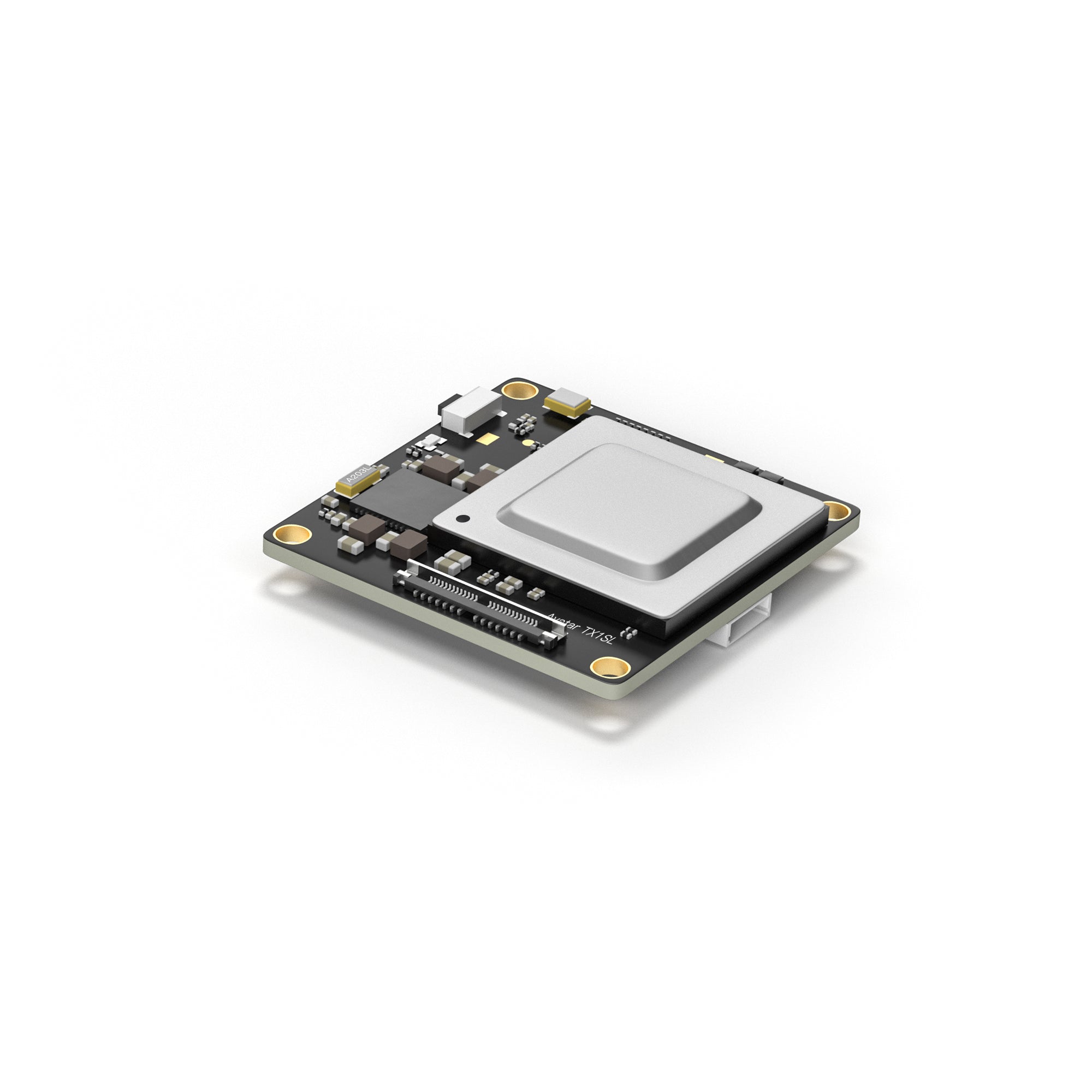

6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.
8G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.
Specification |
|
| Camera | |
| Model | Avatar nano |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| Weight | 3.5g |
| Dimensions | 14*14*17mm |
| Coaxial Cable | 55mm（default）/90mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |

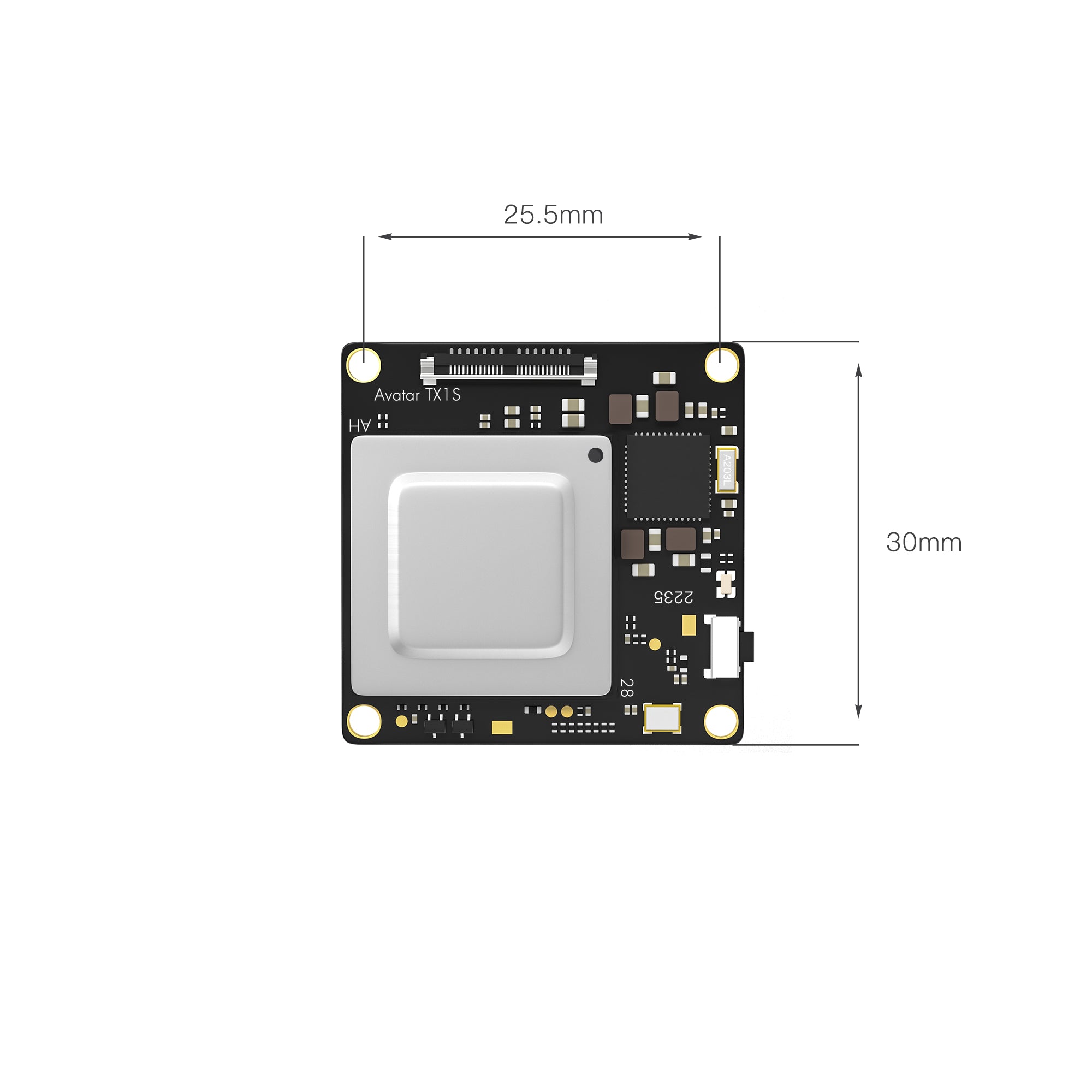

| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average latency 22ms |
| Antenna | IPEX |
| VTX Antenna | |
| Model | Avatar V2 antenna |
| Polarization | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ＜1.5 |
| Line Length | 90mm |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Dimension | D15mm*L105mm |
| Weight | 2g |

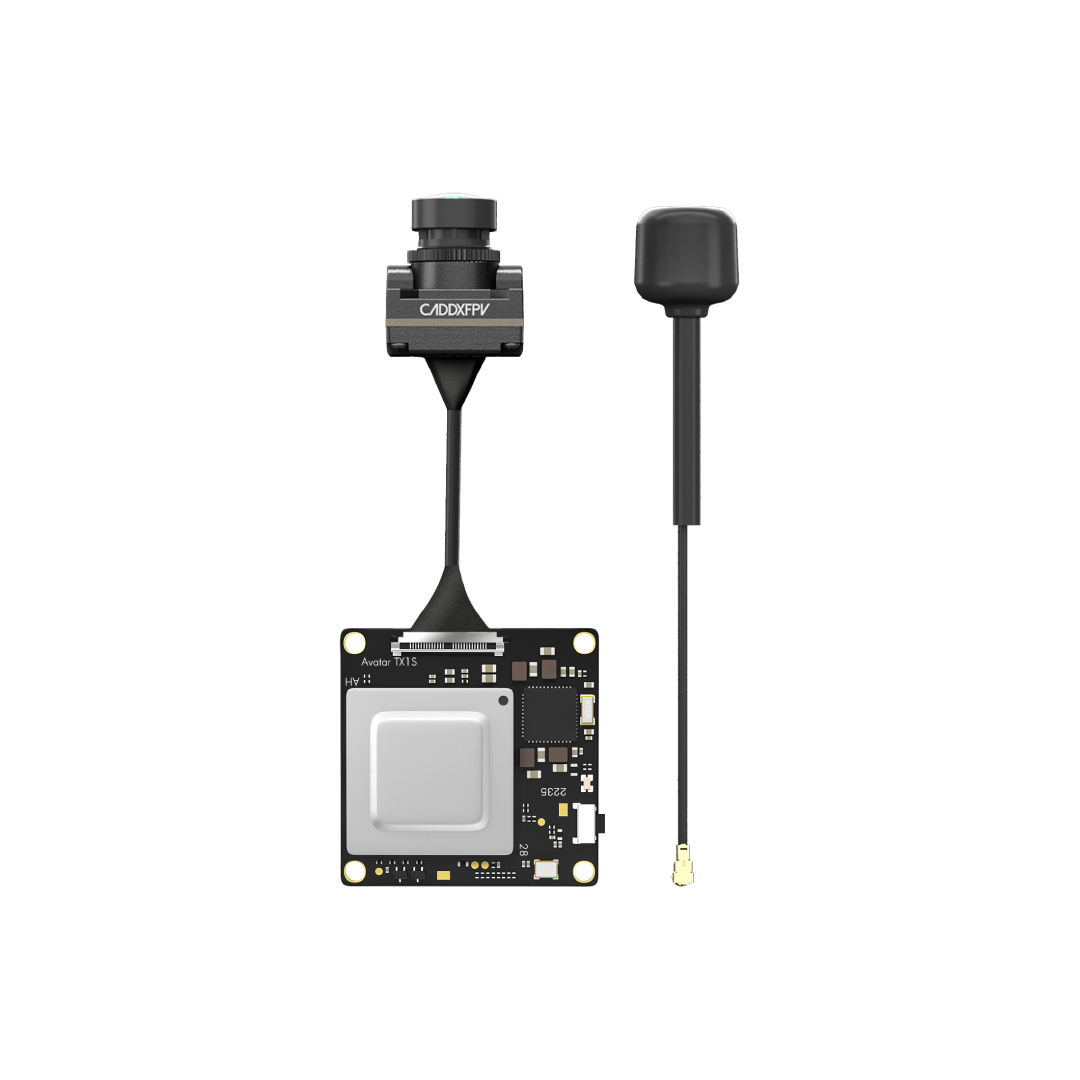

Product List
Avatar Mini 1S KIT
X 1

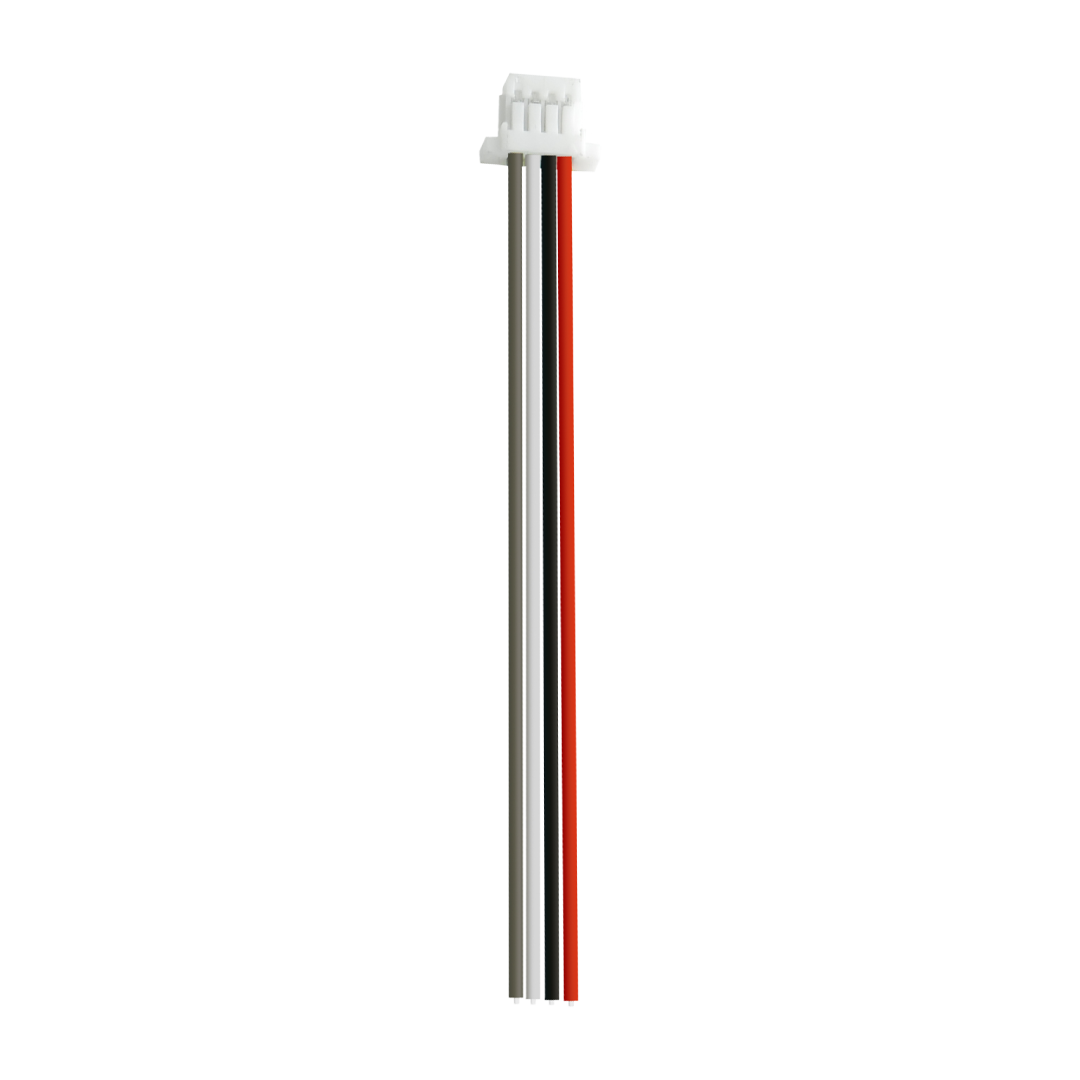

6 Pin Power Cable
X 1

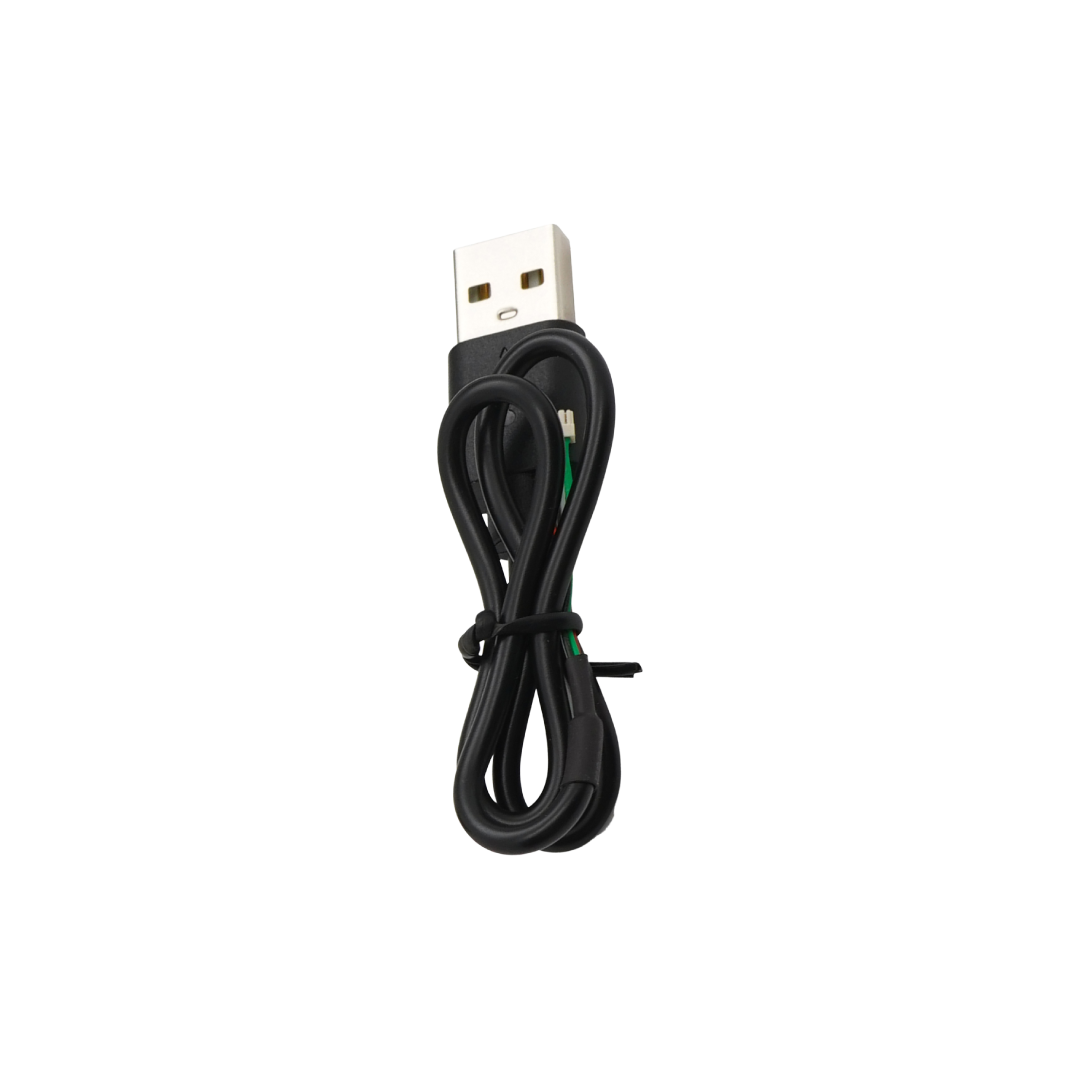

4 Pin USB Cable
X 1

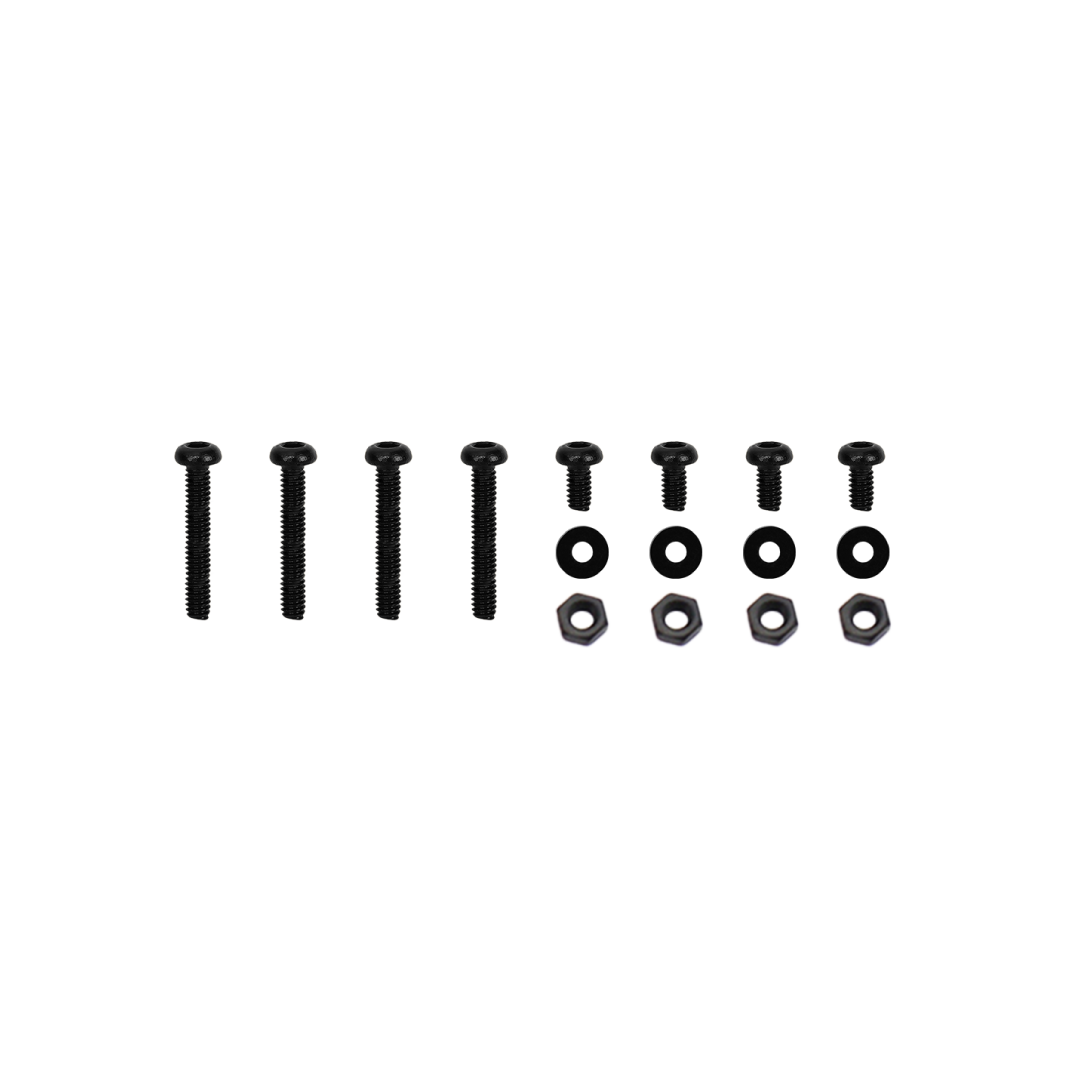

Screw Kit
X 1

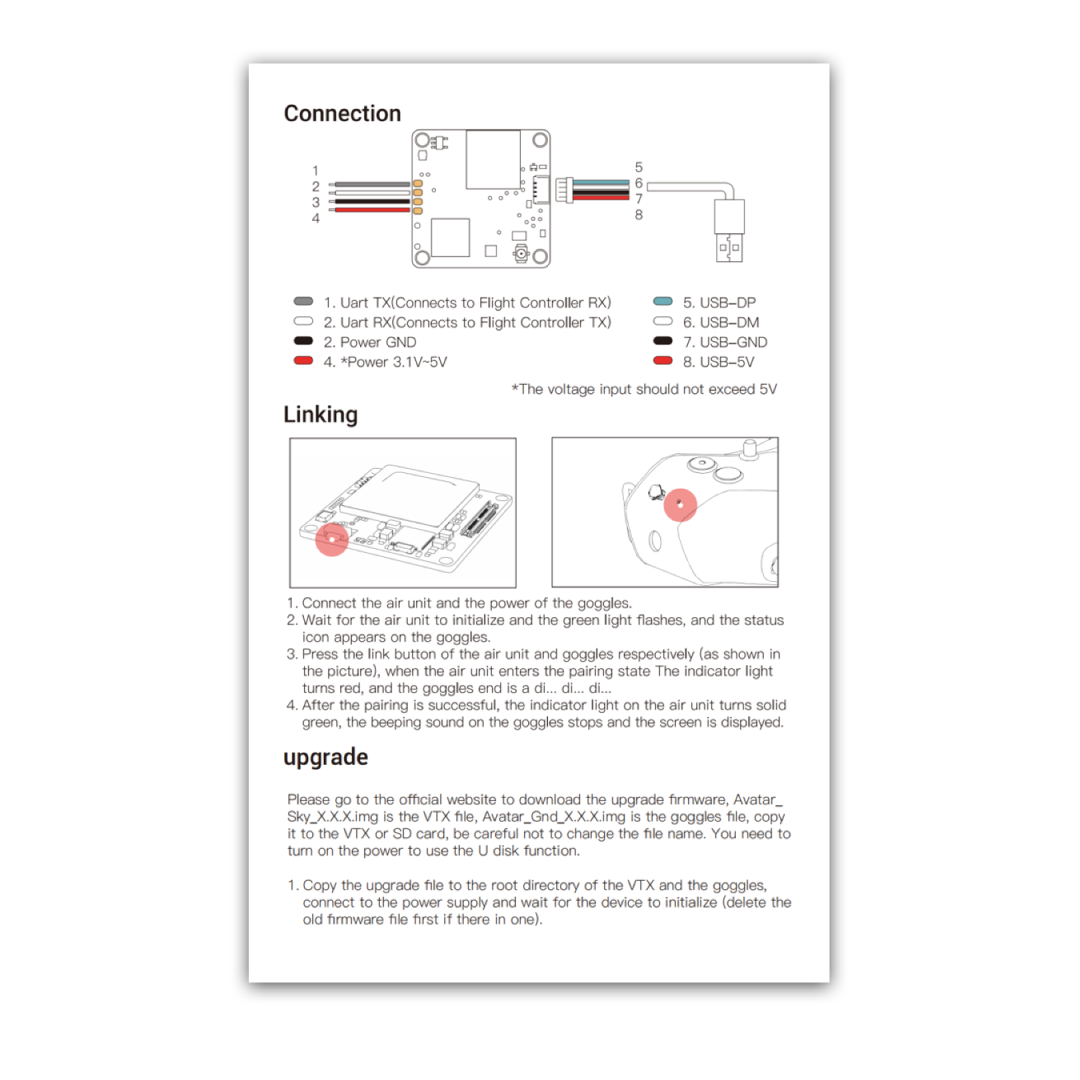

Product Manual
X 1
Product Package
X 1
