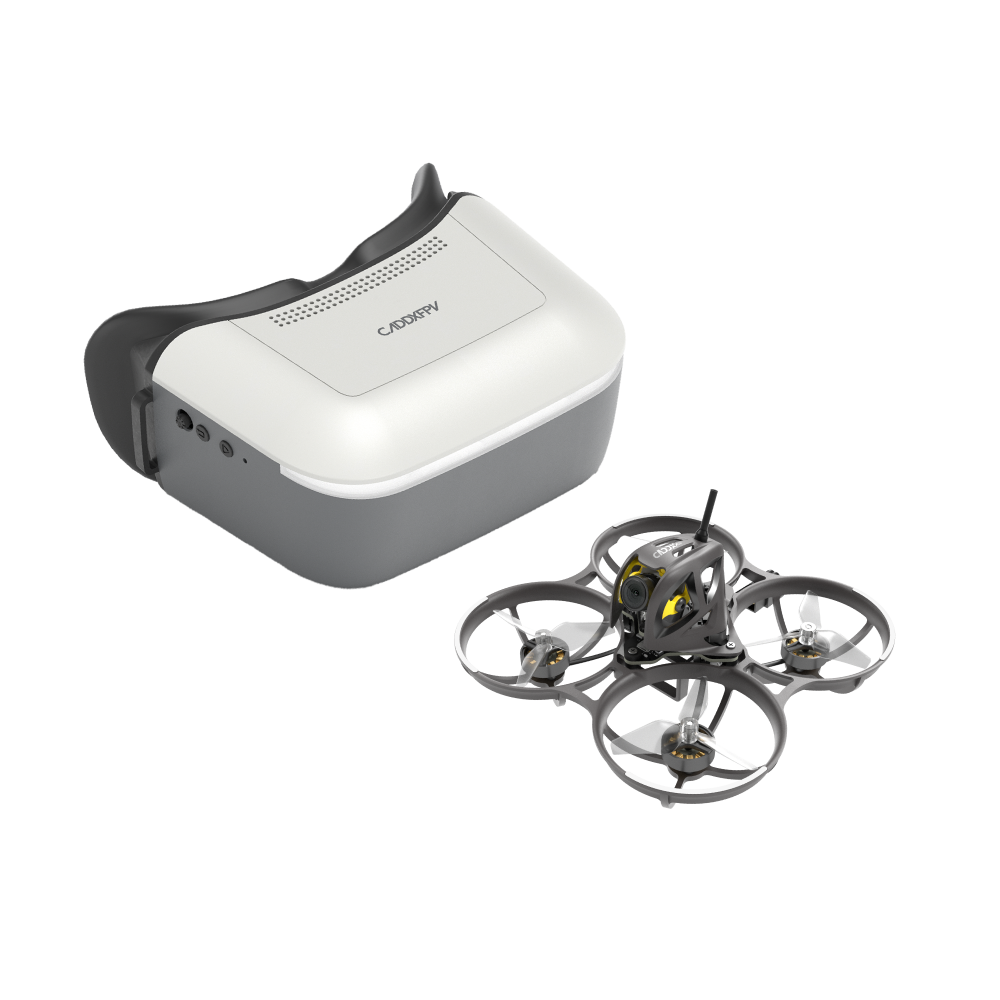

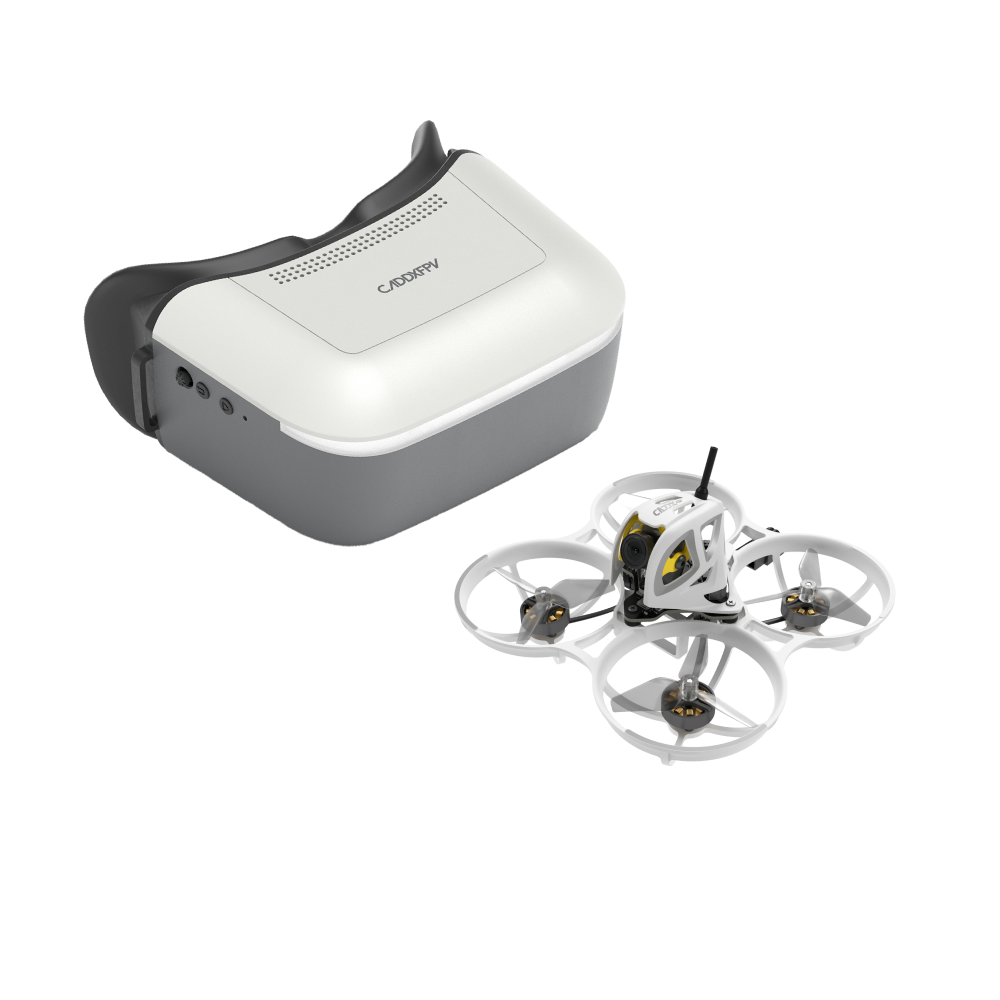

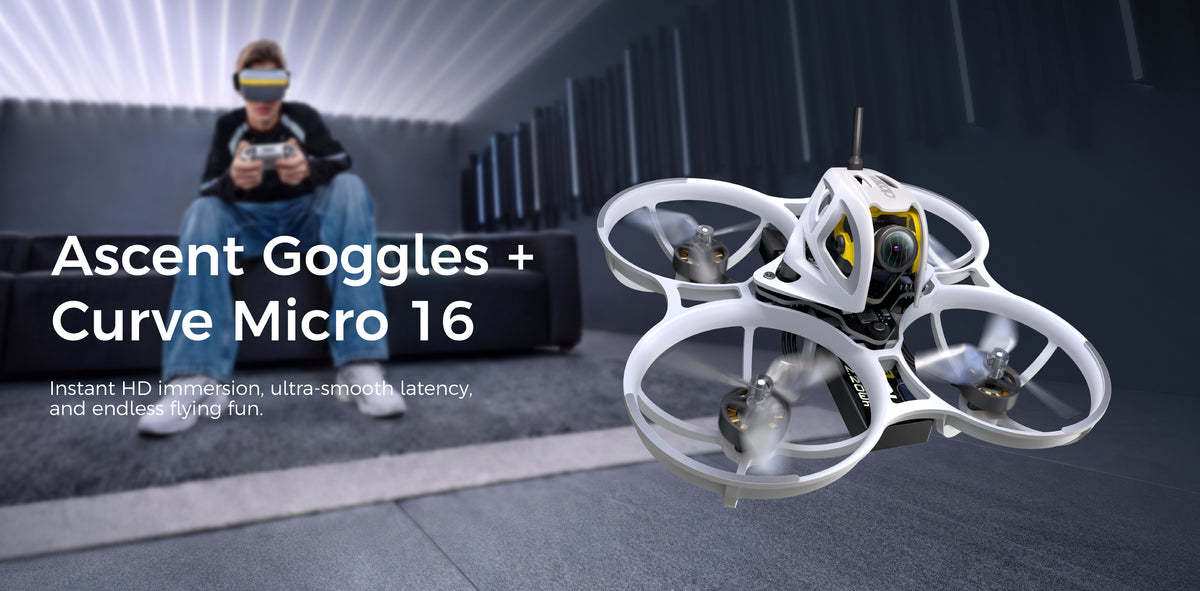

Walksnail Ascent Goggles + Curve Micro 16

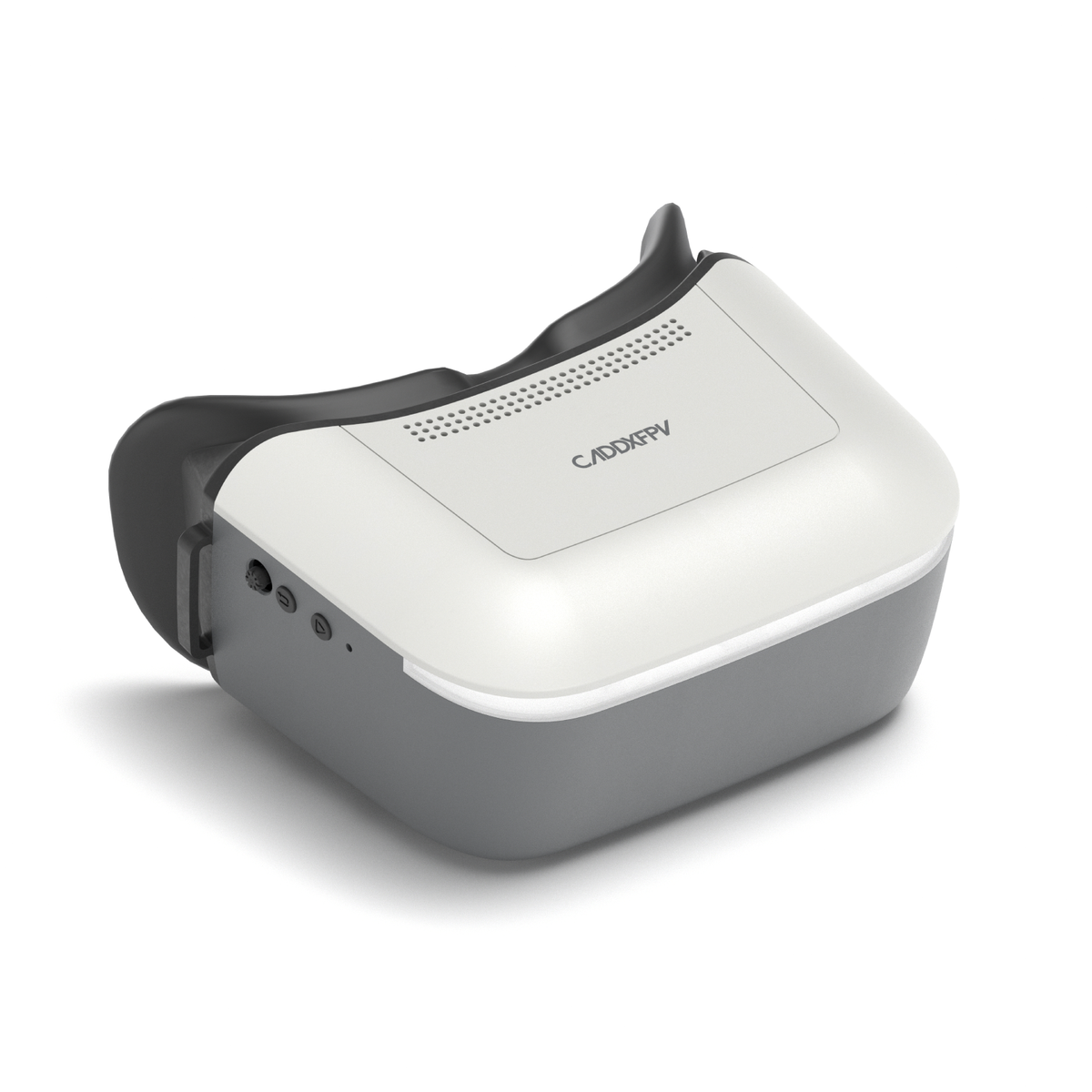

- Immersive 1080P HD Display: Equipped with a bright 4.5-inch 1080P screen and a wide 58° field of view, Ascent FPV Goggles deliver clear, distortion-free visuals with enhanced immersion. The simplified, lightweight design makes it an affordable entry point for beginners while still offering a crisp and engaging FPV experience
- Digital HD Transmission up to 4KM: Powered by the Ascent HD system, the goggles support stable long-range digital video transmission up to 4KM. Whether flying micro drones or exploring open areas, enjoy a reliable and low-interference signal

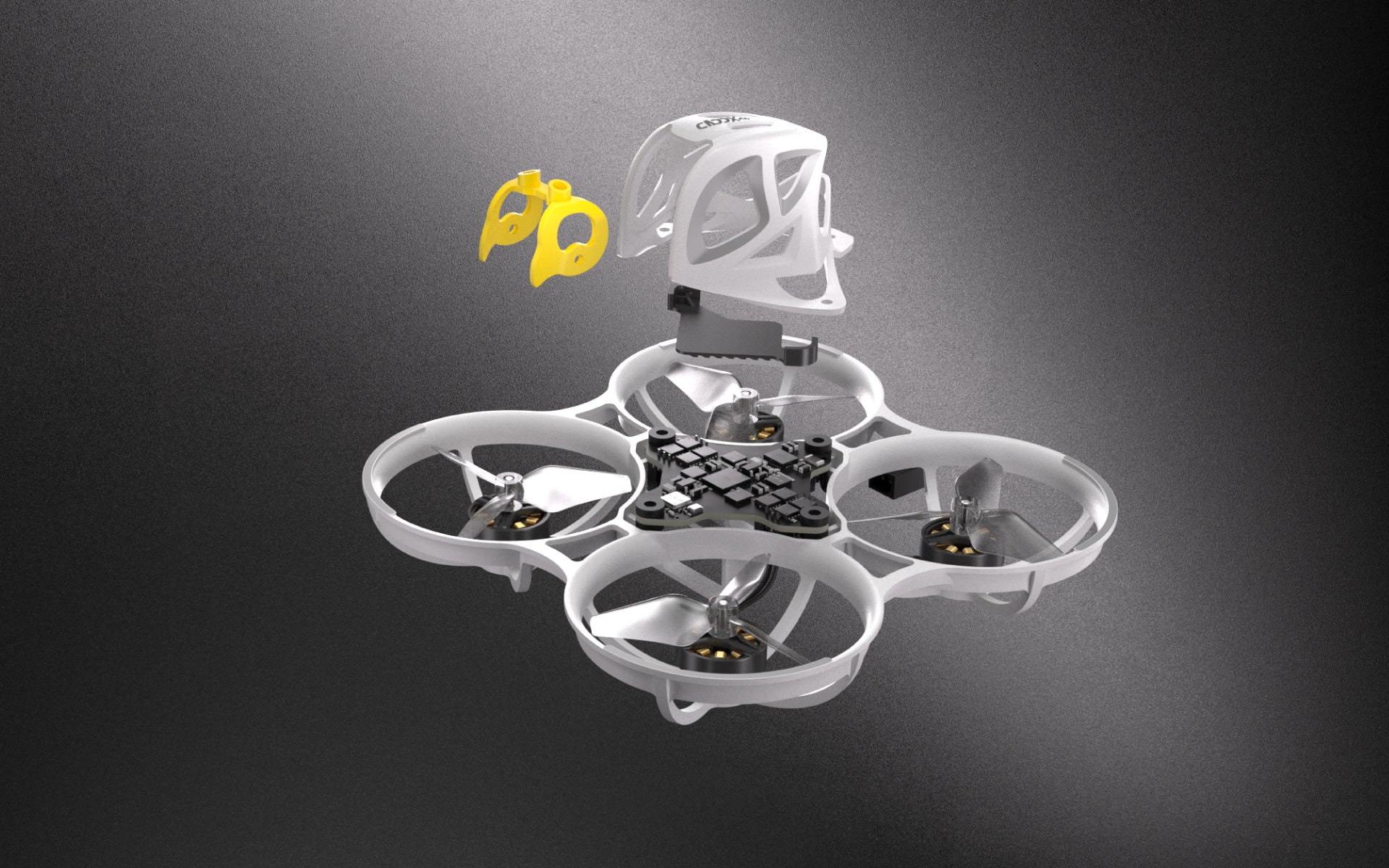

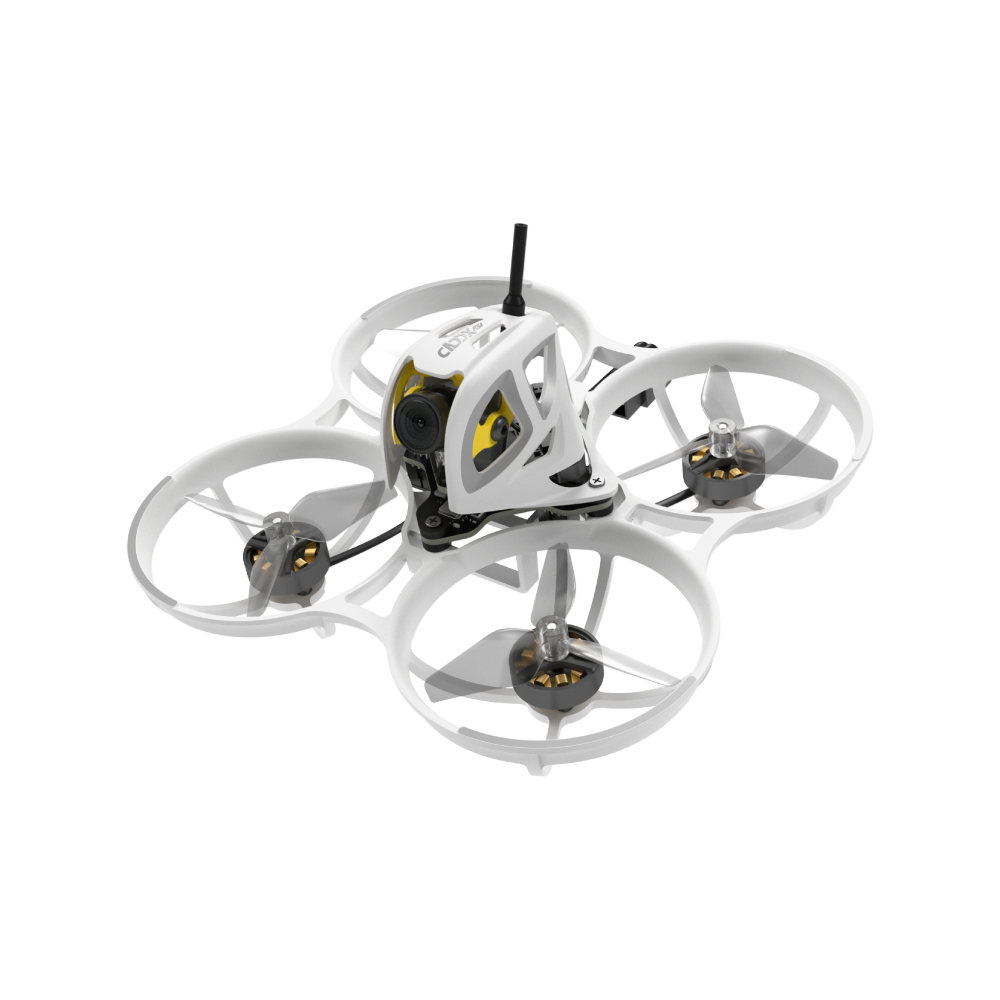

- Lightweight and Durable Design: The 48g one-piece injection-molded frame combines everyday durability with agile handling for indoor practice, backyard freestyle, and tight FPV lines.
- Immersive HD FPV Video: Up to 1080p/120fps video, 35ms latency, 500mW digital video transmission, and a 147° ultra-wide field of view deliver a smooth, immersive FPV experience. Live audio transmission supports receiver-side video and audio recording in 60fps modes.

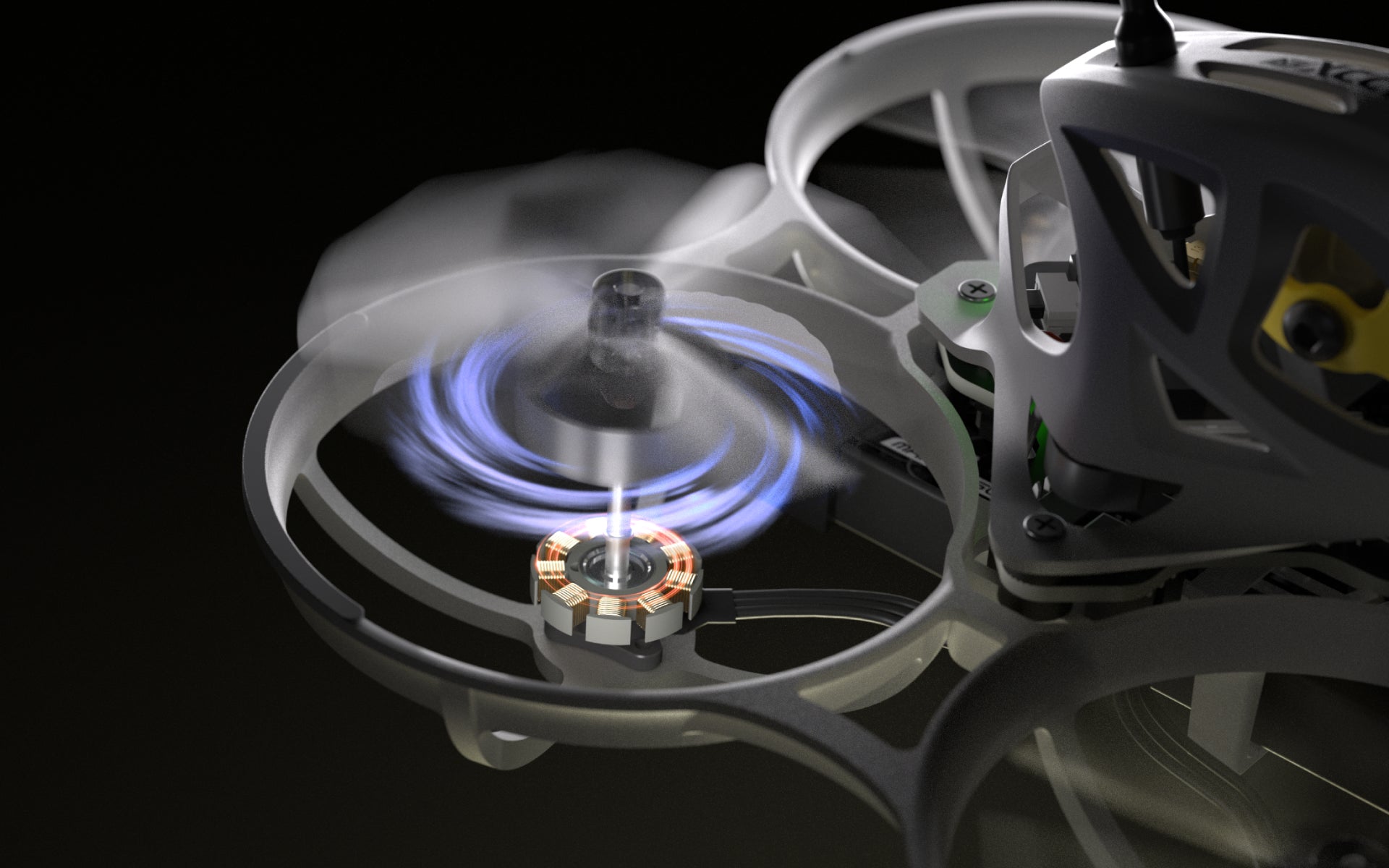

- Responsive Brushless Power: The 1102 24000KV brushless motors provide ample power and quick throttle response for fast climbs, sharp direction changes, and freestyle flying.

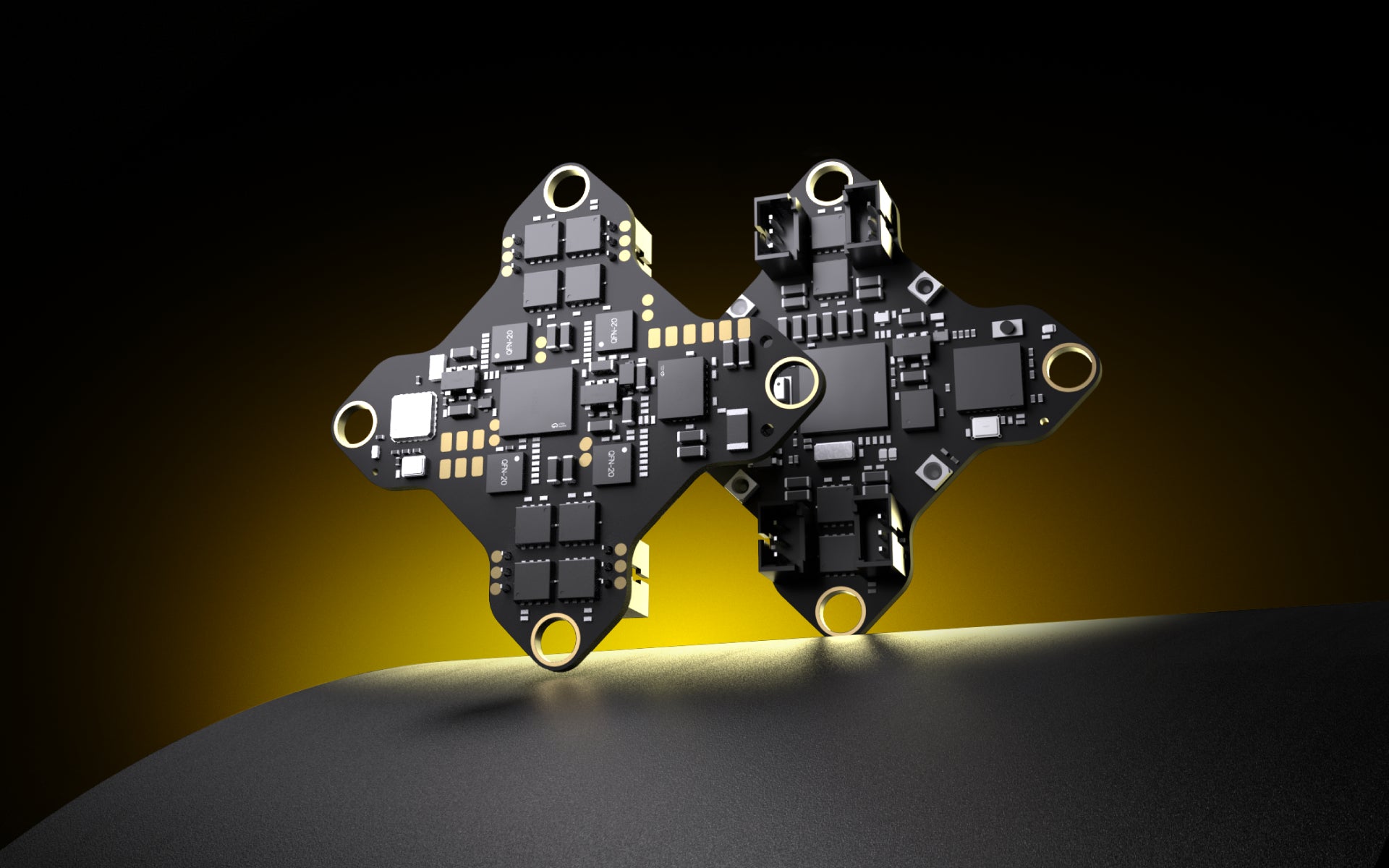

- Smooth and Stable Control: The AXON 1S AIO flight controller and high-precision ICM gyro provide smooth, predictable handling through tight spaces and technical FPV lines.
Built for Clear HD Transmission
Optimized for higher-quality data flow, bringing sharper visuals and a more stable HD FPV feed
30 Mbps - Other Brands
50 Mbps - Ascent Goggles
Immersive FPV
High-frame-rate HD video and real-time audio create a more immersive FPV experience
The built-in microphone transmits motor and ambient sounds in real time alongside the HD FPV feed
Specs
Ascent HD System
Ascent System
5.738.5-5.806.5GHz
FCC:<20dBm, CE:<14dBm, SRRC:<20dBm
DC5.5*2.1mm, Micro SD Card Slot
Type-C USB
4
6
6V–25.2V（2S–6S）
5V–12V
Max 25 Mbps
Average 32ms
LHCP
＞4km
1920*1080/60Hz
LCD
4.5 Inch
Support 256G
AXON 1S AIO V2.0
1S 12A
ELRS V3.5.0
1102
HQ 40mm 1.6X1X3
75mm
FAQ
Does the CURVE Micro 16 include a battery?

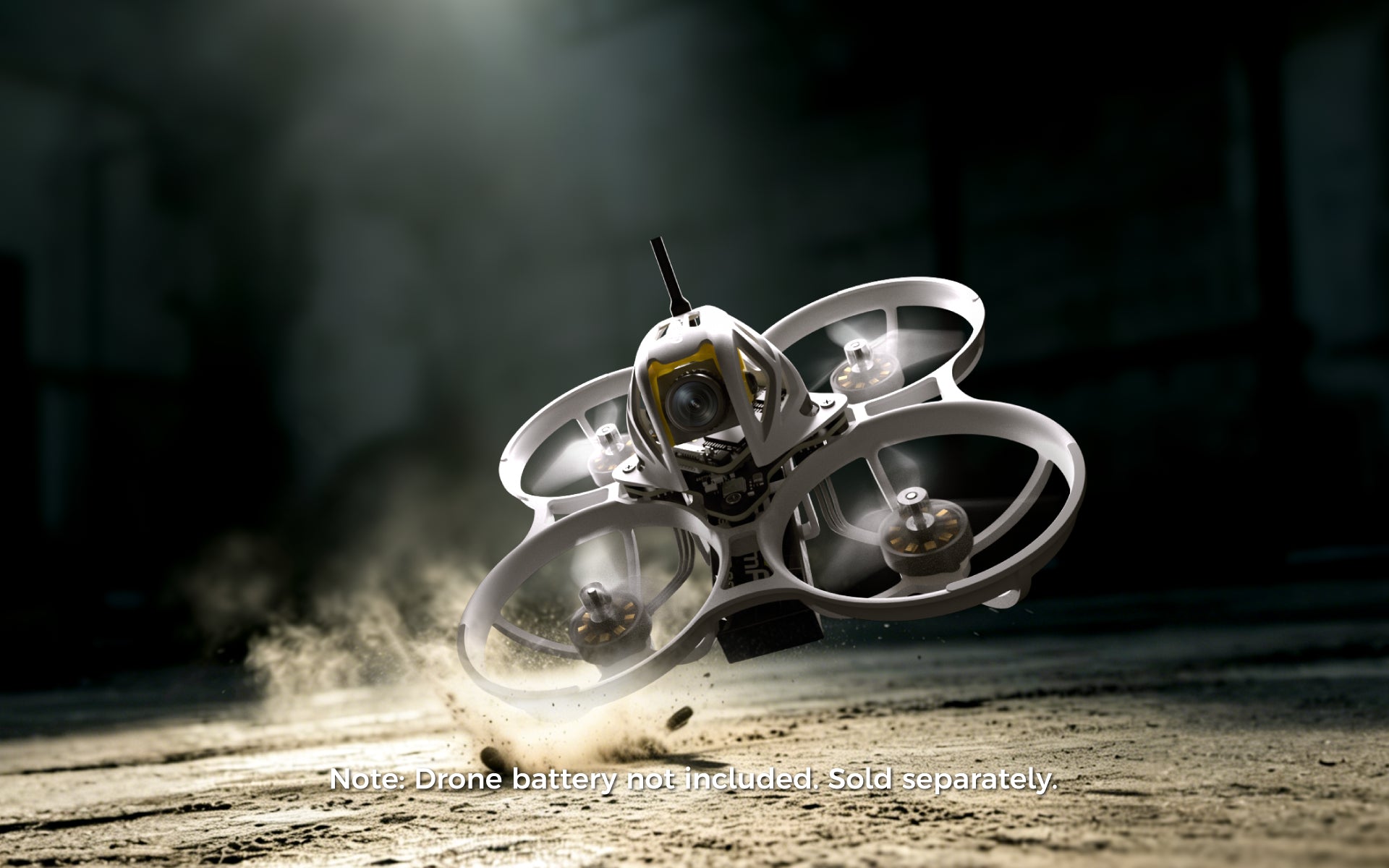

No. The drone battery is not included and must be purchased separately.
Does the Ascent Goggles include a battery?
No. The battery is not included and must be purchased separately.
What video modes does Curve Micro 16 support?
Curve Micro 16 supports 1080p and 720p digital HD FPV video at 60fps, 100fps, and 120fps.
Does Curve Micro 16 support real-time audio?
Yes. The built-in microphone transmits motor and ambient sounds in real time alongside the HD FPV feed.
Which batteries does it support, and how long can it fly?
The standard A30 connector supports 1S 580mAh and 680mAh LiPo batteries, providing approximately 5–7 minutes of flight time per pack under normal flying conditions. Batteries are sold separately, while a six-channel fast charger is included.
Can the VTX be replaced or upgraded?
Yes. Curve Micro 16 supports Walksnail Ascent Lite, Ascent Lite+, and Avatar 1S VTX modules, along with compatible third-party options. Firmware can be updated through Type-C using CADDX PC Tool.
What antennas does the receiver use?
The Ascent FPV VRX Pro features dual 2.8dBi antennas for broader reception coverage and a more stable digital FPV video link.
Are the Ascent Goggles compatible with the Avatar system?
No. These goggles are designed for the Walksnail Ascent system and only work with compatible Ascent air units.
